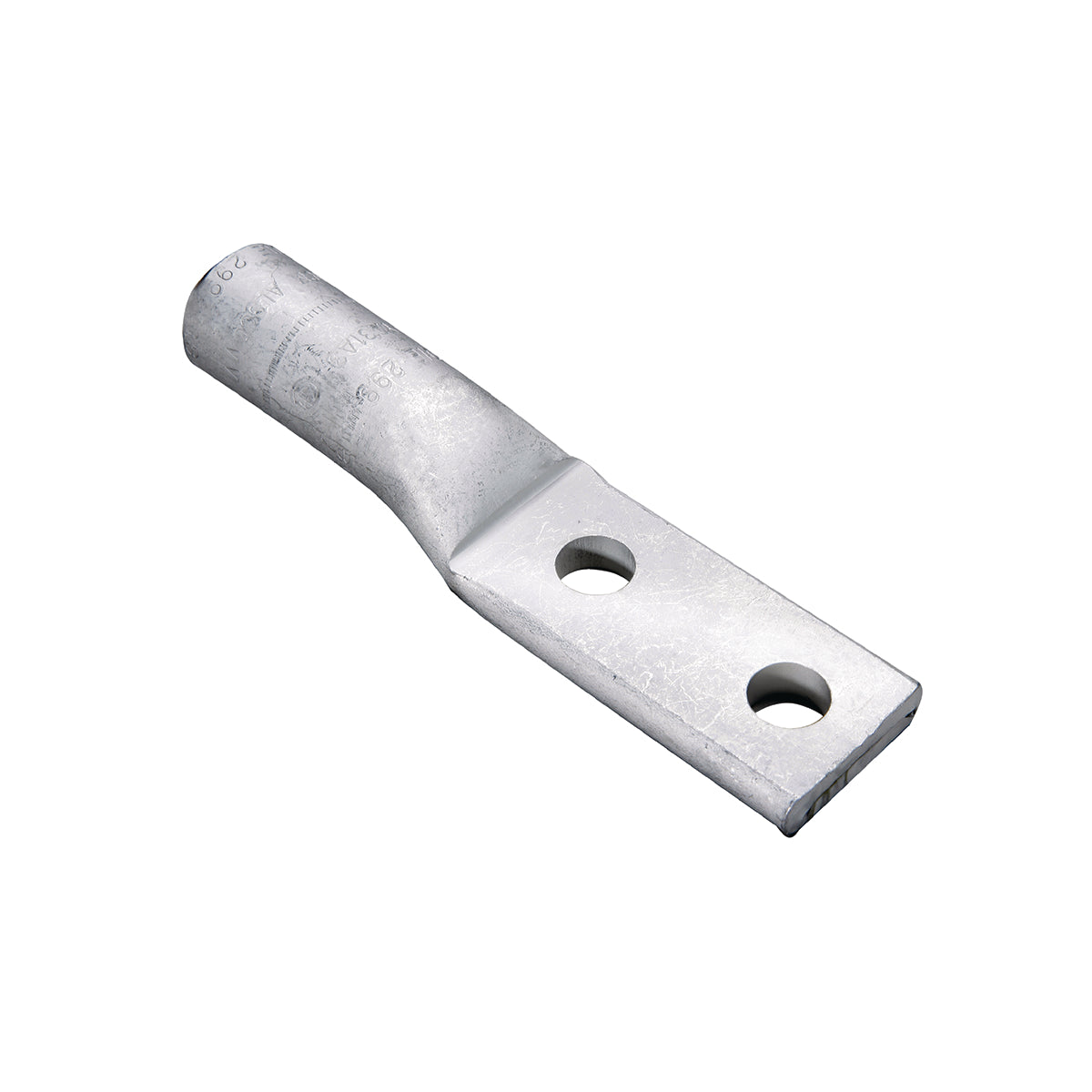

Hubbell YA27A5 BURNDY 3/0 AL 2-HOLE 1/2

Product Description

The Hubbell YA27A5 is a BURNDY compression lug designed for reliable electrical connections. This product is suitable for both aluminum and copper conductors. It features a two-hole design for easy installation and high conductivity. The connector comes factory prefilled with PENETROX oxide inhibiting compound to prevent oxidation and ensure a solid electrical connection.

• Compatible with 3/0 AWG stranded conductors
• Rated for 600 VAC to 35 kV
• Includes color coded end caps to inform proper die usage

Product Highlights

This lug is essential for applications requiring durability under various environmental conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181075400

Technical Specifications

• Type: 2-Hole
• Material: Aluminum
• Conductor Size: 3/0 AWG
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Overall Length: 3.02 in
• Tongue Size: 3.12 in L x 1.04 in W x 0.26 in THK
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 486A, UL 486B, Buy American Act Compliant
