Hubbell YA27A3 3/0AWG ALCU 1H LUG BURNDY

Product Description

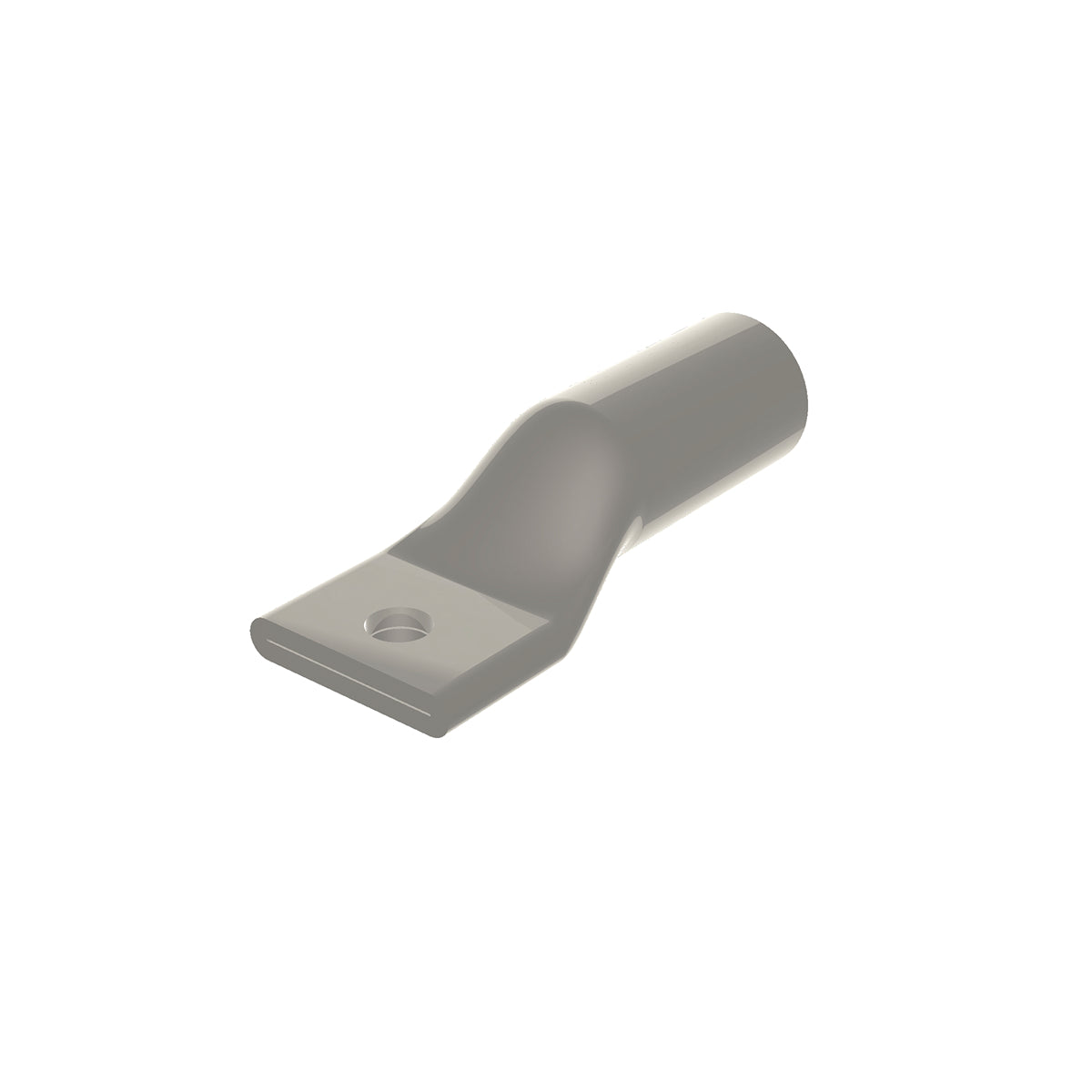

The Hubbell YA27A3 is a one-hole dual rated uninsulated compression lug. This product is suitable for aluminum and stranded copper conductors, rated for three aught AWG. The lug features a die code of four hundred sixty-seven and operates effectively at voltages from six hundred VAC to thirty-five kV. Its barrel is designed for heavy-duty applications, and it is suitable for various environments.

• Dual rated for aluminum and copper conductors
• Rated for use with three aught AWG wire
• Includes electro plated tin aluminum for enhanced durability

Product Highlights

The YA27A3 provides reliable electrical connections with minimized resistance and corrosion. Its barrel is prefilled with PENETROX to ensure long-lasting performance and electrical connectivity.

Product Information

Standard Information

• Application: For aluminum and copper conductors
• Material: Electro Plated Tin Aluminum

Technical Specifications

• Conductor Size: 3/0 AWG
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 deg C
• Overall Length: 3.27 in
• Barrel Size: 1.31 in L
• Tongue Size: 1.37 in L x 1.04 in W x 0.26 in THK
• Stud Size: 1/2 in
• Standards: ARRA Compliant, BAA Compliant, RoHS Compliant, UL Certified
