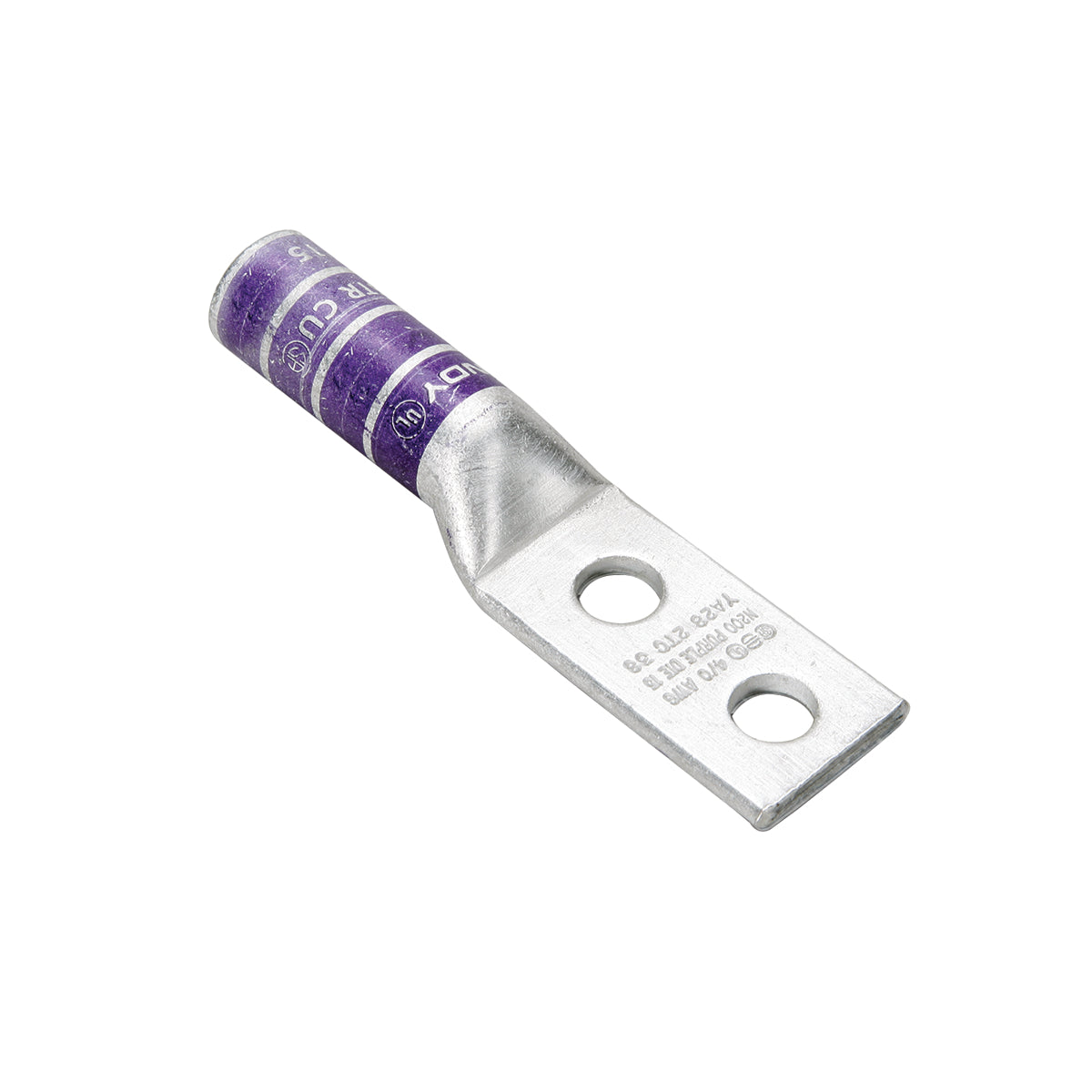

Hubbell YA272N YA-2N 2-Hole Compression Lug 3/0 AWG 1/2 in Stud

Product Description

The Hubbell YA272N is a two-hole compression lug designed for stranded copper conductor sizes of three hundred AWG. This compression lug supports electrical connections that require a strong, reliable joint. It is suitable for applications within voltages ranging from six hundred VAC to thirty-five kV. It features a standard tongue design and is manufactured from tin-plated copper for enhanced durability.

• Suitable for stranded copper conductors
• Can withstand voltage ratings up to 35 kV
• Includes compatibility for various crimping tools

Product Highlights

This compression lug meets various standards for electrical safety and performance, ensuring a secure and effective connection.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA272N

Technical Specifications

• Application: For code conductor
• Barrel Size: 1-1/2 in L
• Color: Orange
• Conductor Size: 3/0 AWG
• Conductor Type: Stranded Copper
• Die Code: 14
• Material: Tin Plated Copper
• Overall Length: 5.01 in
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.91 in W x 0.13 in THK
• Voltage Rating: 600 VAC to 35 kV
• Tongue Type: Standard/Straight
• Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL468A/468B, CSA Certified
