Product Description

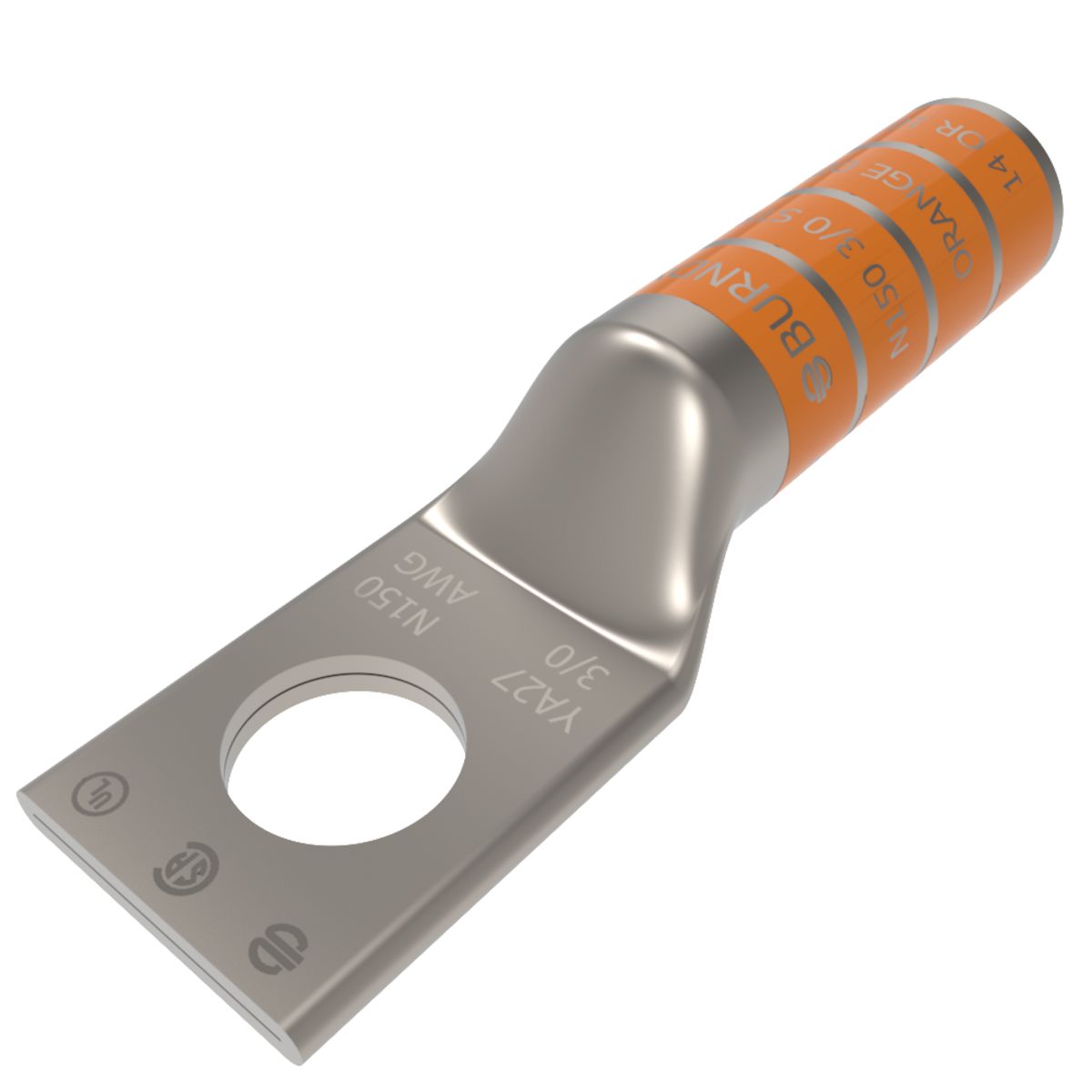

The Hubbell YA27 is a compression lug designed for connecting 3/0 AWG stranded copper conductors. This uninsulated compression lug provides a reliable connection in electrical applications.
- Compatible with 3/0 AWG stranded copper conductors
- Rated for voltage up to 35 kV
- Features a 1/2 inch stud hole
Product Highlights
This product is ideal for various electrical systems requiring a secure and efficient connection.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: YA27
Technical Specifications
-
Application: For code conductor
-
Barrel Size: 1-1/2 inches L
-
Color: Orange
-
Conductor Size: 3/0 AWG
-
Conductor Type: Stranded Copper
-
Die Code: 14
-
Material: Tin Plated Copper
-
Overall Length: 3.06 inches
-
Series: YA Series
-
Pad Size: 0.91 inches
-
Voltage Rating: 600 VAC to 35 kV
-
Temperature Rating: 90 degrees C
-
Tongue Size: 0.91 inches W x 0.13 inches THK
-
Tongue Type: Standard
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 468A/468B, CSA Certified
-
Stud Size: 1/2 inch
-
Type: 1-Hole Uninsulated
