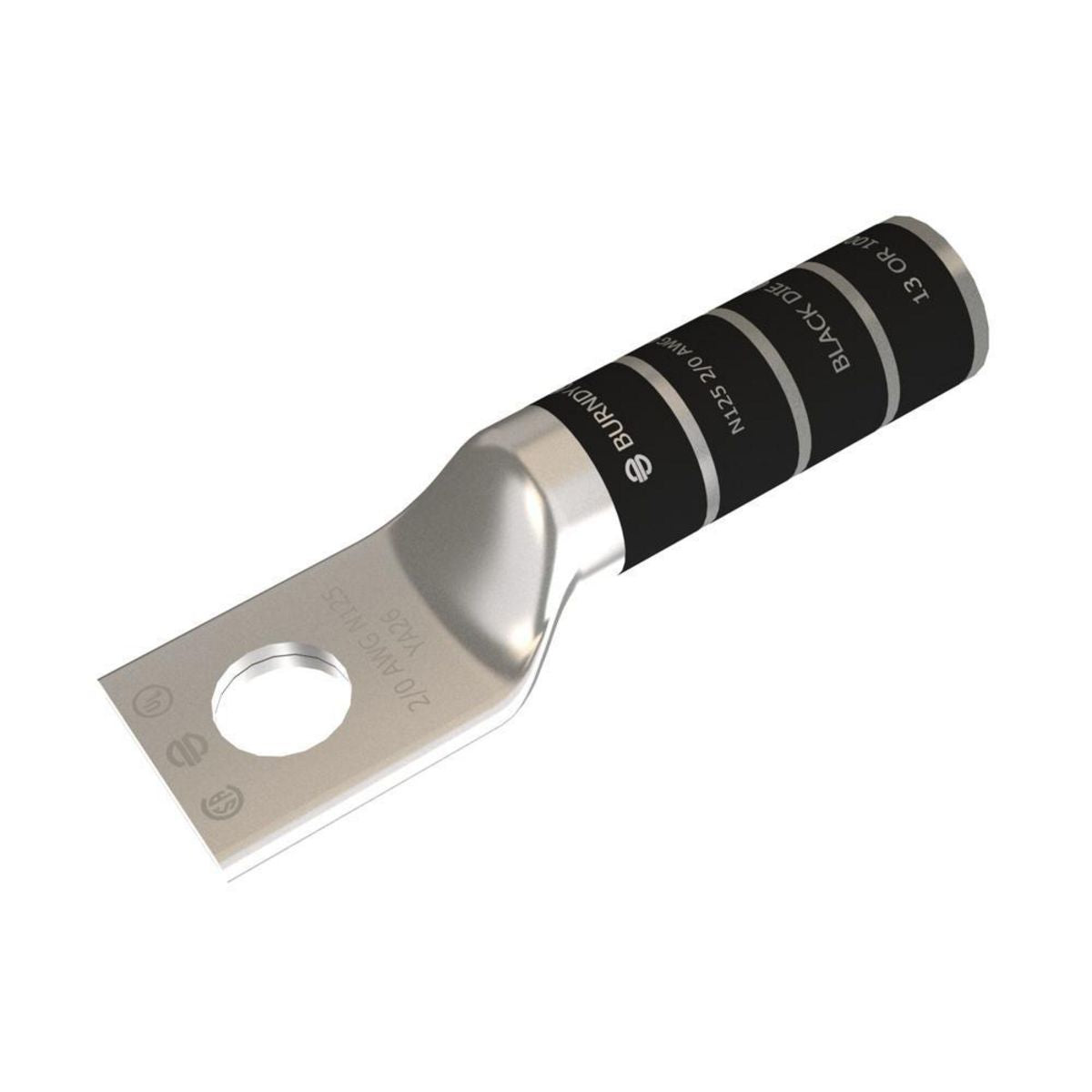

Hubbell YA26N BURNDY 1 HOLE COMPRESSION LUG 2/0 AWG, 1/2 STUD HOLE, FOR COPPER 35KV RATED

Product Description

The Hubbell YA26N is a BURNDY HYLUG series 1-hole uninsulated compression lug designed for a stranded copper conductor with a size of two/aught AWG. This lug is rated for voltages up to thirty-five kilovolts and can handle temperatures up to ninety degrees Celsius. It features a half-inch stud hole and includes tin-plated copper for enhanced conductivity.

• Voltage rating: 600 VAC to 35 kV
• Easy to install for permanent connections
• Listed by UL and certified by CSA

Product Highlights

This compression lug is suitable for various electrical connections in heavy-duty industrial, utility, commercial, and telecommunications applications. The HYLUG design allows for easy cable preparation for fast installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181001889

Technical Specifications

• Application: For code conductor
• Barrel Size: 0.56 inches OD x 1.5 inches L
• Conductor Size: 2/0 AWG
• Stud Size: 1/2 inches
• Voltage Rating: 600 VAC to 35 kV
• Temperature Rating: 90 degrees Celsius
• Material: Tin plated copper
• Overall Length: 3.21 inches
