HUBBELL YA26L6BOX Copper Compression Lug 2/0 AWG 1/2 Inch Stud One Hole

Product Description

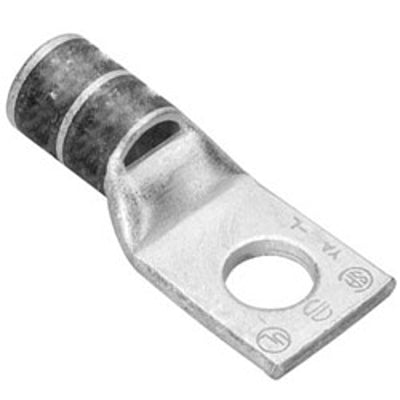

The HUBBELL YA26L6BOX is designed for terminating 2/0 AWG conductors. This copper compression lug has a one-hole configuration with a stud size of 1/2 inch. The standard barrel of the lug comes with an inspection window and features an internal chamfer at the wire entry, allowing for easier wire insertion. It is electro-tin plated to help prevent galvanic corrosion and withstand harsh environments. The lug is also marked for easy identification.

• Designed for 2/0 AWG copper conductors.
• Includes an inspection window.
• Electro-tin plating provides corrosion resistance.

Product Highlights

This lug is used for reliable wire terminations in various applications.

Product Information

Standard Information

• MPN: YA26L6BOX
• Wire Size: 2/0 AWG

Technical Specifications

• Stud Size: 1/2 Inch
• Number of Holes: 1
• Lug Material: Copper
• Barrel Type: Standard
• Plating: Electro-Tin Plated
• Voltage Rating: 600-35kV Volts
• Color Code: Black
• Standards: UL Listed, UL468A-468B, CSA Certified, RoHS Compliant
• Application: Wire Termination
• Length: 2.44 inches
• Width: 0.83 inches
• Height: 0.56 inches
