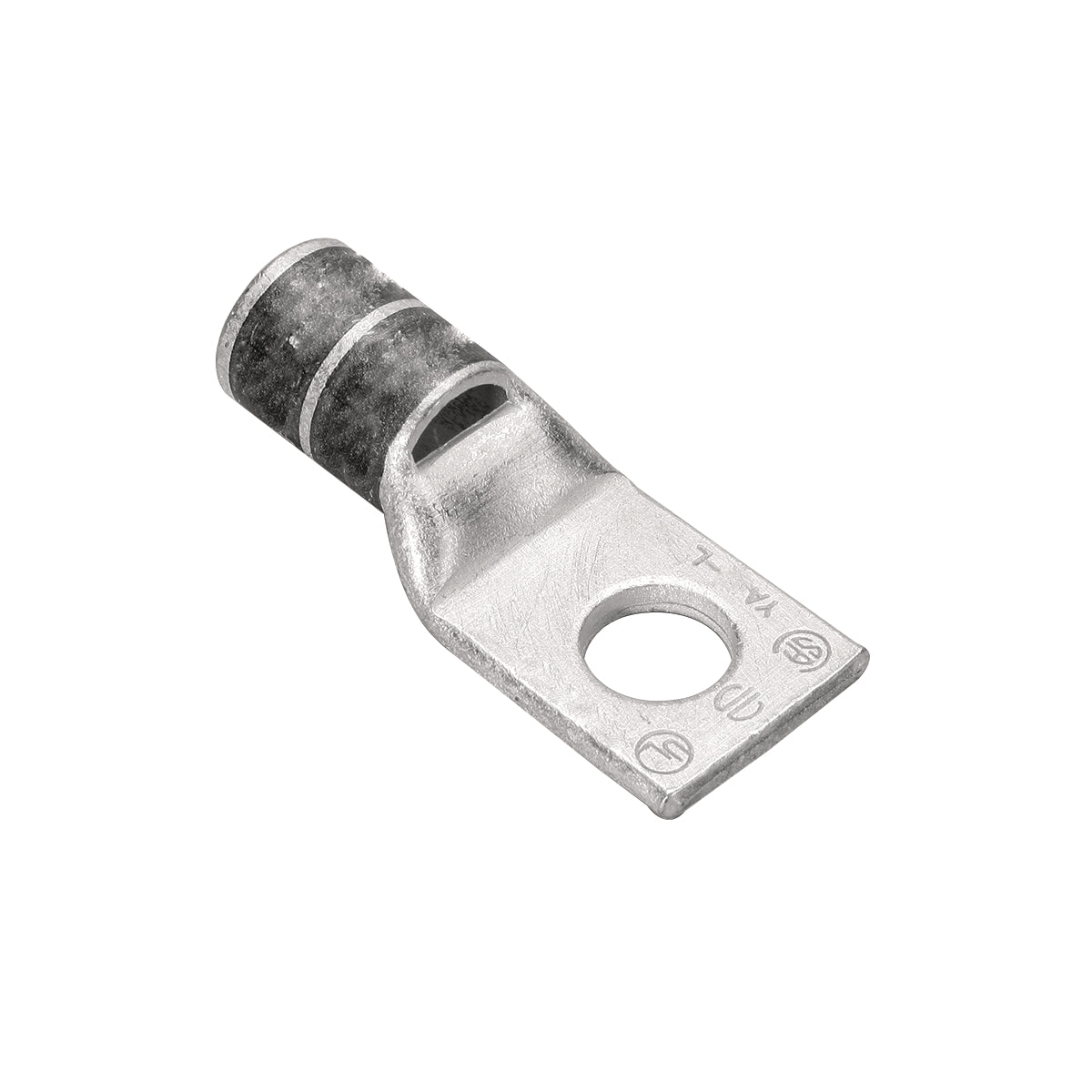

Hubbell YA26L2 BURNDY 2/0 CU 1-HOLE SHORT 1/4

Product Description

The Hubbell YA26L2 is a BURNDY Compression Connector Lug designed for secure electrical connections. It is suitable for stranded copper conductors and features a one-hole design, making it versatile for many applications.

• Capacity for stranded copper conductor of 2/0 AWG
• Voltage rating from six hundred VAC to thirty-five kV
• Compatible with one-fourth inch stud size

Product Highlights

This connector lug is ideal for heavy-duty industrial, utility, and commercial applications that require reliable and efficient connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA26L2

Technical Specifications

• Series: YA-L
• Application: For code conductor and wire termination
• Barrel Size: 0.56 inches OD x 0.94 inches L
• Conductor Size: 2/0 AWG
• Overall Length: 1.94 inches
• Temperature Rating: 90 degrees C
• Standards/Approvals: UL certified, CSA certified, RoHS compliant
• Die Code: 13
• Tongue Size: 0.83 inches W x 0.12 inches THK
