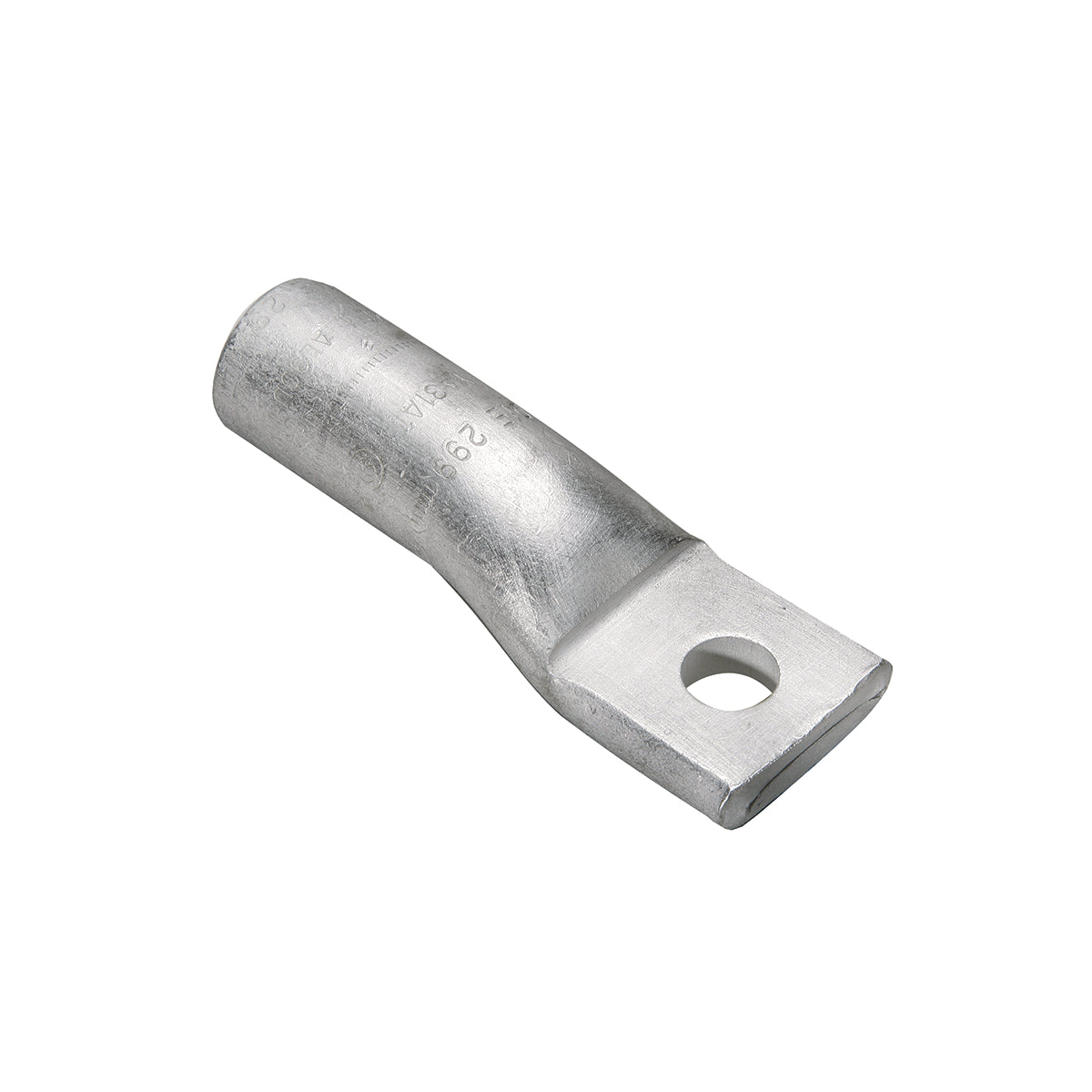

Hubbell YA26A1 YA-A 1-Hole Uninsulated Compression Lug, 2/0 AWG Aluminum/Copper Conductor

Product Description

The Hubbell YA26A1 is a 1-Hole Uninsulated Compression Lug designed for secure connections of 2/0 AWG Aluminum and Stranded Copper conductors. This lug features a die code of 297 and is rated for voltages from six hundred volts to thirty-five kilovolts.

• Manufactured with high conductivity aluminum for low resistance
• Prefilled with PENETROX compound to ensure conductivity
• Suitable for heavy-duty applications and compliant with various standards

Product Highlights

This compression lug is ideal for a wide range of electrical applications where reliability and performance are crucial.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78181075370

Technical Specifications

• Application: For aluminum and copper conductors from #12 solid to 2000 kcmil
• Overall Length: 3.03 inches
• Barrel Size: 1.17 inches
• Stud Size: 1/2 inch
• Temperature Rating: 90 degrees Celsius
• Voltage Rating: 600 VAC to 35 kV
• Color: Olive
• Material: Electro Plated Tin Aluminum
