Product Description

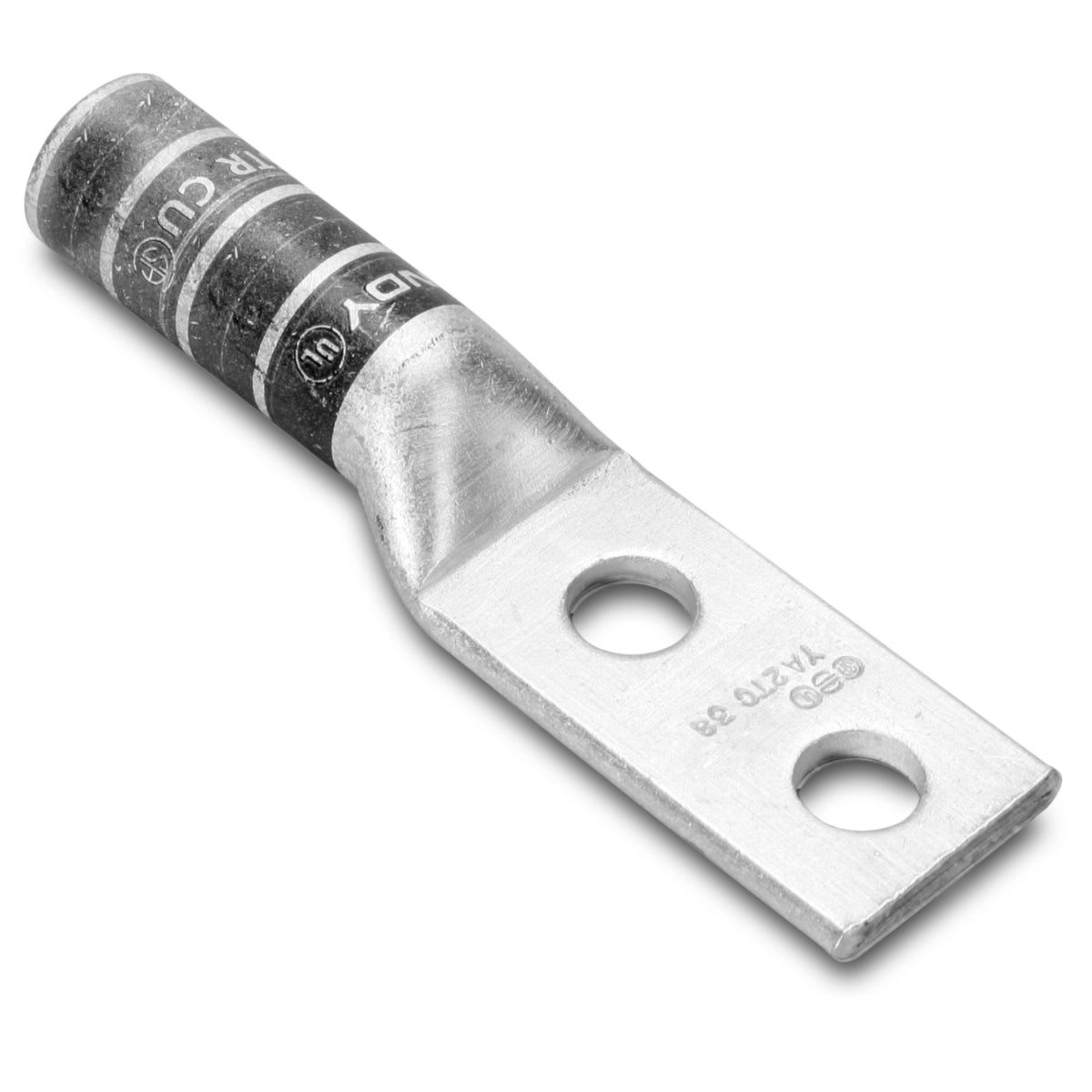

The Hubbell YA262TC38 is a BURNDY HYLUG compression lug designed for use with 2/0 AWG stranded copper conductors. This compression lug features a straightforward two-hole design, making it suitable for a variety of applications. It has a die code of 13 and can handle voltages ranging from six hundred volts alternating current to thirty-five kilovolts. The lug includes a three-eighths-inch stud size and is made from tin plated copper for durability.
- 600 VAC to 35 kV voltage rating
- 0.83 inches pad size
- 3.78 inches overall length
Product Highlights
The YA262TC38 is compliant with several standards, ensuring reliability in various conditions.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: YA262TC38
Technical Specifications
-
Application: For code conductor
-
Color: Black
-
Conductor Size: 2/0 AWG
-
Conductor Type: Stranded Copper
-
Die Code: 13
-
Material: Tin Plated Copper
-
Overall Length: 3.78 inches
-
Series: YA-2TC
-
Pad Size: 0.83 inches
-
Hole Spacing: 1 inch
-
Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 468A/468B, CSA Certified
-
Stud Size: 3/8 inch
-
Temperature Rating: 90 degrees C
-
Tongue Size: 0.83 inches W x 0.12 inches THK
-
Tongue Type: Standard
-
Type: 2-Hole
-
Voltage Rating: 600 VAC to 35 kV
