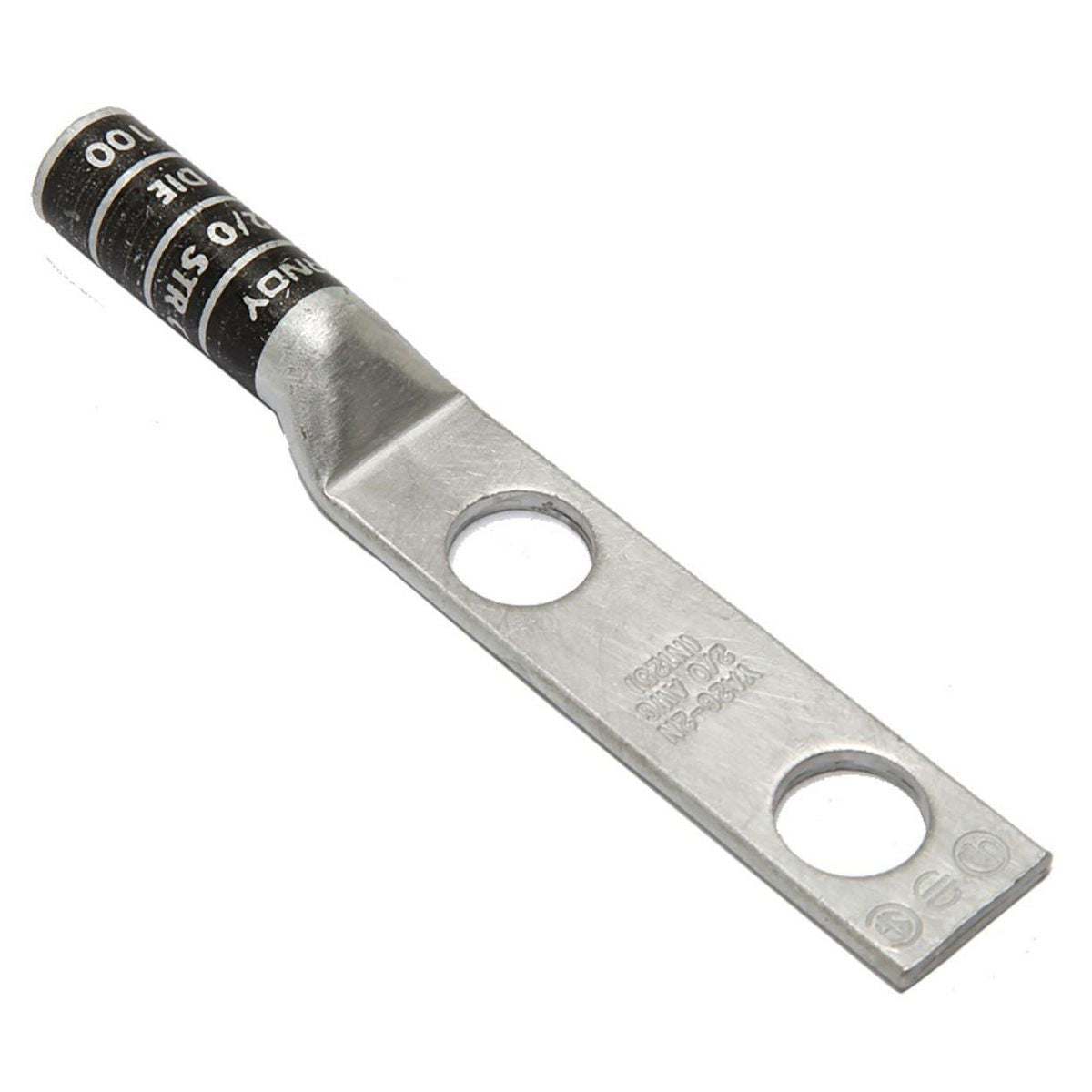

Hubbell YA262N YA26-2N BUR 2 Hole Comp Lug CU 2/0AWG 1/2 Stud Holes

Product Description

The Hubbell YA262N is a reliable compression lug designed for 2/0 AWG stranded copper conductors. This product is part of the BURNDY HYLUG series, known for its durability and performance. It is rated for 600 volts to 35 kilovolts and features a stud hole size of one-half inch.

• Two-hole design for secure connections
• Made from tin plated copper for corrosion resistance
• Suitable for a variety of electrical applications

Product Highlights

This compression lug is designed for use with code conductors and has a long barrel for reliable connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: YA262N

Technical Specifications

• Application: For code conductor
• Barrel Size: 1-1/2 in L
• Color: Black
• Conductor Size: 2/0 AWG
• Conductor Type: Stranded Copper
• Die Code: 13
• Material: Tin Plated Copper
• Overall Length: 4.97 in
• Series: YA-2N
• Specifications: 0.83 in Pad, 1-3/4 in Hole Spacing
• Standards/Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 468A/468B, CSA Certified
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.83 in W x 0.12 in THK
• Tongue Type: Standard
• Type: 2-Hole
• Voltage Rating: 600 VAC to 35 kV
