Product Description

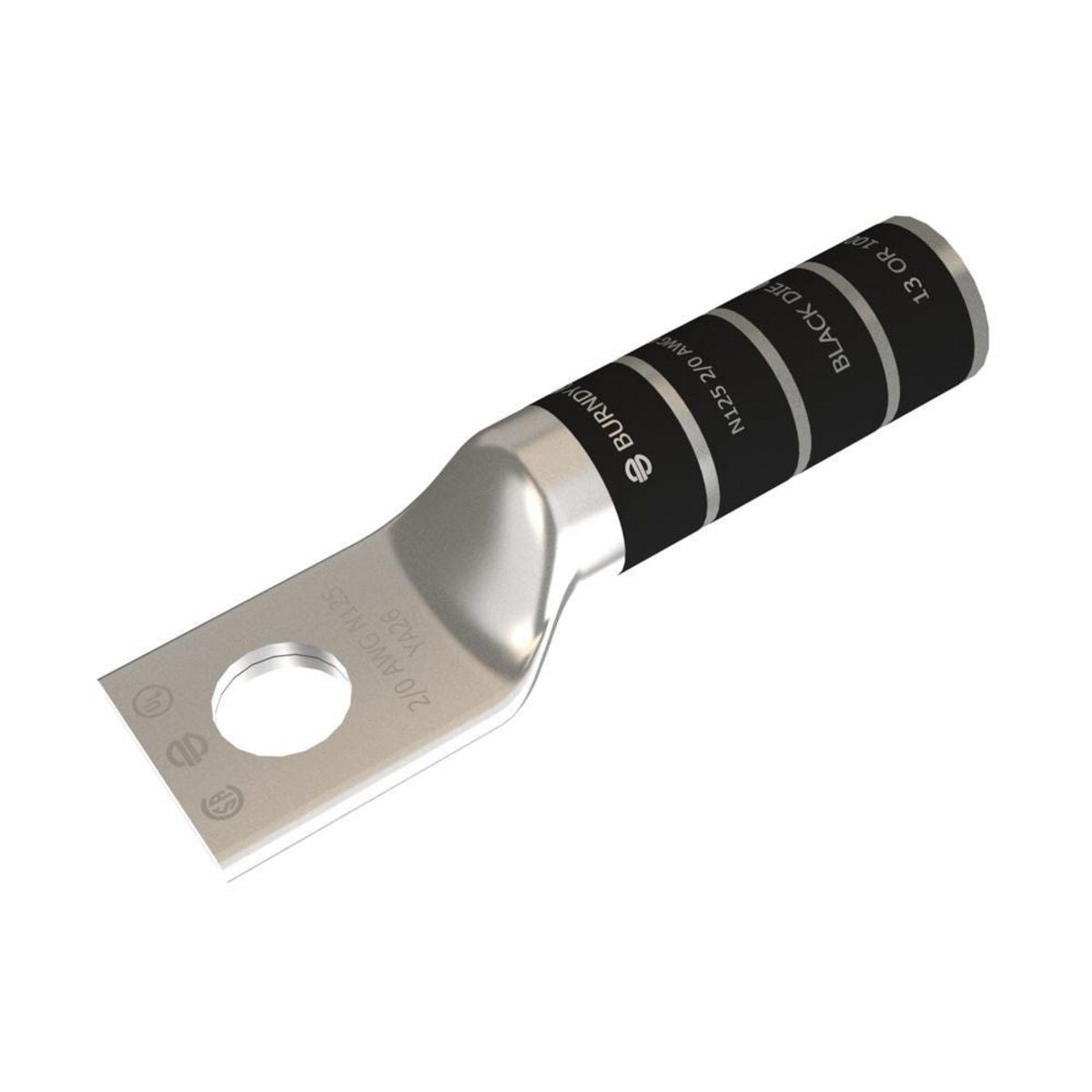

The Hubbell YA26 is a BURNDY Compression Lug designed for use with stranded copper conductors. This one-hole lug accommodates a two over zero American Wire Gauge (AWG) conductor and features a three-eighths inch stud. It is suitable for a voltage rating of six hundred to thirty-five thousand volts alternating current (VAC).
- Recommended for code conductors
- Made of tin-plated copper
- Rated for high temperature, up to ninety degrees Celsius
Product Highlights
This lug provides reliable electrical connections and meets various standards for safety and compliance. It is designed for use in electrical installations where high-performance and durability are required.
Product Information
Standard Information
-
Application: For code conductor
-
Manufacturer: Hubbell
Technical Specifications
-
Die Code: 13
-
Conductor Size: 2/0 AWG
-
Material: Tin Plated Copper
-
Stud Size: 3/8 inch
-
Overall Length: 2.77 inches
-
Barrel Size: 1-1/2 inches long
-
Temperature Rating: 90 degrees Celsius
-
Voltage Rating: 600 to 35000 VAC
-
Tongue Size: 0.83 inches wide x 0.12 inches thick
-
Tongue Type: Straight
