Product Description

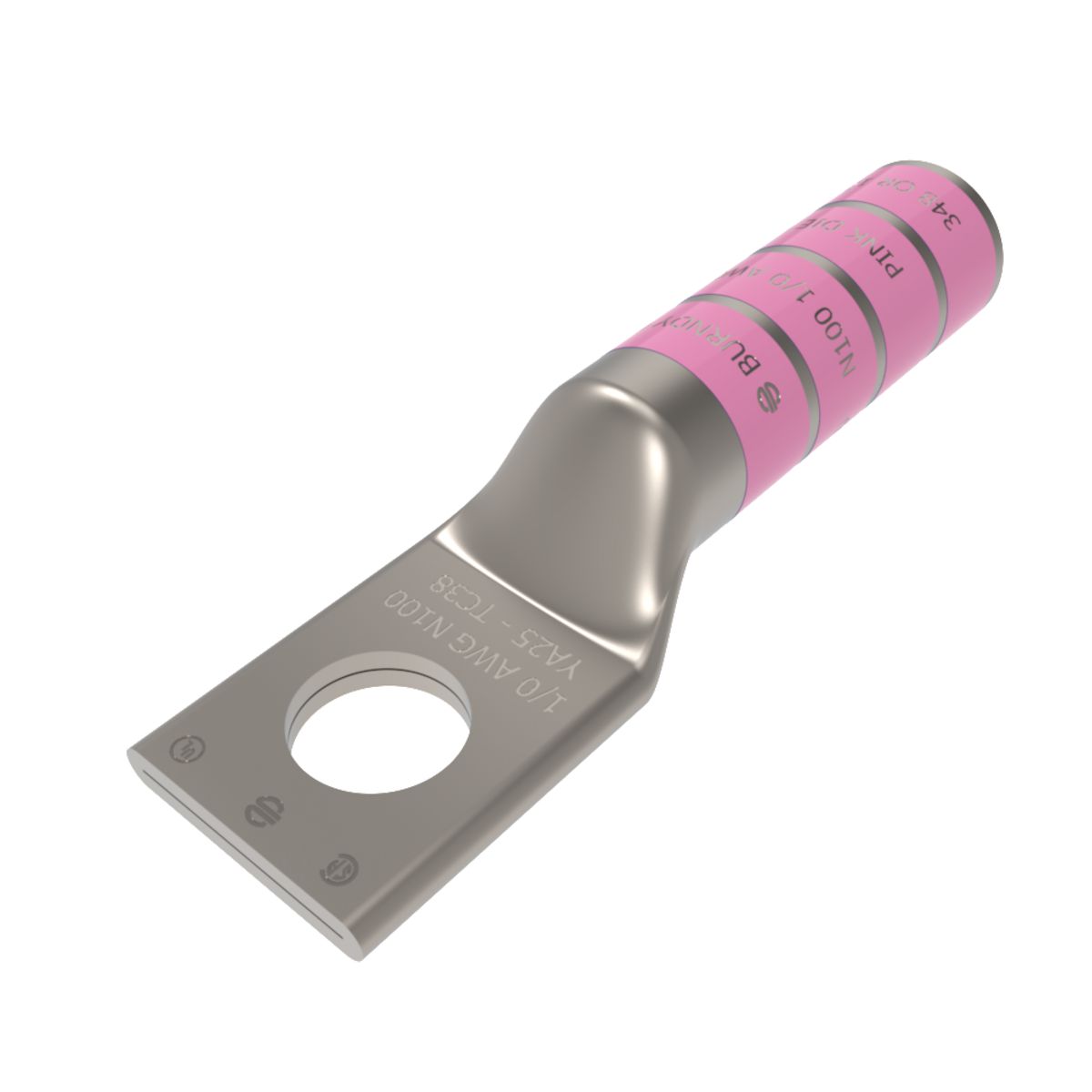

BURNDY YA25TC38 is a compression lug designed for electrical connections. This product is suitable for terminating stranded copper conductors. It features a one-hole uninsulated design and is compliant with UL and CSA standards.
- Die Code: 12
- Rated voltage up to 35 kV
- Temperature rating: 90 degrees Celsius
Product Highlights
This product provides reliable connections for various applications in industrial and commercial settings. It is designed for easy installation with minimal cable preparation.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Type: 1-Hole Uninsulated
Technical Specifications
-
Application: For code conductor
-
Barrel Size: 0.51 inches OD x 1.38 inches L
-
Color: Pink
-
Conductor Size: 1/0 AWG
-
Conductor Type: Stranded Copper
-
Die Code: 12
-
Material: Tin Plated Copper
-
Overall Length: 2.61 inches
-
Series: YA-TC
-
Wire Strip Length: 1-7/16 inches
-
Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 467, CSA Certified, Buy American Act Compliant, PROP65 Warning
-
Stud Size: 3/8 inches
-
Temperature Rating: 90 degrees Celsius
-
Tongue Size: 0.75 inches W x 0.12 inches THK
-
Tongue Type: Standard/Straight
-
Voltage Rating: 600 VAC to 35 kV
