Product Description

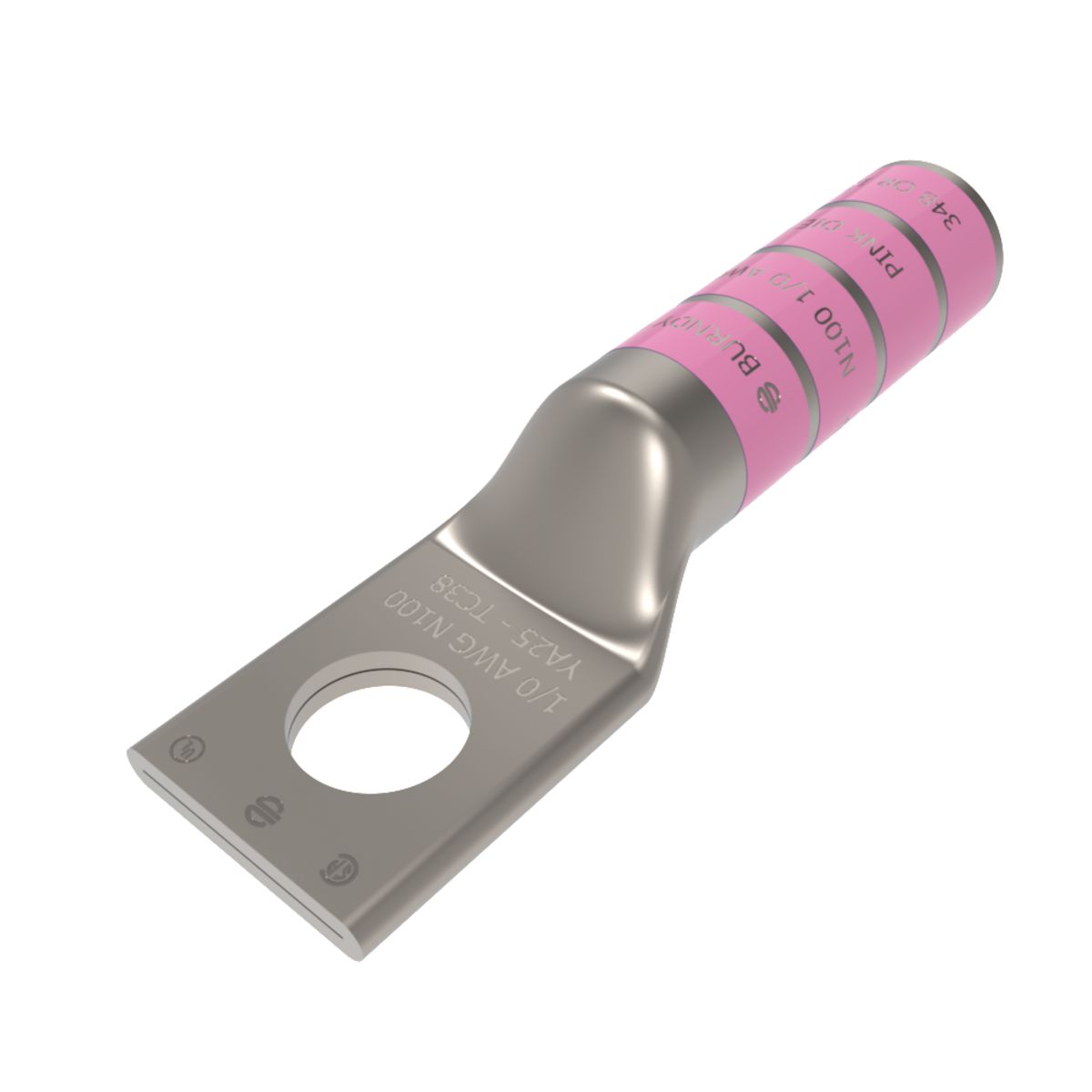

The Hubbell YA25N is a BURNDY HYLUG compression lug designed for uninsulated applications. This product features a one-hole design for ease of installation. It is suitable for use with stranded copper conductors, specifically the 1/0 AWG variety. Built to support a voltage rating of six hundred volts to thirty-five thousand volts, this compression lug is ideal for various electrical applications.
- One-hole uninsulated compression lug
- Rated for up to 35 kV
- Constructed from tin plated copper
Product Highlights
This product is compliant with multiple safety standards and is built to ensure reliability in performance.
Product Information
Standard Information
-
Application: For code conductor
-
Manufacturer: Hubbell
Technical Specifications
-
Barrel Size: 1.38 in L
-
Color: Pink
-
Conductor Size: 1/0 AWG
-
Conductor Type: Stranded Copper
-
Die Code: 12
-
Material: Tin Plated Copper
-
Mounting Hole Size: 1/2 in
-
Overall Length: 3.05 in
-
Series: YA Series
-
Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, CSA Certified, UL Listed
-
Stud Size: 1/2 in
-
Temperature Rating: 90 deg C
-
Tongue Size: 0.83 in W x 0.11 in THK
-
Tongue Type: Standard/Straight
-
Type: 1-Hole Uninsulated
-
Voltage Rating: 600 VAC to 35 kV
