Product Description

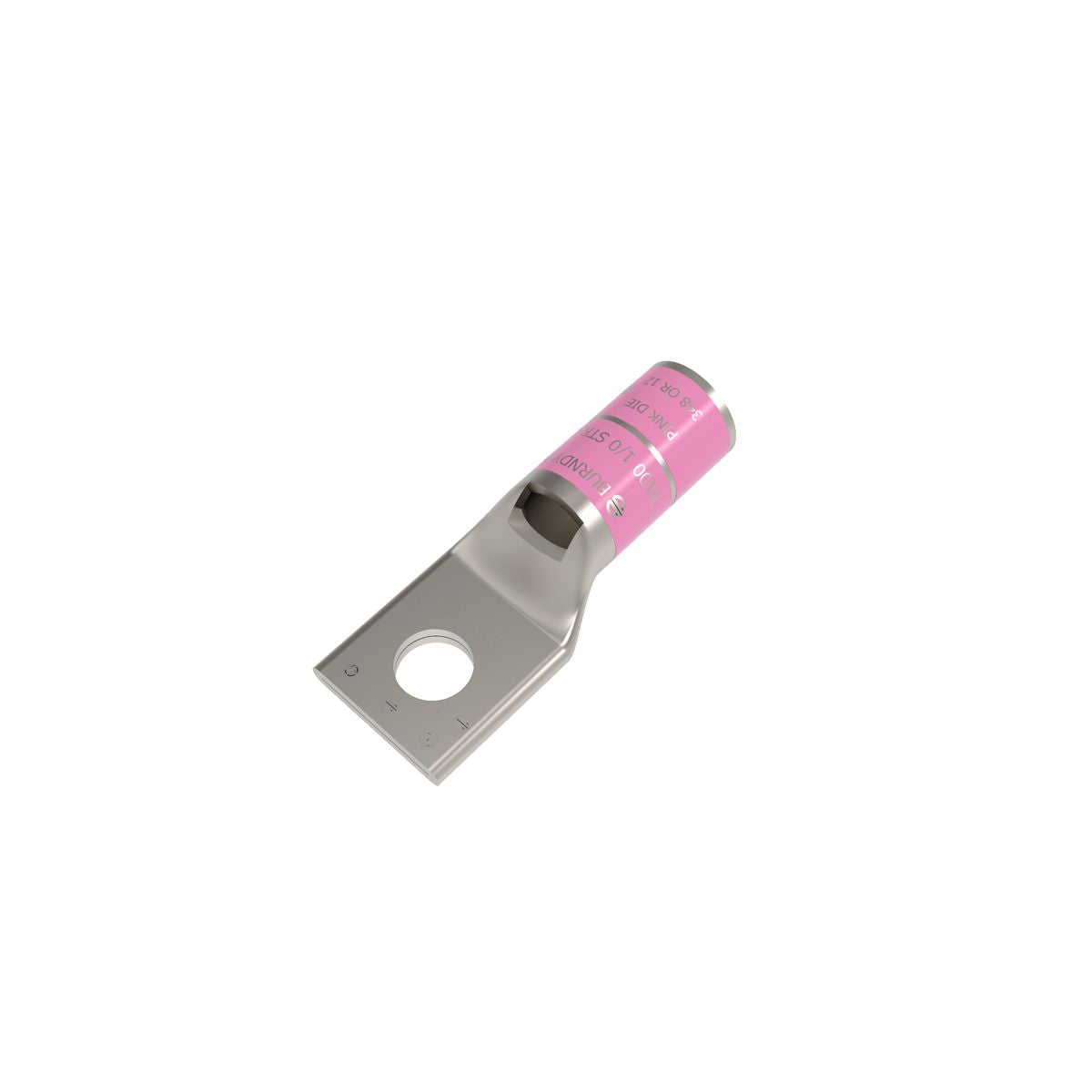

The Hubbell YA25L4BOX is a compression lug designed for stranded copper conductors. This product supports one hole and is rated for conductors with a size of 1/0 AWG. It operates in voltage ratings from 600 VAC to thirty-five kV. The lug features a standard tongue with chamfered edges and is suited for both mechanical and hydraulic tooling.
- Conductor Size: 1/0 AWG
- Material: Copper
- Overall Length: 2.09 inches
Product Highlights
The compression lug is designed to provide reliable connections for various electrical applications. It withstands high environmental conditions, maintaining functionality under electrical surges, temperatures, and corrosion.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Type: 1-Hole
Technical Specifications
-
Application: For code conductor
-
Barrel Size: 0.88 inches Length
-
Color: Pink
-
Conductor Type: Stranded Copper
-
Die Code: 12
-
Stud Size: 3/8 inches
-
Temperature Rating: 90 degrees Celsius
-
Tongue Size: 0.75 inches Width x 0.12 inches Thickness
-
Voltage Rating: 600 VAC to 35 kV
-
Standards/Approvals: ARRA Compliant, CSA Certified, RoHS Compliant, UL 467A/467B
