Product Description

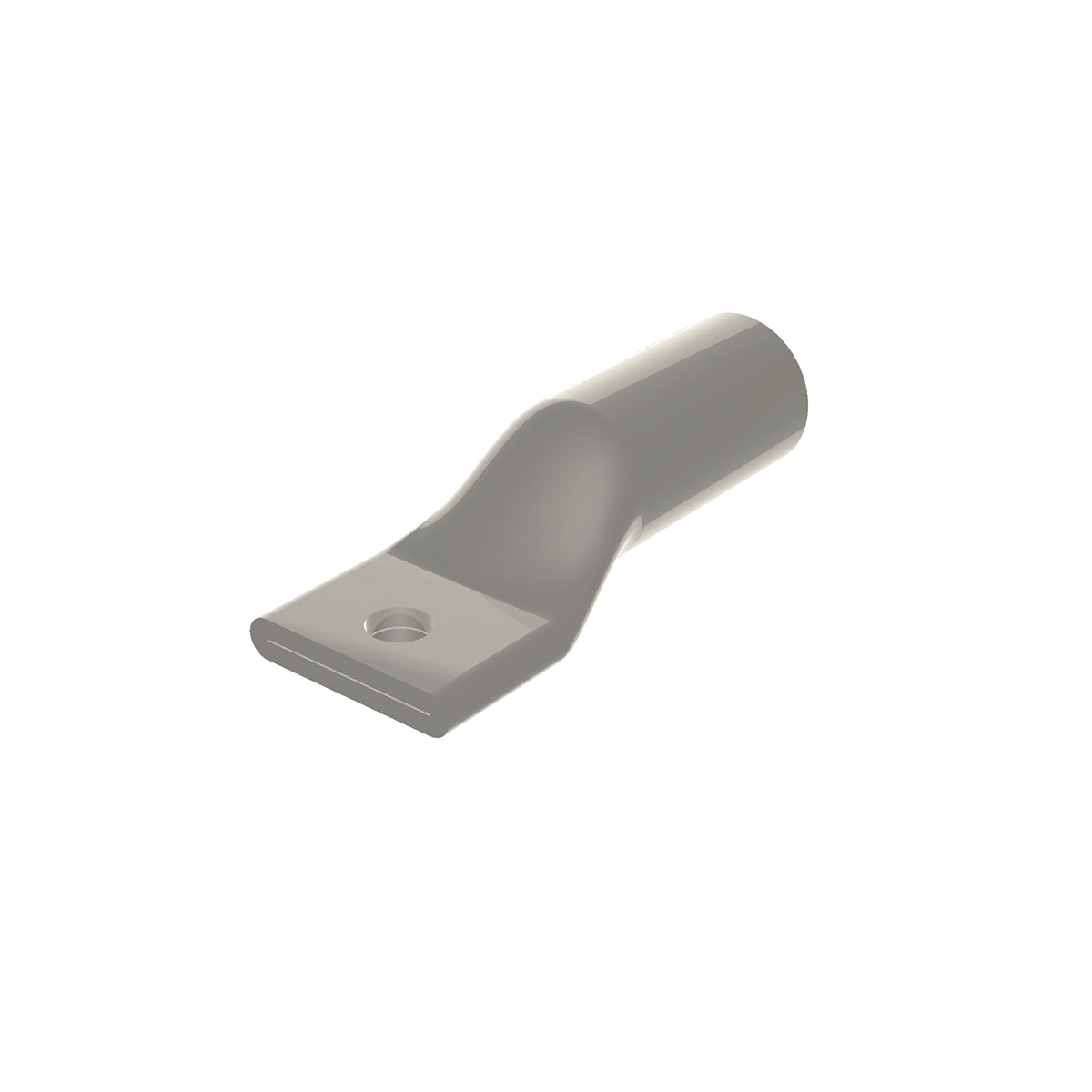

The Hubbell YA25A9 Burndy Aluminum One-Hole Lug is designed for reliable electrical connections. This product supports both aluminum and stranded copper conductors. The lug is dual rated and uninsulated, making it suitable for various applications. It operates effectively under high voltage conditions, ranging from six hundred volts to thirty-five thousand volts.
- Prefilled with PENETROX® oxide inhibiting compound
- Suitable for aluminum and copper conductors
- Dual rated for heavy-duty applications
Product Highlights
This lug offers superior conductivity and meets several safety standards. It is ideal for crimping with multiple tools, ensuring compatibility and ease of installation.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: YA25A9
Technical Specifications
-
Application: For aluminum and copper conductors
-
Barrel Size: 1.05 inches long
-
Color: Tan
-
Conductor Size: 1/0 AWG
-
Material: Electro Plated Tin Aluminum
-
Overall Length: 2.83 inches
-
Stud Size: 1/2 inches
-
Temperature Rating: 90 degrees Celsius
-
Voltage Rating: 600 VAC to 35 kV
-
Tongue Size: 1.34 inches long x 1.03 inches wide x 0.17 inches thick
-
Tongue Type: Straight
-
Standards/Approvals: ARRA Compliant, BAA Compliant, RoHS Compliant, UL 467, UL 486B, CSA Certified
