Hubbell YA25A3 BURNDY 1/0 AL 1-HOLE, 3/8

Product Description

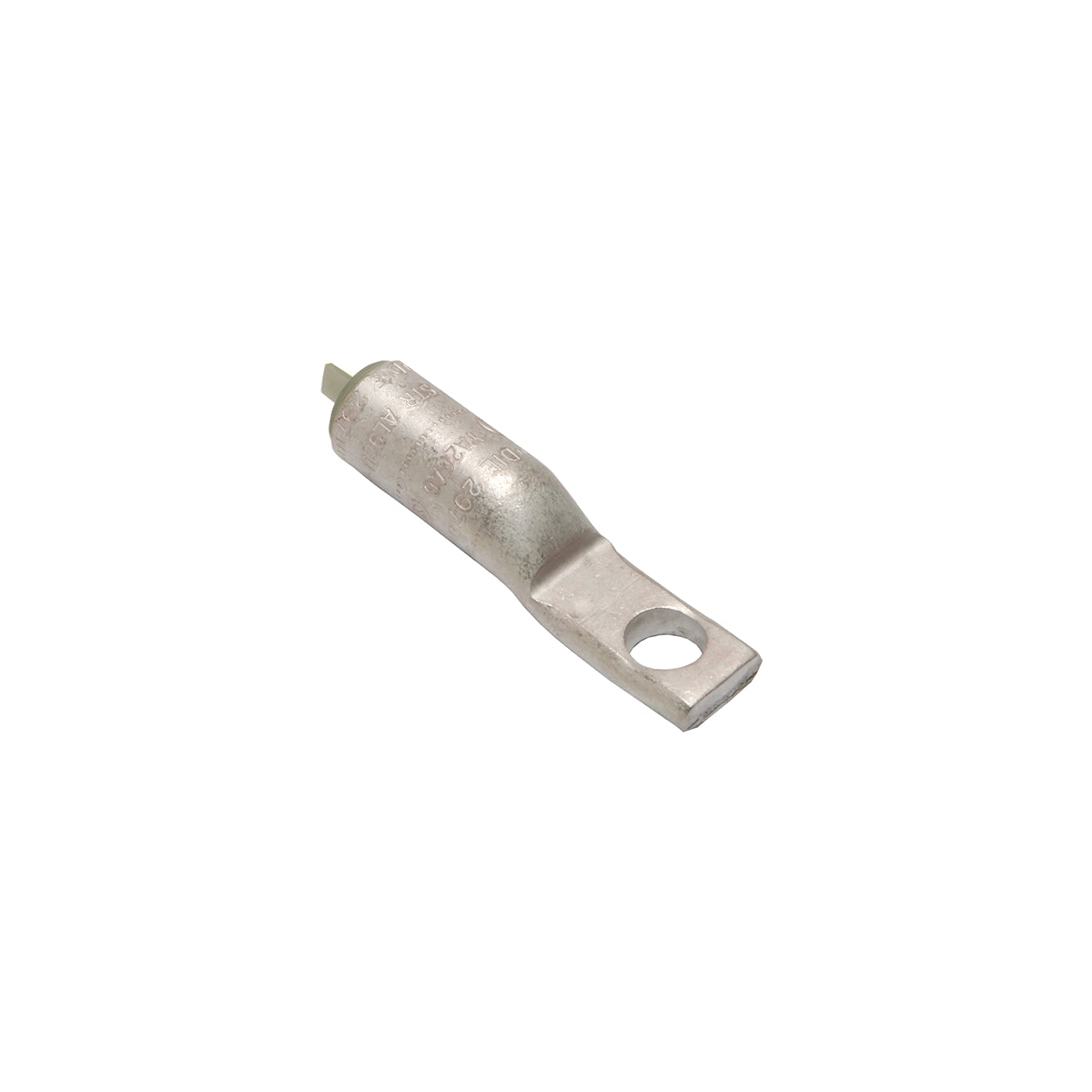

The Hubbell YA25A3 is a BURNDY HYLUG Compression Lug designed for electrical connections. This product supports both aluminum and stranded copper conductors with a size of 1/0 AWG. It features a one-hole design that allows for easy installation and reliable connections up to 35 kV. The lug is suitable for applications involving current surges, temperatures, corrosion, and vibrations.

• Supports aluminum and copper conductors
• Operates under voltage ratings from 600 VAC to 35 kV
• Includes PENETROX oxide inhibiting compound for optimal performance

Product Highlights

Designed for heavy-duty applications, the YA25A3 is constructed from high conductivity, wrought aluminum. It has a current rating suitable for various electrical environments.

Product Information

Standard Information

• Application: For aluminum and copper conductors
• Temperature Rating: 90 deg C

Technical Specifications

• Material: Electro Plated Tin Aluminum
• Conductor Size: 1/0 AWG
• Overall Length: 2.67 inches
• Stud Size: 3/8 inches
• Die Code: 296
• Tongue Size: 1.18 inches L x 0.82 inches W x 0.21 inches THK
• Voltage Rating: 600 VAC to 35 kV
• Standards/Approvals: ARRA Compliant, RoHS Compliant, UL 467/486B, CSA Certified
