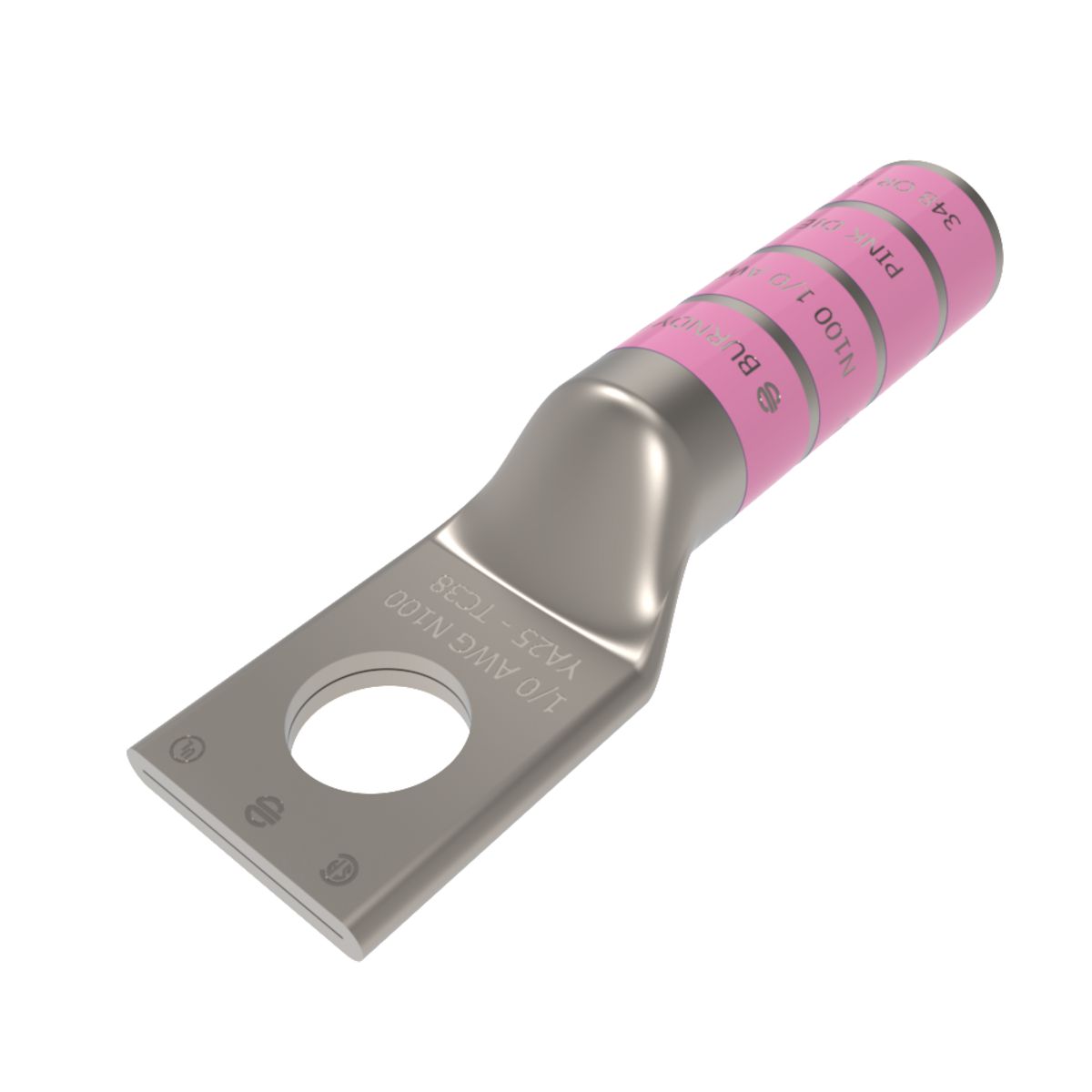

Hubbell YA25 BURNDY 1 Hole Comp Lug CU 1/0AWG W/5/16STUD HOLE

Product Description

The Hubbell YA25 is a 1-hole uninsulated compression lug designed for 1/0 AWG stranded copper conductors. This compression lug features a die code of twelve and can handle voltages ranging from six hundred volts to thirty-five kilovolts. It is suitable for code conductors with a five-sixteenth inch stud and complies with various industry standards.

• For stranded copper conductors
• Temperature rating of 90 degrees Celsius
• Tin plated for corrosion resistance

Product Highlights

This lug is a reliable choice for electrical connections. It offers a standard tongue and is suited for use in both commercial and residential applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: YA25

Technical Specifications

• Application: For code conductor
• Barrel Size: 1.38 in L
• Color: Pink
• Conductor Size: 1/0 AWG
• Conductor Type: Stranded Copper
• Die Code: 12
• Material: Tin Plated Copper
• Overall Length: 2.48 in
• Series: YA Series
• Specifications: 3/4 in Pad
• Standards/Approvals: ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 468A/468B | CSA Certified
• Stud Size: 5/16 in
• Temperature Rating: 90 deg C
• Tongue Size: 0.75 in W x 0.13 in THK
• Tongue Type: Standard
• Type: 1-Hole Uninsulated
• Voltage Rating: 600 VAC to 35 kV
