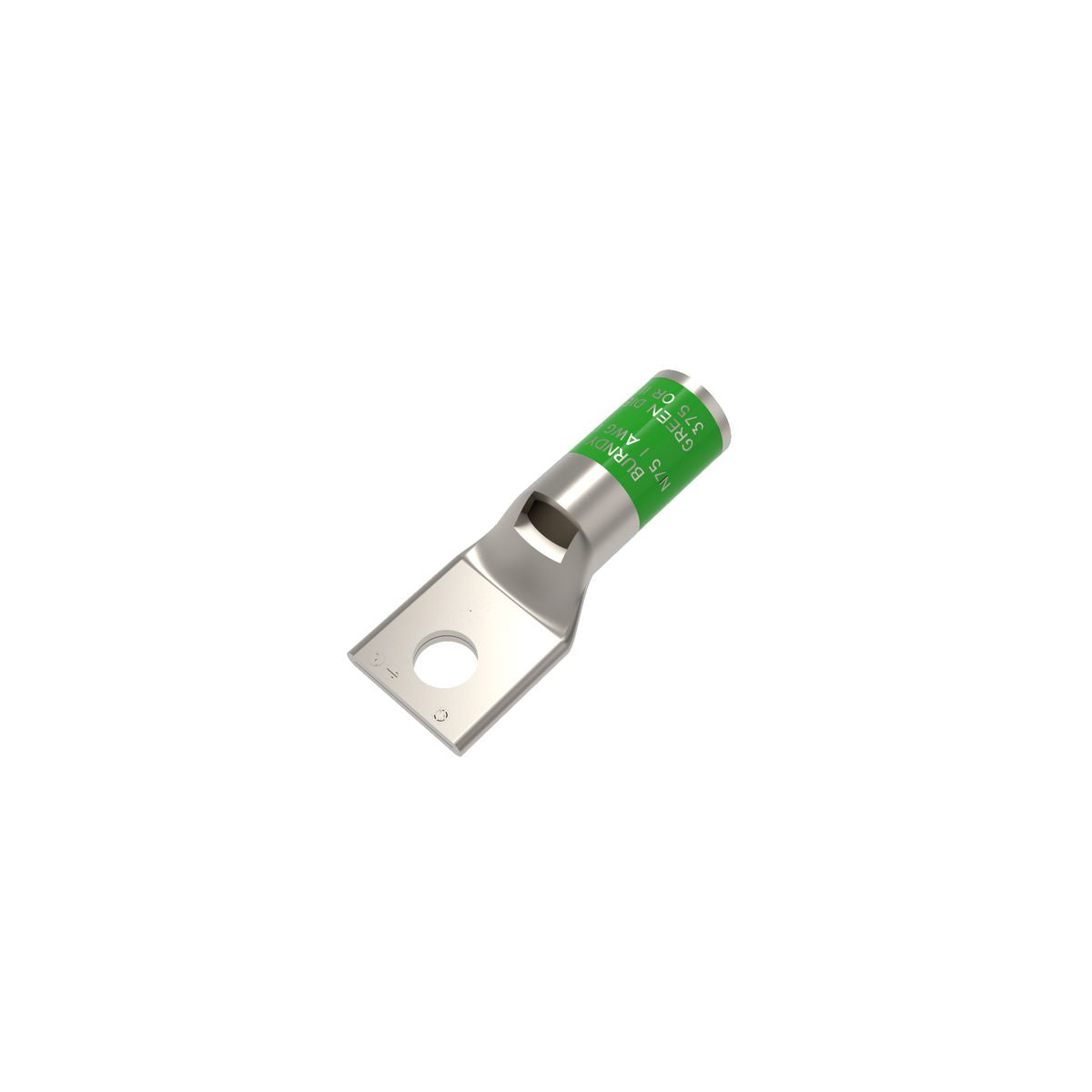

Hubbell YA1CL4BOX YA-L 1-Hole Compression Lug With Inspection Window, 1 AWG Stranded Copper Conductor, Die Code 11, 3/8 in Stud

Product Description

The Hubbell YA1CL4BOX is a 1-hole compression lug designed for reliable electrical connections. This compression lug accommodates a stranded copper conductor of size 1 AWG. It is built to withstand voltage ratings from 600 VAC up to 35 kV. The lug features a standard tongue suitable for various applications and a 3/8 inch stud size, allowing for easy installation.

• Rated for current surges and harsh environmental conditions
• Made from high conductivity copper for efficient electrical flow
• Tin-plated for improved corrosion resistance

Product Highlights

The compression lug offers a high-quality connection with low installed costs. It is designed to withstand a range of temperature conditions, making it suitable for industrial and commercial use.

Product Information

Standard Information

• Manufacturer: Hubbell
• Class: Compression Connectors

Technical Specifications

• Application: For code conductor
• Barrel Size: 0.88 inches long
• Color: Green
• Conductor Size: 1 AWG
• Conductor Type: Stranded Copper
• Die Code: 11
• Material: Copper
• Overall Length: 2.06 inches
• Series: YA-L
• Temperature Rating: 90 degrees Celsius
• Tongue Size: 0.68 inches wide x 0.1 inches thick
• Tongue Type: Standard/Straight
• Type: 1-Hole
• Voltage Rating: 600 VAC to 35 kV
