Product Description

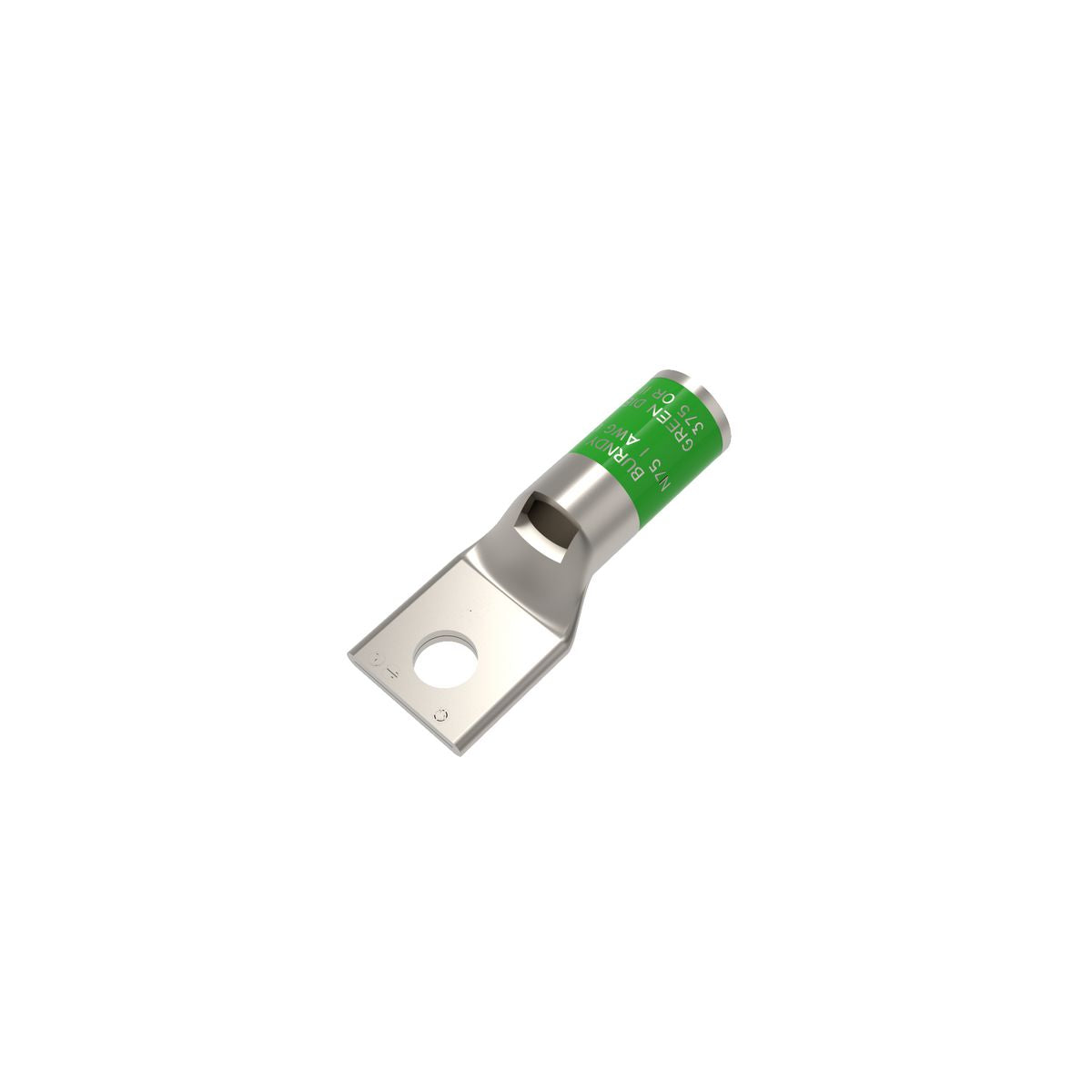

The Hubbell YA1CL2 is a BURNDY HYLUG Compression Lug designed for effective electrical connections. This 1-hole compression lug is suitable for use with stranded copper conductors and is rated for 1 AWG. The lug can handle voltages ranging from 600 VAC to 35 kV.
- 1 AWG stranded copper conductor
- 1/4 inch stud compatibility
- UL and CSA certified for safety
Product Highlights
This compression lug provides reliable connections in industrial and commercial electrical applications.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Type: 1-Hole
Technical Specifications
-
Conductor Size: 1 AWG
-
Material: Copper
-
Overall Length: 1.81 inches
-
Barrel Size: 0.46 inches OD x 0.88 inches L
-
Tongue Size: 0.68 inches W x 0.1 inches THK
-
Stud Size: 1/4 inch
-
Voltage Rating: 600 VAC to 35 kV
-
Temperature Rating: 90 degrees C
-
Standards/Approvals: UL 467/467A/467B, CSA Certified, RoHS Compliant
