Product Description

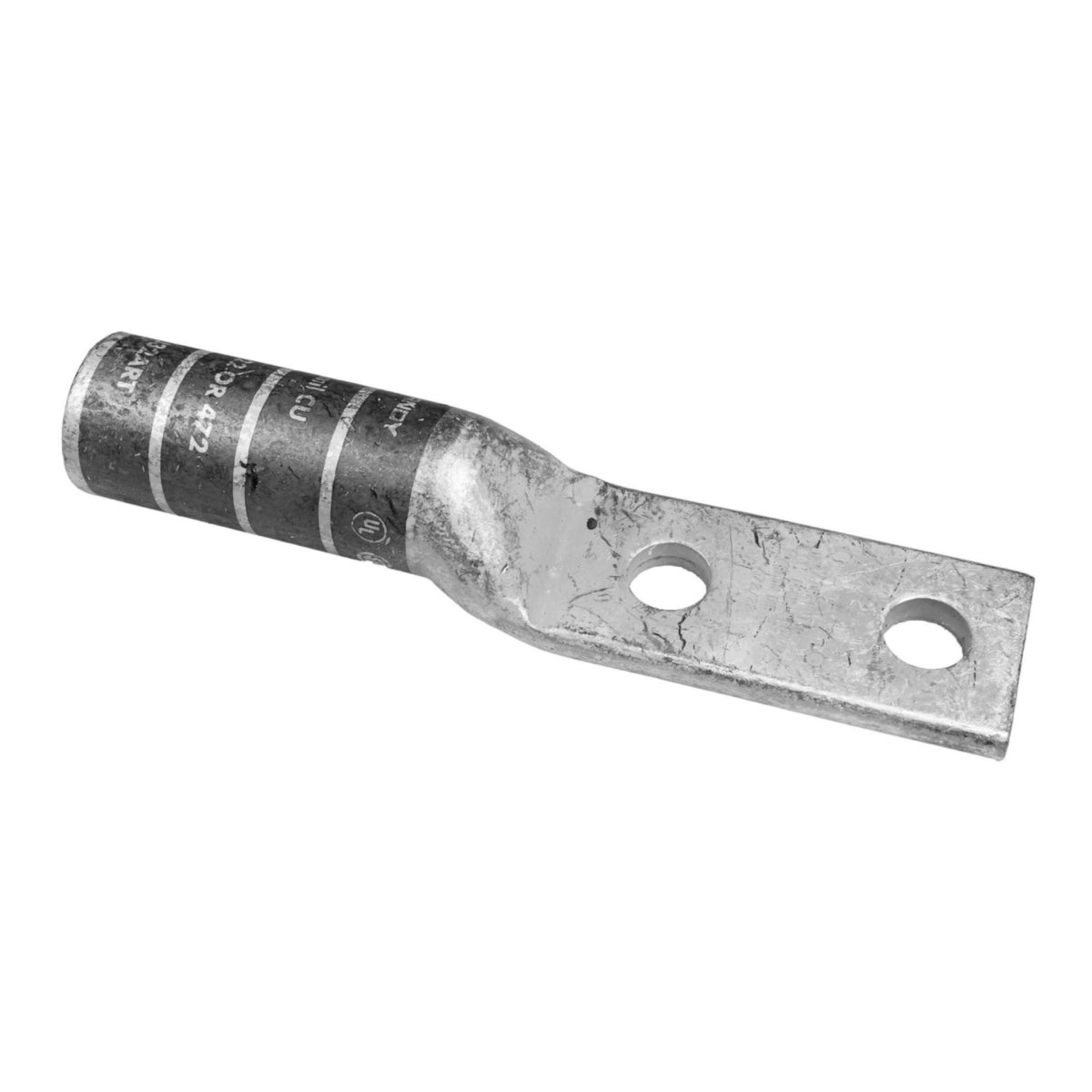

The Hubbell YA1C2TC38 is a BURNDY HYLUG Compression Lug designed for reliable electrical connections. This is a two-hole compression connector suitable for solid or stranded copper conductors, specifically for one American Wire Gauge conductors. It features a die code of eleven and supports voltages ranging from six hundred to thirty-five thousand volts alternating current. The lug accommodates a stud size of three-eighths of an inch and is tin plated for corrosion resistance.
- High conductivity copper construction
- Compatible with a variety of tools for installation
- Suitable for various environmental conditions
Product Highlights
This compression lug provides a reliable, inspectable connection that operates cooler than the conductor.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Model Number: YA1C2TC38
Technical Specifications
-
Application: For code conductor
-
Barrel Size: 1.38 inches L
-
Color: Green
-
Conductor Size: 1 AWG
-
Conductor Type: Solid/Stranded Copper
-
Die Code: 11
-
Material: Tin Plated Copper
-
Overall Length: 3.59 inches
-
Stud Size: 3/8 inches
-
Temperature Rating: 90 degrees C
-
Tongue Size: 0.83 inches W x 0.1 inches THK
-
Tongue Type: Standard/Straight
-
Voltage Rating: 600 VAC to 35 kV
