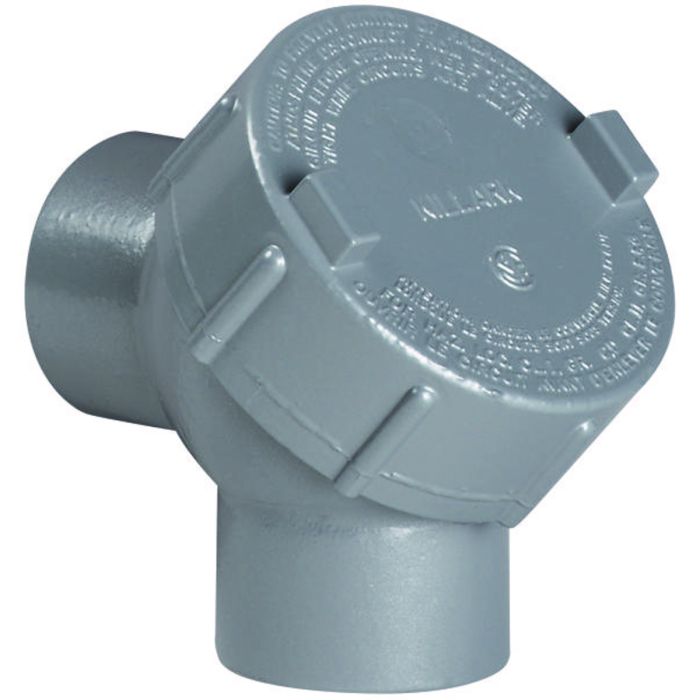

Hubbell Y2 capped elbow 3/4 inches replacement Y-2

Product Description

The HUBBELL Y2 is a capped elbow threaded for rigid conduit or IMC. It is designed to change direction 90 degrees in rigid or IMC conduit systems where space is limited. Features smooth integral bushings to prevent damage to wires.

• Threaded for rigid conduit or IMC
• Smooth integral bushings to prevent damage to wires
• Electrostatically applied powder coating

Product Highlights

The Hubbell Y2 capped elbow is made from copper-free aluminum with a powder-coated finish.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: Y2
• Country of Origin: Mexico

Technical Specifications

• Application: Conduit Systems
• Catalog Number: Y-2
• Color: Gray
• Cover Type: Threaded
• Finish Type: Powder Epoxy Paint
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: Y
• Type: Capped Elbow
• UPC: 783936970028
• Finish: Powder Coated
• Angle: 90 deg
• Suitable For Use With: IMC/Rigid Conduit
• Trade Size: 3/4 in
• Compatible Conduit Trade Size: 3/4 in
• Item: IMC
• Conduit Fitting Type: Elbow
• Connection Type: Threaded
• Standards: CSA Certified File (LR11716), UL Listed File (E10514)
• Ends - Hazardous Fittings: 3/4 in FNPT x 3/4 in FNPT
• Hazardous Location Rating: Class I, Division 1 and 2, Groups C, D, Class II, Division 1 and 2, Groups E, F, G, Class III, Division 1 and 2
• Connector Type: 90 Degrees
• Hazardous Location: Yes
• Body Style: Y
• Thread Gender: Female to Female
• Number of Pieces: 1
• Seal Type: Vertical and Horizontal Conduit Sealing Fittings
• Thread Type: NPT
• Connection Orientation: 90 Degrees
• Shape: Round
• Fitting Type: Elbow
• Conduit Outlet Body Hub Style: Threaded
• Item - Conduit Fitting: 90 Degrees , Capped Elbow
• Fitting Sub-Category: Elbows
• Conduit Fitting Material: Copper Free Aluminum
• Connection: Female to Female
• Use With: Conduit
• Color Family: Gray
