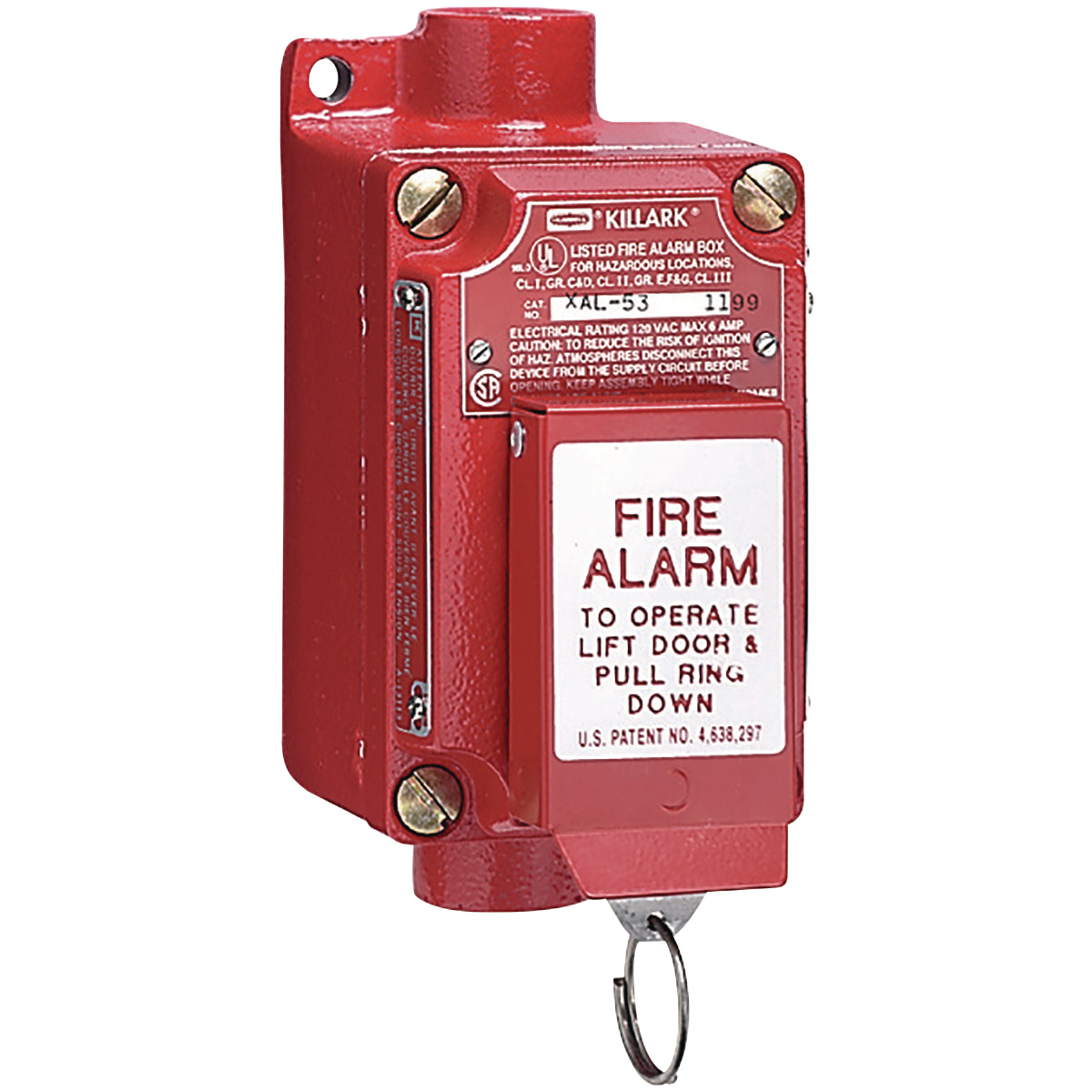

Hubbell XAL-53 Fire Alarm Station 600 VAC/VDC

Product Description

The Hubbell XAL-53 is a fire alarm station designed to operate in hazardous environments. It functions at a voltage of six hundred VAC/VDC with a current rating of ten/two point five amps. This durable alarm station is suitable for use in areas where flammable gases or vapors may be present, making it fitting for petroleum refineries and chemical plants.

• Aluminum alloy construction for corrosion resistance
• Pull-ring activation mechanism for reliable operation
• UL, cUL, and CSA certifications for safety and compliance

Product Highlights

The XAL-53 features an epoxy-coated finish for high visibility and is equipped with bilingual nameplates to meet regulatory standards.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: XAL-53

Technical Specifications

• Amperage Rating: 10/2.5 A
• Application: For hazardous areas due to flammable gases, vapors, and combustible dusts
• Color: Red
• Depth: 4-9/64 inches
• Finish: Epoxy Coated
• Height: 6-27/64 inches
• Includes: Bilingual Nameplates and Internal Ground Screw
• Material: Aluminum Alloy
• Series: XAL
• Specifications: Pull Ring Actuator, 1NO-1NC Contact
• Specifications Met: UL E50498, cUL CE69, CSA LR31085
• Temperature Rating: -50 to 40 degrees Celsius
• Voltage Rating: 600 VAC/VDC
• Width: 3-7/64 inches
