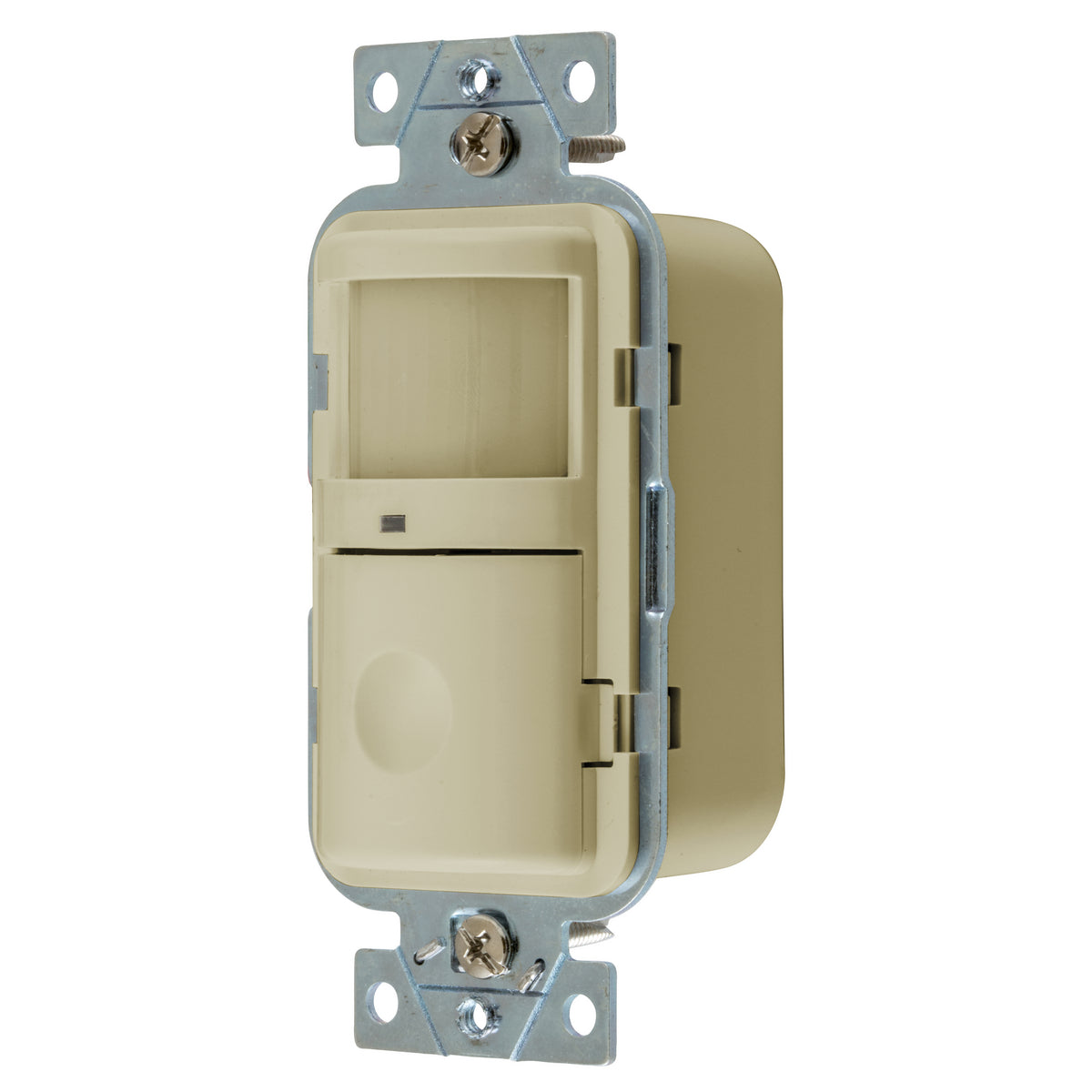

Hubbell WS1000I OCC Sensor, PIR, 120V 500W, IV

Product Description

The Hubbell WS1000I is an occupancy sensor switch that operates at 120 volts. This device utilizes a passive infrared sensor for motion detection, making it suitable for energy-efficient lighting control in indoor spaces. It covers an area of 1000 square feet.

• Manual time delay adjustment from six seconds to twenty minutes.
• Compatible with fluorescent, incandescent, and LED lamps.
• Threaded mounting for easy installation.

Product Highlights

This occupancy sensor is designed for automatic control, enhancing energy savings. It works ideally in small rooms when a clear line of sight is maintained.

Product Information

Standard Information

• Product Name: WS1000I HUBBELL OCC SENSOR, 120V 500W
• Manufacturer: Hubbell

Technical Specifications

• Power Rating: 500 W
• Voltage Rating: 120 VAC
• Amperage Rating: 5 A
• Coverage: 1000 sq-ft
• Dimensions: 4.15 in L x 1.82 in W x 1.62 in H
• Material: ABS
• Control Output: Automatic/Manual On
• Temperature Rating: 32 to 122 deg F
• Sensor Type: Passive Infrared
• Time Delay: 6 s to 20 min
• Mounting Type: Threaded
• Standards/Approvals: ASHRAE 90.1, CEC Title 24 Compliant, CSA Certified
