HUBBELL WIRING Hubbell Wiring RR15LA Straight Blade Receptacle 15A 125V Duplex
HUBBELL WIRING Hubbell Wiring RR15LA Straight Blade Receptacle 15A 125V Duplex

Hubbell Wiring RR15LA Straight Blade Receptacle 15A 125V Duplex

Brand: HUBBELL WIRING
SKU: RR15LA
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

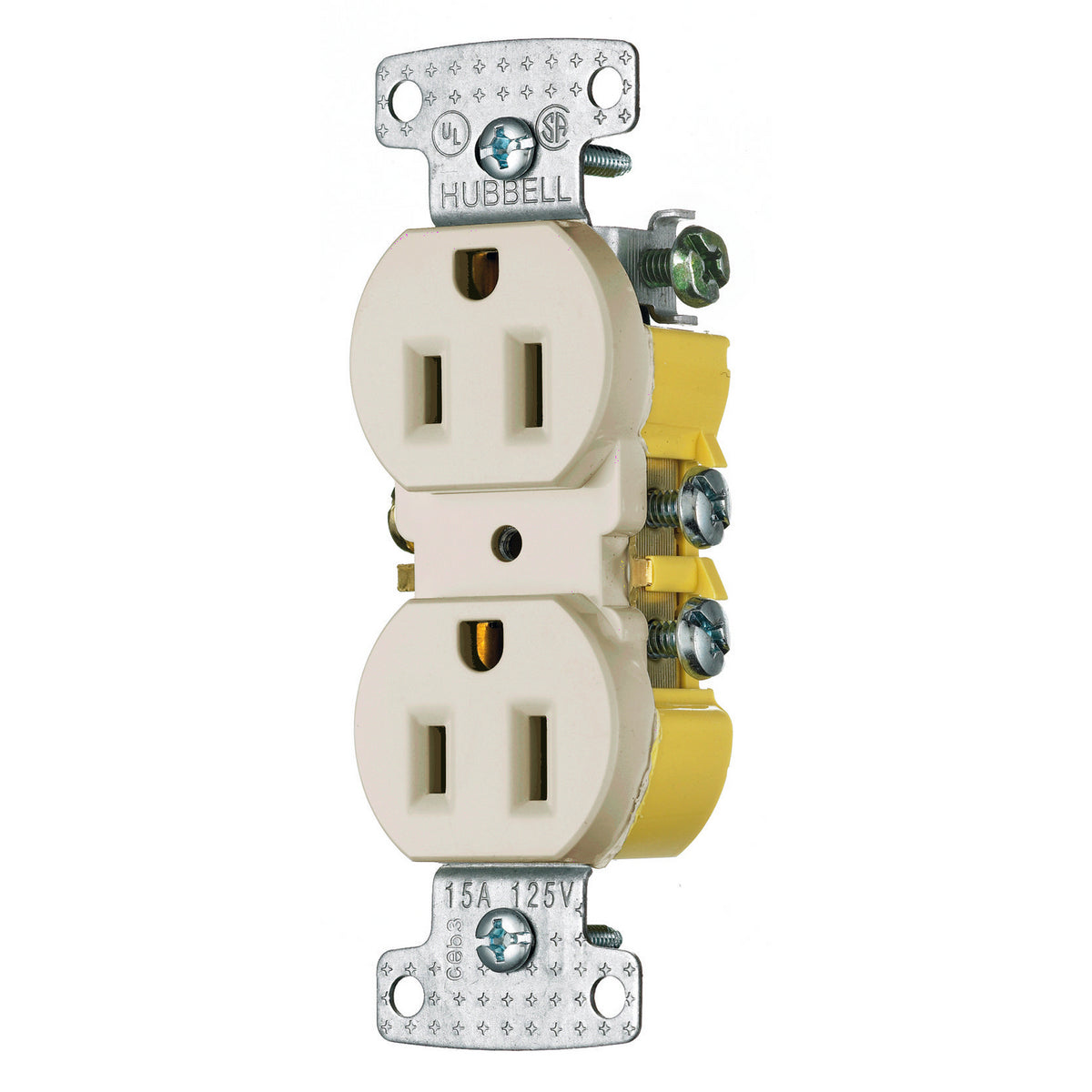

The HUBBELL WIRING RR15LA is a 1-Phase Duplex Straight Blade Receptacle designed for residential applications. This self-grounding unit features a standard traditional screw mount and operates at 125 VAC with a 15 A current rating. It is a 2-pole, 3-wire device with a 5-15R NEMA rating, suitable for temperatures from -20 to 60 deg C. Constructed from thermoplastic, it offers Push-In/Side Wire terminals for versatile connectivity.

  • Straight Blade Receptacle with self-grounding functionality.
  • Standard traditional screw mount for secure installation.
  • Features Push-In/Side Wire terminals for flexible wiring options.

Product Highlights

Residential grade duplex receptacle with self-grounding and versatile wiring.

Product Information

Standard Information

  • Brand: HUBBELL WIRING
  • Manufacturer Part Number: RR15LA
  • Country of Origin: China
Technical Specifications
Type
1-Phase Duplex Self-Grounding Standard Traditional Screw Mount
Receptacle Type
Duplex
Phase
Single Phase
Grounding
Self-Grounding
Mounting Type
Flush
Input Voltage
125 VAC
Current Rating
15 A
Number of Poles
2 Pole
Number of Wires
3-Wire Grounding
NEMA Rating
5-15R
Grade
Residential Grade
Operating Temperature
-20 to 60 deg C
Terminal Type
Push-In/Side Wire, Screw Terminal
Material
Thermoplastic
Application
Residential Receptacles
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Mounting Hardware Material
Screw Mounting
Terminal Screws
Accepts up to #12 AWG
Push Wire
Designed for #14 AWG solid copper wire only
Size
Standard Sized Product
Connectivity
Push and Side Wire
Wattage
1875 W
Wire Size
#14 AWG to #12 AWG
AFCI
No
Connection Orientation
Straight
Contact Material
Brass
Cover Type
No Cover
Face Plate Height
2.6 inches
Face Plate Width
1.5 inches
GFCI
No
Included
Mounting Hardware
Included Mounting Hardware
Yes
Mount Hole Center To Center Height
3.3 inches
NEMA Enclosure Rating
1
Number of Gangs
1
Polarized
Yes
Surge Protection
No
Wire Connection Location
Back, Side
Sub Brand
Trade-Select
