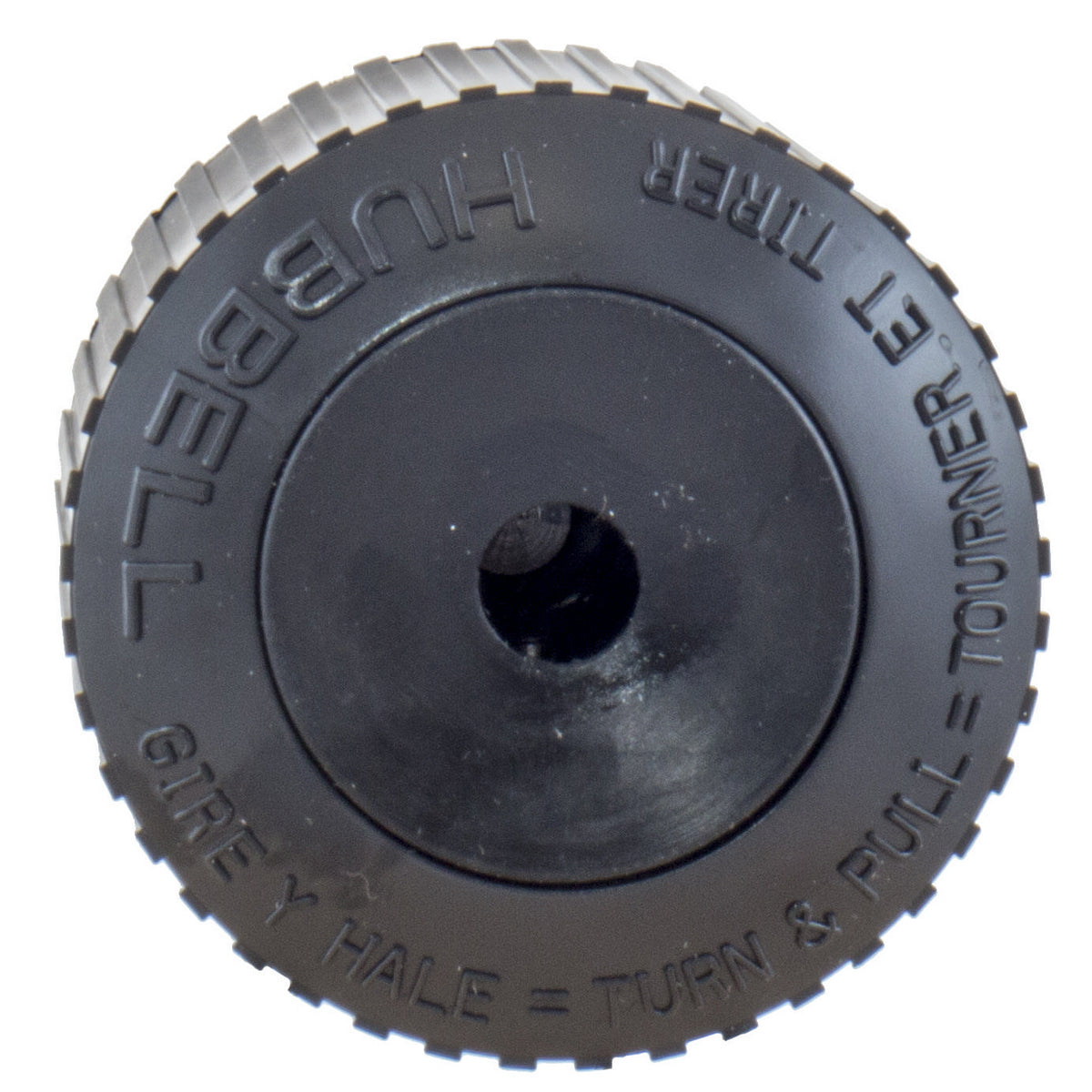

Hubbell Wiring L1430C NEMA L14-30C Conn 30A 125/250V

Product Description

The Hubbell Wiring L1430C is a NEMA L14-30C connector designed for commercial and industrial applications. This twist-lock connector supports up to thirty amps at a voltage of 125/250. It features a three-pole, four-wire grounding system that enhances safety and reliability.

• 30A 125/250V rating
• 3-Pole, 4-Wire Grounding
• Heavy duty construction for commercial use

Product Highlights

This connector is ideal for heavy-duty electrical connections in various settings including construction sites and industrial environments.

Product Information

Standard Information

• Manufacturer: Hubbell Wiring
• Current Rating: 30 A

Technical Specifications

• Voltage Rating: 125/250V
• Amperage Rating: 30 A
• Number of Poles: 3-Pole
• Material: Composite
• Connection Type: Screw Terminal
• Environmental Conditions: Indoor dry unless protected by additional means
• Temperature Rating: Maximum Continuous: 75 C; Minimum Continuous: -40 C without impact
• NEMA Rating: L14-30R
