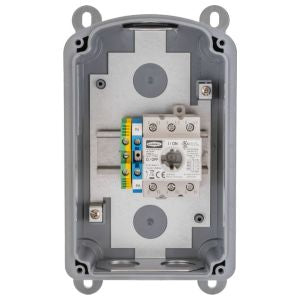

Hubbell Wiring HBLDS60 Motor Disconnect Switch 60A 600V AC

Product Description

The Hubbell Wiring HBLDS60 is an unfused motor disconnect switch designed for industrial use. This switch operates at 60A and is rated for 600V AC. Its construction uses corrosion and impact-resistant UV stabilized non-metallic materials. The enclosure meets IP69K and NEMA Type 4X, 12 standards for water ingress protection, making it suitable for heavy-duty industrial and washdown environments.

• IP69K and NEMA Type 4X, 12 enclosure for maximum protection.
• Rated for heavy duty and washdown applications.
• Meets NEC section 430.102(B) disconnect requirements.

Product Highlights

This disconnect switch is ideal for installations that require a reliable and hygienic disconnect solution. It offers durability and functionality for various industrial applications.

Product Information

Standard Information

• Catalog Number: HBLDS60
• Material: Non-metallic

Technical Specifications

• Application: Heavy Duty Industrial and/or Washdown
• Enclosure Type: IP69k and UL Type 4X, 12
• Environmental Conditions: Indoor and Outdoor
• Horsepower - Maximum: 50
• Ingress Protection: IP69K and UL NEMA Type 4X, 12
• Mounting Method: External fully adjustable feet
• Operating Cycles: 10,000 Cycles Minimum
• Operating Temperature: Maximum continuous 75°C, Minimum -40°C
• Wire Size: #2 to #10 AWG
• Amperage Rating: 60
• Voltage Rating: 600
• IP Rating: IP69K
• Width: 8.75 inches
