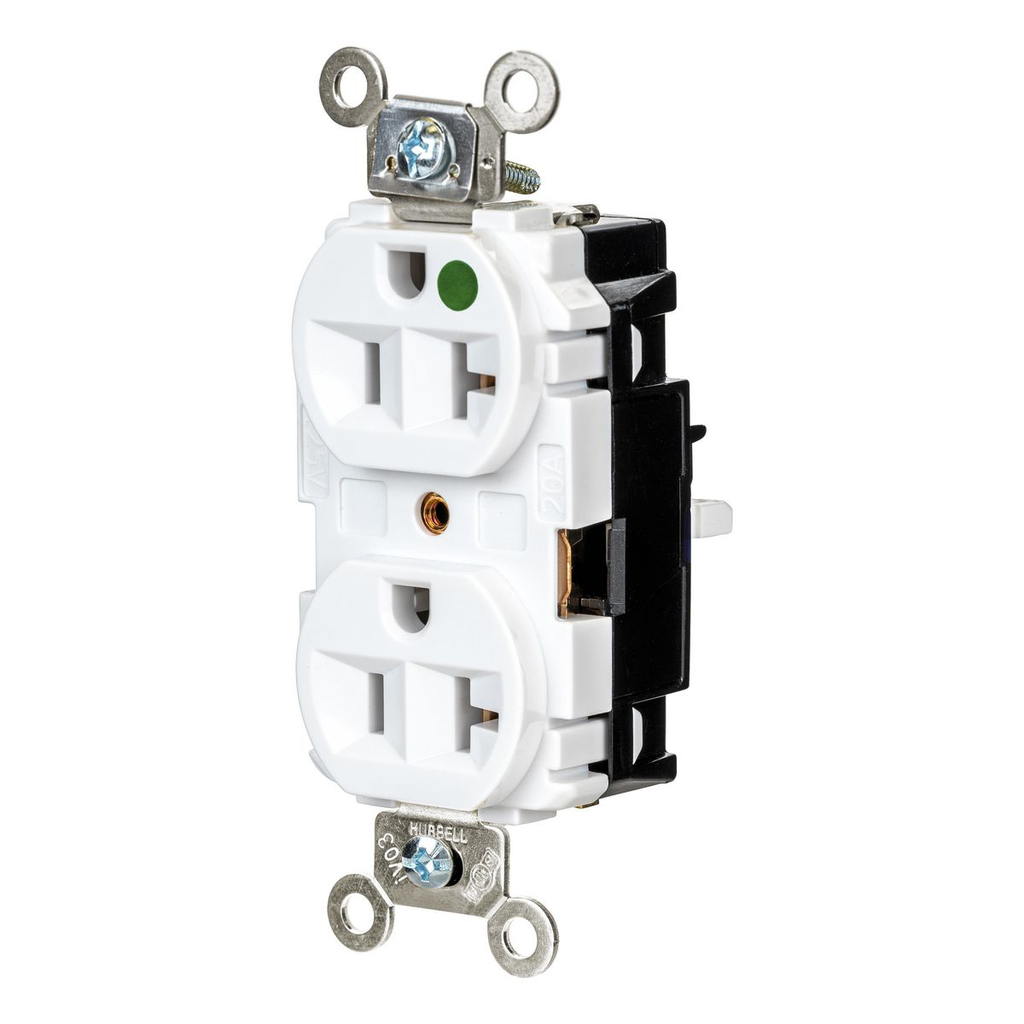

Hubbell Wiring HBL8300STW DPLX RCPT; HG; SPRG 20A 125V 5-20R

Product Description

The Hubbell Wiring HBL8300STW is a duplex receptacle designed for heavy-duty use, featuring hospital-grade capabilities. This straight blade device is part of the EdgeConnect series and is configured for two poles and three wires. The receptacle operates at twenty amperes and one hundred twenty-five volts, supporting a NEMA rating of 5-20R. The screwless termination is a significant advantage, allowing for quicker wire connections without screws. Ideal for commercial and healthcare settings that require reliable and efficient electrical connections.

• Duplex receptacle with hospital-grade certification
• Screwless terminal design for fast installation
• Heavy-duty performance with EdgeConnect technology

Product Highlights

This receptacle uses EdgeConnect technology for easy wire insertion and secure connections.

Product Information

Standard Information

• Manufacturer: Hubbell Wiring
• UPC: 78358568745

Technical Specifications

• Type: Hospital Grade
• Voltage Rating: 125
• Current / Amperage Rating: 20 A
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• NEMA Rating: 5-20R
• Wire Size: No. 14 AWG to No. 10 AWG
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
