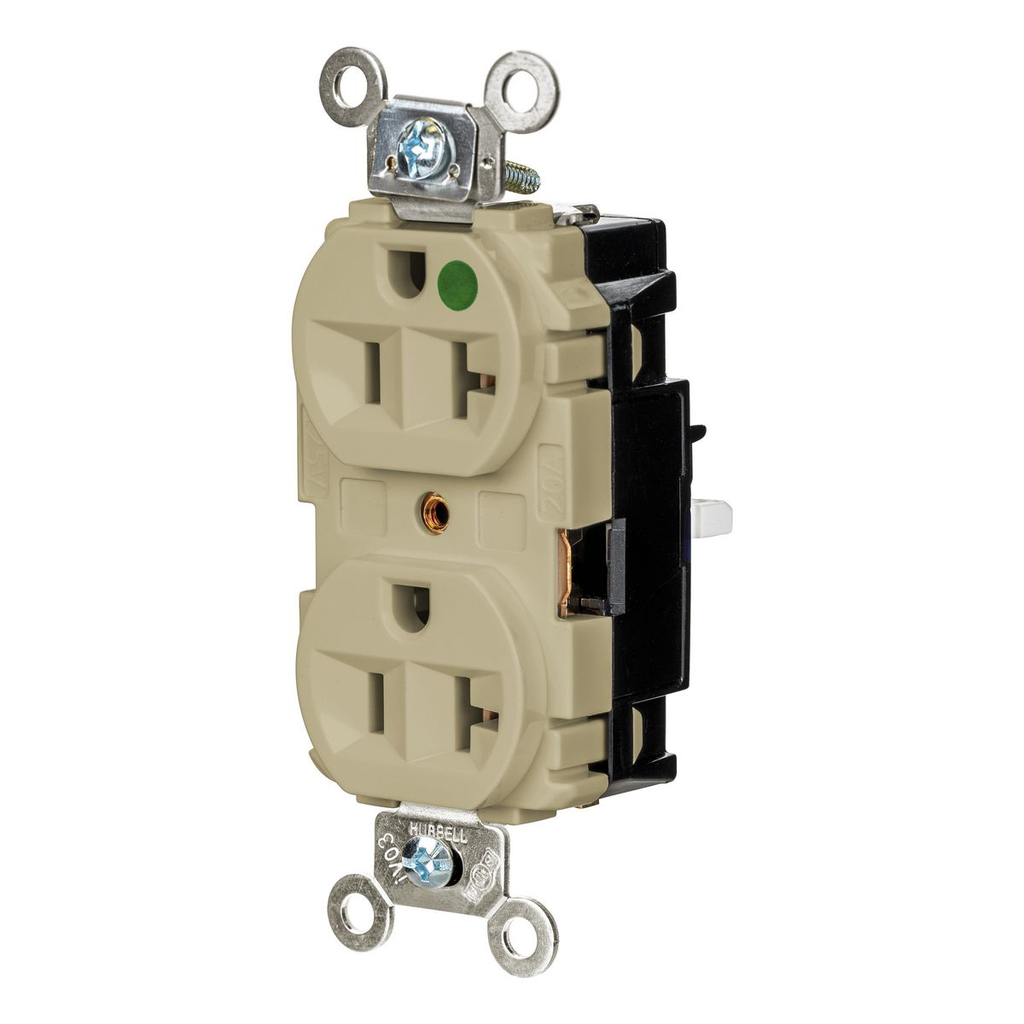

Hubbell Wiring HBL8300STI EdgeConnect Duplex Receptacle 20A 125V 5-20R

Product Description

The Hubbell Wiring HBL8300STI EdgeConnect Duplex Receptacle is designed for hospital-grade applications. This receptacle supports two poles and three wires, capable of handling 20 amps at 125 volts. The screwless terminal design allows for quick and reliable installation. It is suitable for heavy-duty use in various environments.

• Designed for hospital-grade applications
• Screwless terminal allows for faster installation
• Weathers indoor conditions well

Product Highlights

This receptacle features EdgeConnect technology that enhances user experience by providing easy wire insertion and secure connections without the use of traditional screws.

Product Information

Standard Information

• Manufacturer: Hubbell Wiring
• UPC: 78358568741

Technical Specifications

• Voltage Rating: 125 V
• Current Rating: 20 A
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Wire Size: No.14 AWG to No.10 AWG
• Material: Thermoplastic/C
• Temperature Rating: -40C to 75C
