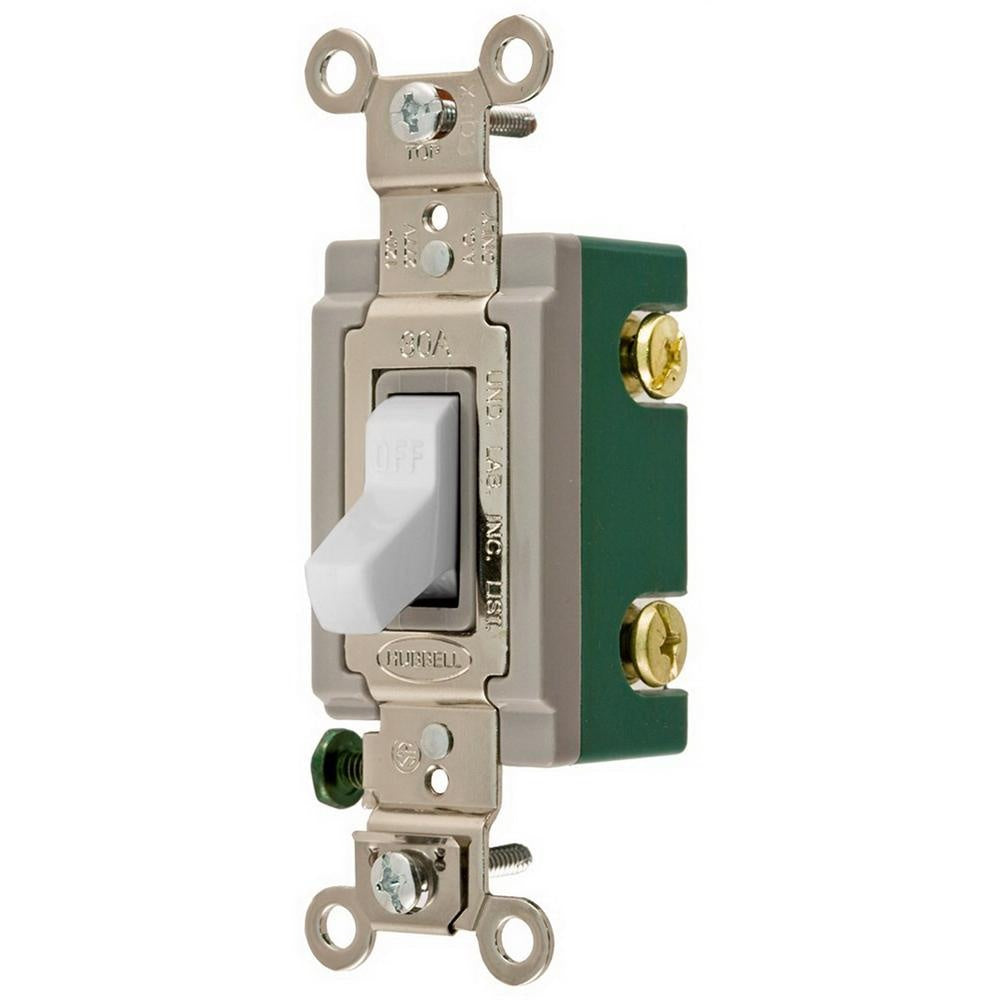

Hubbell Wiring HBL3032W Toggle Switch 120 - 277 Volt AC 30 Amp 2-Pole

Product Description

The Hubbell Wiring HBL3032W is a toggle switch designed for industrial use. This switch operates at 120 to 277 volts AC and supports a current rating of thirty amps. Built with a thermoset material, it is suited for harsh environments, featuring back and side-wired terminals that accept fourteen to ten AWG conductors.

• Rated for 120 - 277 volts AC
• Thermoset construction for durability
• Temperature rating of -40 to 75 degrees Celsius

Product Highlights

This switch is UL listed and CSA certified, making it suitable for various applications in the electrical field. It includes large brass binding head screws for easier installation and a strip gauge for accurate wiring.

Product Information

Standard Information

• Brand: Hubbell Wiring
• Country of Origin: China

Technical Specifications

• MPN: HBL3032W
• Voltage Rating: 120 - 277 Volt AC
• Amperage Rating: 30 Amp
• Number of Poles: 2
• Temperature Rating: -40 to 75 degrees Celsius
• Dielectric Strength: 1500 Volt AC
• Dimensions: 4.06 inches length x 1.31 inches width x 1.83 inches depth
• Material: Thermoset
• Standards: UL Listed, CSA Certified, Federal Specification: W-S-896
