Hubbell Wiring HBL2513ST LKG CONN; 20A 120/20

Product Description

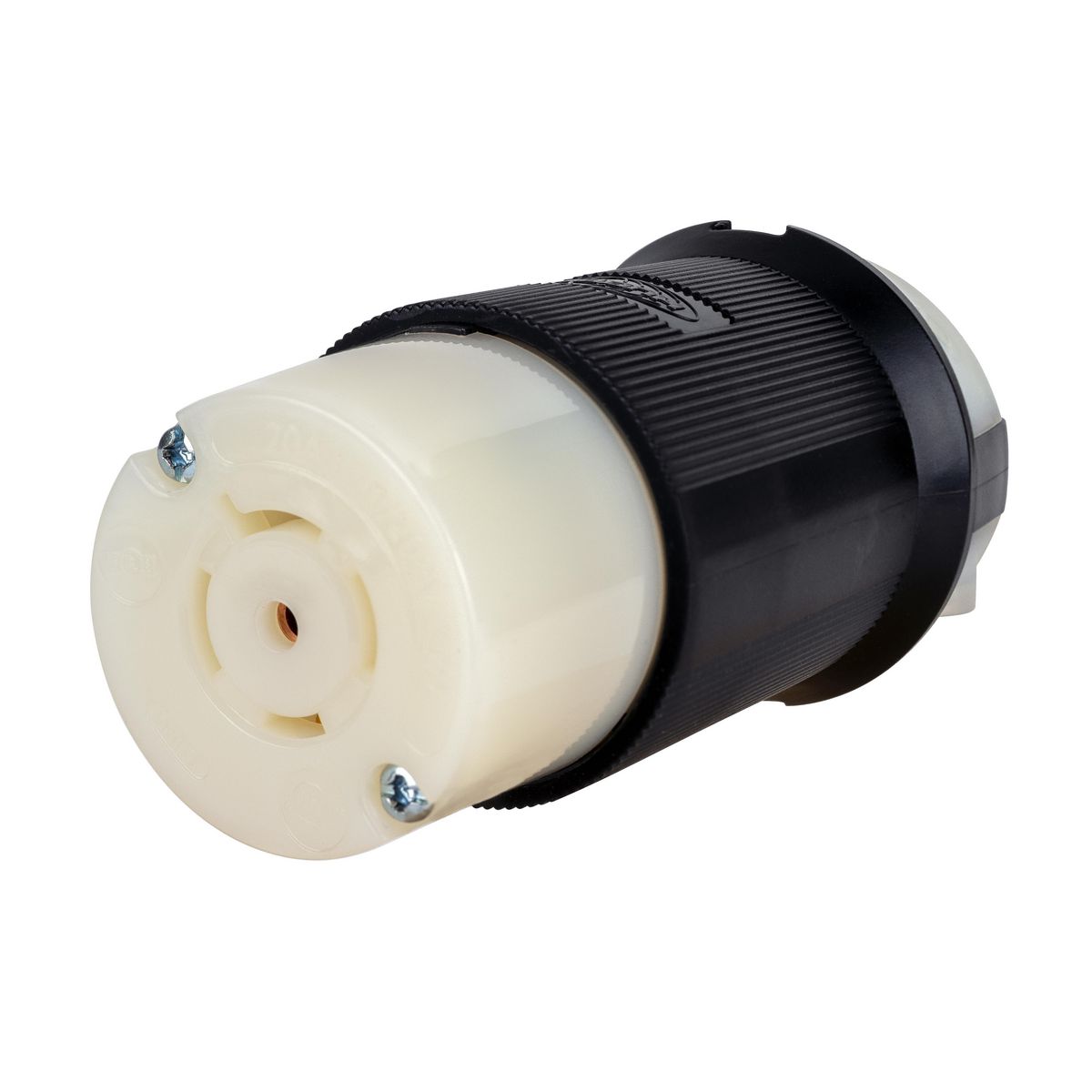

The Hubbell Wiring HBL2513ST is a locking device designed to provide reliable power connections. This EdgeConnect twist-lock female connector is rated for twenty amperes and can be used with three-phase wye systems operating at one hundred twenty to two hundred eight volts AC.

• EdgeConnect technology enables screwless termination.
• Compatible with NEMA L21-20R standards.
• Constructed from durable nylon material for longevity.

Product Highlights

This product features an easy wire termination process that does not require tools such as screwdrivers or torque wrenches. The design minimizes installation time and is ideal for various industrial applications.

Product Information

Standard Information

• Manufacturer: Hubbell Wiring
• Family Group: Wiring Devices

Technical Specifications

• Type: Connector
• Voltage Rating: 3P 120/208
• Current / Amperage Rating: 20 A
• Number of Poles: 4
• Material: Nylon
• NEMA Rating: L21-20R
• Temperature Rating: Maximum Continuous 75C; Minimum -40C
• Weight: 0.45 lbs
