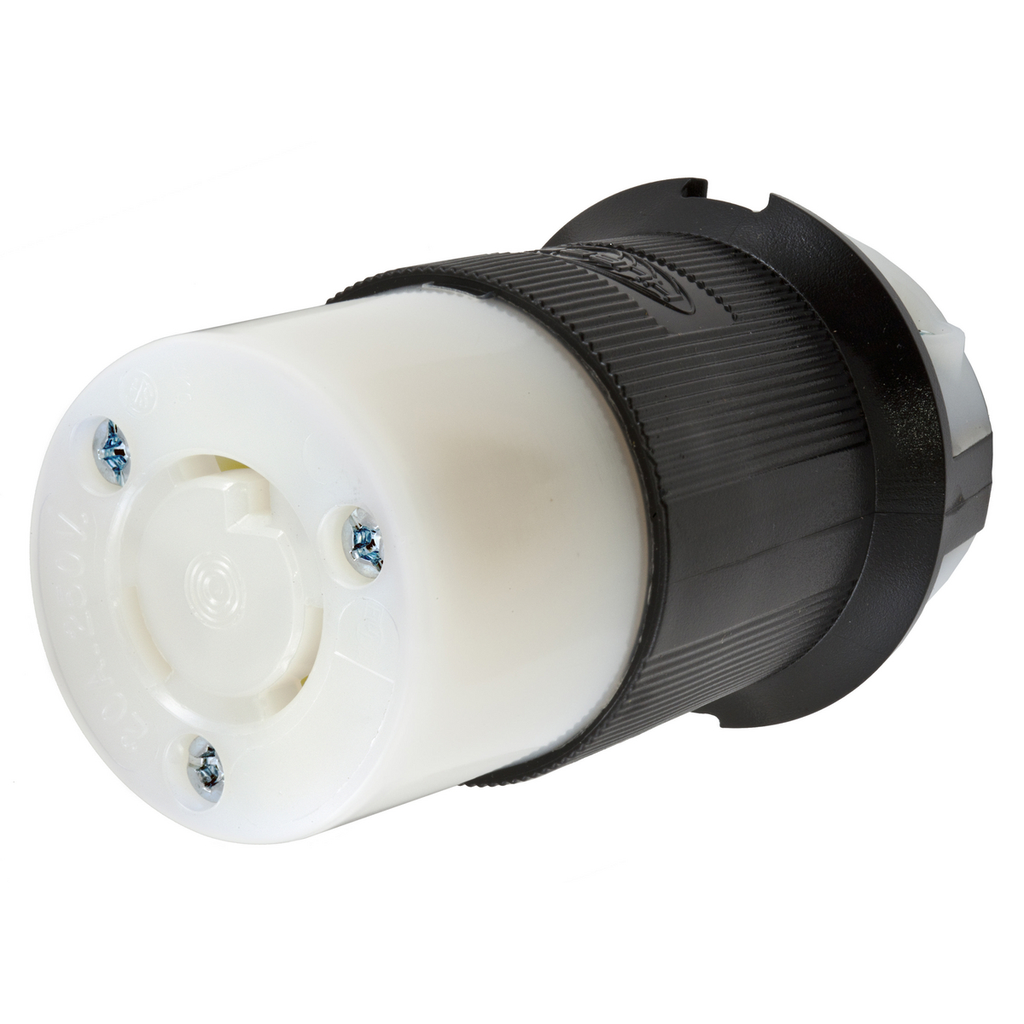

Hubbell Wiring HBL2323 20A 250V Twist-Lock INSULGRIP Black & White Nylon Connector Body

Product Description

The Hubbell HBL2323 is a twist-lock connector body rated for 20 Amps and 250 Volts. It features a two-pole, three-wire grounding design, conforming to NEMA L6-20R standards. This connector body is made from black and white nylon, offering durability for industrial applications.

• Robust nylon housing ensures a secure grip and high resistance to impacts and chemicals.
• Design includes a clear, funnel-shaped wire entry to simplify termination.
• Integral dust shield protects the wiring compartment from dust and contaminants.

Product Highlights

The HBL2323 is ideal for heavy-duty industrial use. It is built for reliability in demanding environments and meets various standards for safety and performance.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBL2323

Technical Specifications

• Connector Type: Twist-Lock
• Amperage: 20 Amp
• Voltage: 250 Volt AC
• Poles: 2
• Wires: 3 Wire
• Weight: 0.30 lb
• Dimensions: 2.26 in (bottom dia) x 3.86 in (length)
• Material: Composite
• NEMA Rating: L6-20R
• Temperature Rating: -40 to 75 degrees C
• Flammability Rating: HB or better per UL 94
