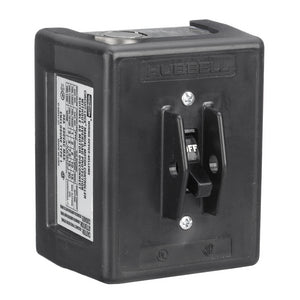

HUBBELL WIRING HBL1389 Circuit-Lock NEMA 1 Enclosure Toggle Switch Disconnect 30A 600V AC

Product Description

The HUBBELL WIRING HBL1389 Circuit-Lock NEMA 1 Enclosure Toggle Switch Disconnect is built with a thermoplastic cover and a plated steel base. This switch is ideal for surface-mounted controls and can be locked in the OFF position for compliance with OSHA lockout/tagout procedures. It allows for versatile wire entry through its wiring conduit knockouts.

• Thermoplastic cover ensures durability.
• Accommodates top, bottom, or back wiring.
• Designed for safety and compliance.

Product Highlights

This toggle switch is designed for industrial control applications where safety is paramount.

Product Information

Standard Information

• Catalog Number: HBL1389
• UPC: 783585680910

Technical Specifications

• Load Capacity: Inductive
• Operating Cycles: 10,000 Cycles Minimum
• Phase: Three Phase
• Wattage: 18000 W
• Wire Size: #10 AWG
• Dielectric Strength: 2,200V AC minimum for 1 minute
• Amperage Rating: 30 A
• Height: 3.4 inches
• Length: 4.52 inches
• Width: 3.97 inches
