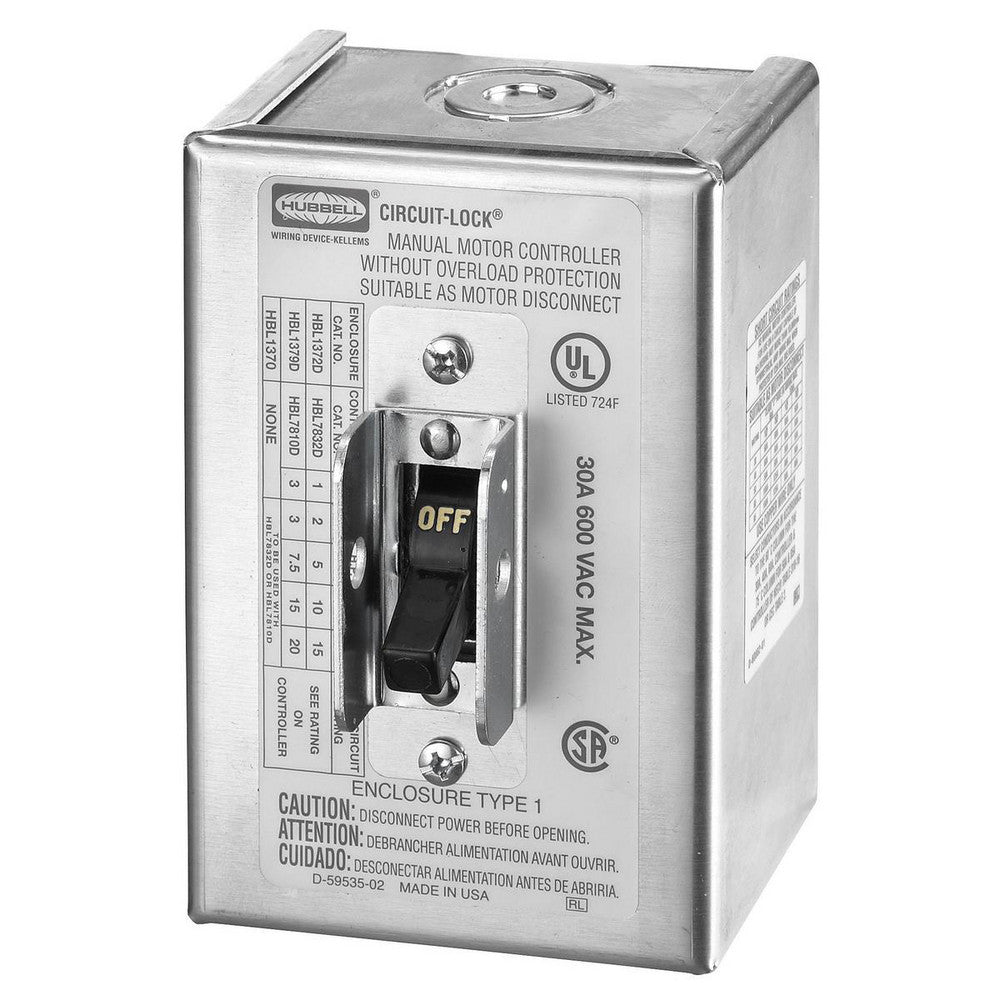

Hubbell Wiring HBL1372 Circuit-Lock NEMA 1 Enclosure Toggle Switch Disconnect 30A 600V AC

Product Description

The Hubbell Wiring HBL1372 is a Circuit-Lock NEMA 1 enclosure toggle switch disconnect designed for reliable electrical isolation. This device is rated for thirty amperes and six hundred volts alternating current. It features an all-aluminum construction with pre-drilled holes for easy rear surface mounting. This ample design includes wiring conduit knockouts for half-inch and three-quarter inch NPT connections, supporting diverse installation needs.

• All aluminum cover and base
• Base pre-drilled for rear surface mounting
• Wiring conduit knockouts for half-inch and three-quarter inch NPT

Product Highlights

This disconnect switch ensures compliance with OSHA lockout/tagout standards and is suitable for industrial environments.

Product Information

Standard Information

• Catalog Number: HBL1372
• OEM Brand Name: Hubbell Wiring Device-Kellems

Technical Specifications

• Load Capacity: Inductive
• Amperage Rating: 30 A
• Voltage Rating: 120/240/480/600 VAC
• Number of Poles: 2
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without impact
• Dielectric Strength: 2,200V AC minimum for one minute
• Industry Standard(s): CSA-C22.2 No.14, UL 508
• IP / NEMA Rating: NEMA 1
• Current Rating: 30 AMPS
• Enclosure Material: Aluminum
• Switch Disconnector Terminal Style: Box Terminal
• Power Rating: 2 HP at 120 VAC 1-Phase, 5 HP at 240 VAC 1-Phase
