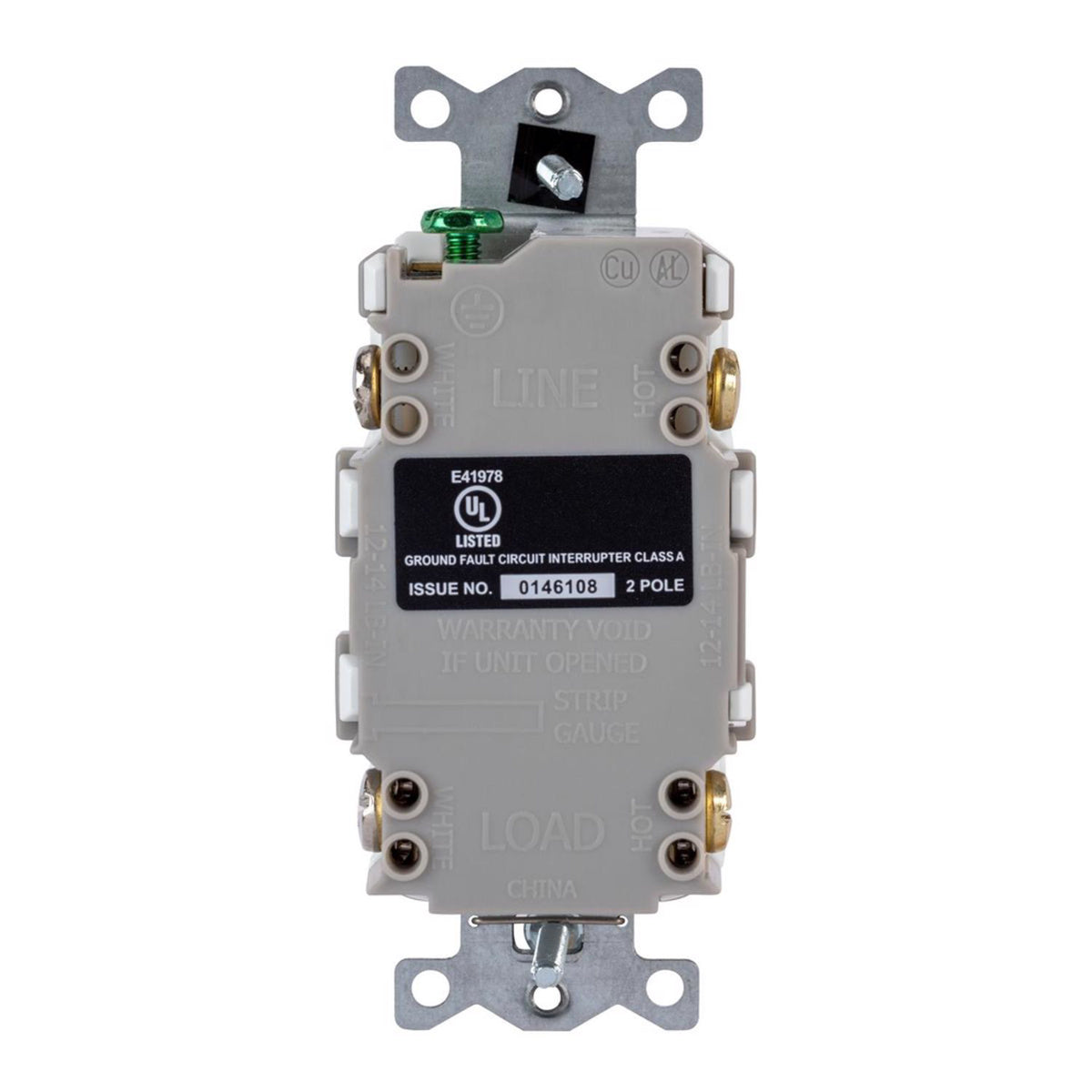

Hubbell Wiring GFR15 Receptacle Self Test GFCI 15A 125V

Product Description

The Hubbell Wiring GFR15 is a receptacle designed for safety with self-test GFCI functionality. Rated at fifteen amperes and one hundred twenty-five volts, this device features AUTOGUARD self-test technology that constantly checks its performance. If any vital components fail, it disconnects power to ensure safety. The receptacle includes visual indicators that show power status, trip condition, ground fault detection, and end-of-life alerts. In cases of reverse wiring, power is automatically shut off.

• Patented AUTOGUARD self test technology
• Quick and secure termination with internal back wiring clamp
• Single LED status indicator for power management

Product Highlights

This device provides ongoing self-testing and clear visual indicators to help ensure safety and operational status.

Product Information

Standard Information

• Catalog Number: GFR15
• Base Material: Nylon

Technical Specifications

• Face Material: Nylon
• Ground Contacts: Brass
• Mounting Screws: Zinc plated steel
• Mounting Strap: Zinc plated steel
• Power Contacts: Brass
• Style: Standard
• Type: Standard
• Industry Standard(s): Meets all NEC Requirements
• Nema Rating: 5-15R
• Number of Phases: 1 Phase
• Device Configuration: Duplex Receptacle
• Voltage: 125 V
• Mounting Type: Box
• Design: Decorator
• Wiring Method: Back and Side Wired
• Illumination: LED Indicator Light
• Amperage: 15 A
• Grade: Commercial
• Ground Type: Grounding
• Pole/Wire: 2P3W
• Width: 3.1 in
