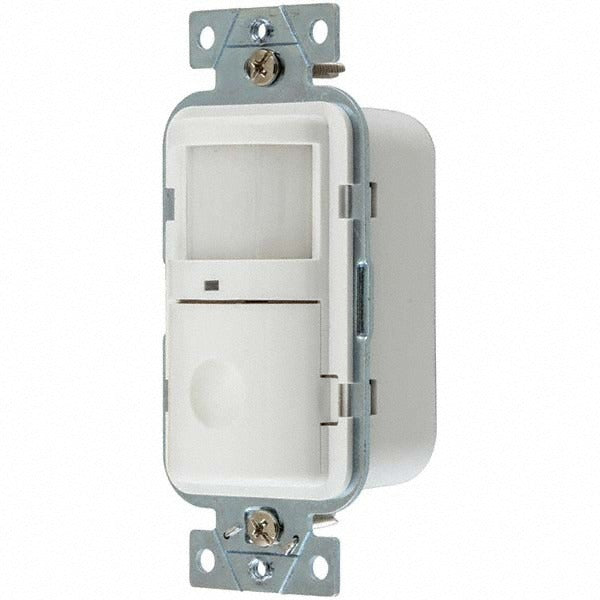

Hubbell Wiring Device-kellems WS1001W Vacancy Sensor Switch

Product Description

The HUBBELL WIRING DEVICE-KELLEMS WS1001W is a passive infrared vacancy sensor wall switch designed for indoor lighting control. Unlike an occupancy sensor, a vacancy sensor requires manual activation and turns off automatically when no motion is detected within the coverage zone. This switch covers up to 1200 square feet with a 180-degree detection pattern and supports manual delay adjustment, giving the installer direct control over the off-delay timing. It is rated for use with CFL, fluorescent, incandescent, and LED fixtures, making it a versatile retrofit or new-installation solution. Electricians and lighting controls technicians install this device in place of a standard single-pole wall switch.

This vacancy sensor is suited for indoor commercial and residential environments where energy savings from automatic shutoff are a priority. Typical applications include private offices, conference rooms, storage areas, and residential rooms where occupants prefer manual-on control. The white finish matches standard decorator wallplates. The 180-degree field of view and 1200 square foot coverage make it appropriate for medium-sized rooms. It is compatible with CFL, fluorescent, incandescent, and LED fixture types, covering the full range of common lamp loads encountered in retrofit work.

Key Features

• Vacancy sensor operation: manual on, automatic off when space is unoccupied
• Passive infrared sensor with 180-degree detection pattern
• 1200 square foot coverage area
• Manual delay adjustment for off-delay timing control
• Compatible with CFL, fluorescent, incandescent, and LED fixtures
• cULus Listed to UL 773A

Compatibility

Rated for use with CFL, fluorescent, incandescent, and LED fixtures in indoor environments.

Installation Notes

Installation is performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize the circuit at the breaker panel and verify zero voltage with a meter before removing the existing switch. Mount the device in a standard single-gang wall box and secure the wallplate before restoring power. Adjust the manual delay setting after power-up to confirm proper off-delay operation under job conditions.
