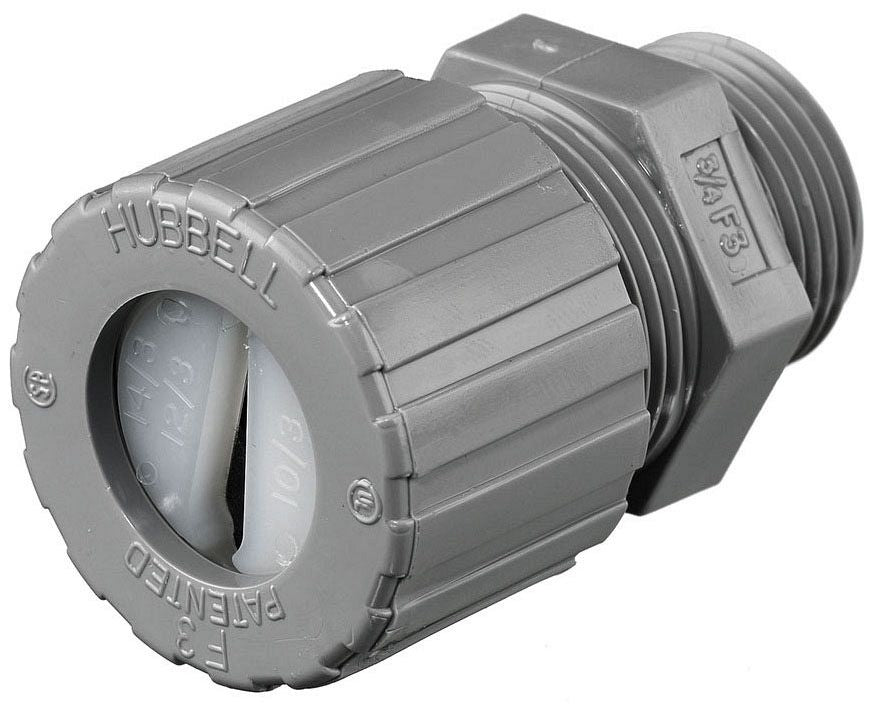

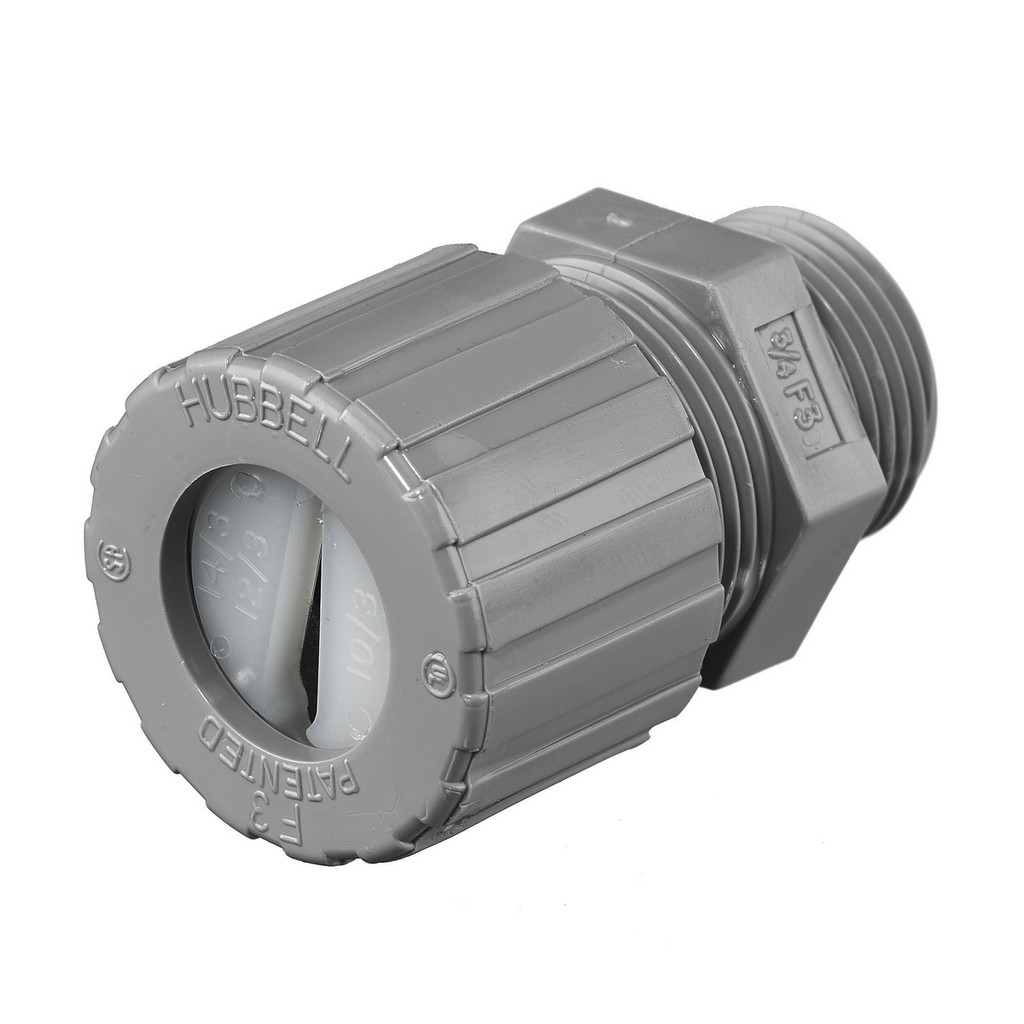

Hubbell Wiring Device-Kellems UFC0001CR Wiring Device-Kellems Standard Duty Underground Feeder Straight Cord Connector 1/2 in UFC0001CR

Product Description

The Hubbell Wiring Device-Kellems UFC0001CR is a standard duty underground feeder straight cord connector designed for reliable electrical connections. It features a 1/2 inch trade size with a capacity for one conductor. The cable openings range from two hundred to four hundred thousandths of an inch to two hundred fifty to five hundred fifty thousandths of an inch. This connector is compliant with various industry standards and is suitable for use in wet locations with a listed nylon washer placed between the box and fitting.

• Standard duty design for underground applications
• Compatible with jacketed UL listed cables
• Temperature rated from negative thirty to two hundred twenty-five degrees Fahrenheit

Product Highlights

The UFC0001CR connector is ideal for ensuring secure connections in hazardous environments and is made from durable nylon material.

Product Information

Standard Information

• Part Number: UFC0001CR
• Brand: Hubbell Wiring Device-Kellems

Technical Specifications

• Type: Underground Feeder, Straight
• Color: Gray
• Material: Nylon
• Temperature Rating: -30 to 225 degrees F
• Connection Type: MNPT
• Conductor Range: 0.2 x 0.4 in to 0.25 x 0.55 in
• NEMA Rating: IP66
• Standards: UL Listed, RoHS Compliant, CSA Certified
