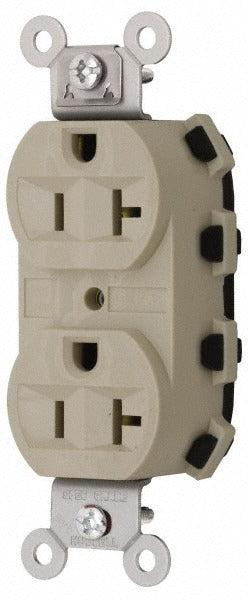

Hubbell Wiring Device-kellems SNAP5362LAA 20A 125V Duplex Receptacle

Product Description

The HUBBELL WIRING DEVICE-KELLEMS SNAP5362LAA is a specification-grade duplex receptacle rated for 20 amps at 125 volts AC. Built with a nylon body and a self-grounding design, it installs flush-mount and uses a wiring module termination method for consistent, reliable connections. The NEMA 5-20R configuration accepts standard 20-amp straight-blade plugs. This receptacle is finished in white and is intended for commercial and light industrial electrical installations where code-compliant, durable outlets are required. Licensed electricians typically specify this grade of device for office buildings, healthcare facilities, schools, and other occupancies where long service life and code compliance matter.

The SNAP5362LAA is suited for single-phase, 3-wire, 2-pole flush-mounted applications. Its specification grade construction meets the demands of commercial settings where receptacles see frequent plug cycling. The NEMA 5-20R outlet accepts both 15-amp and 20-amp straight-blade plugs, making it broadly compatible with standard 20-amp branch circuits. The wiring module termination simplifies installation and supports consistent torque-free connections in high-volume wiring situations.

Key Features

• Specification grade nylon body for durability in commercial and institutional environments
• Self-grounding design eliminates the need for a separate ground pigtail
• NEMA 5-20R configuration rated 20 amps at 125 volts AC
• Wiring module termination method for fast and consistent connections
• Flush mount, single-phase, 2-pole, 3-wire configuration
• CSA Certified, UL Listed, UL Federal Specification, and RoHS Compliant

Compatibility

Designed as an OEM-style specification-grade duplex receptacle for standard 20-amp, 125-volt single-phase branch circuits using NEMA 5-20R wiring configurations in flush-mount electrical boxes.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the branch circuit at the panel and verify absence of voltage with a meter before beginning work. The self-grounding feature requires proper metal box contact to function correctly — verify box grounding continuity during installation. Do not exceed the 20-amp circuit rating.
