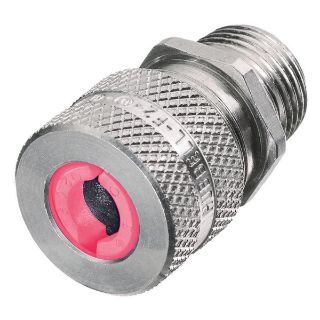

Hubbell Wiring Device-Kellems SHC1044 HWD Straight Cord Connector 1 in 1 to 1.13 in

Product Description

The Hubbell Wiring Device-Kellems SHC1044 is a cord connector designed for various electrical applications. It features a trade size of one inch and accommodates cable openings from one to one point thirteen inches. The construction is aluminum, providing durability in demanding environments. This connector is suitable for use in wet locations when paired with a listed nylon washer between the box and fitting.

• Form 4 flexible standard straight design
• Temperature range from negative thirty to two hundred twenty-five degrees Fahrenheit
• NEMA rated for type 4, 4X, 12, and 13 environments

Product Highlights

The SHC1044 assures a strong seal with machined threads and offers pullout protection due to the lubricated neoprene bushing.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Part Number: SHC1044

Technical Specifications

• Material: Aluminum
• Type: Form 4 Flexible Standard Straight
• Size: 1 Inch
• Dimensions: 1.75 in Diameter x 2.31 in Length
• Connection Type: MNPT
• Temperature Rating: -30 to 225 deg F
• Cable Openings: 1 to 1.13 in
• Number of Conductors: 1
