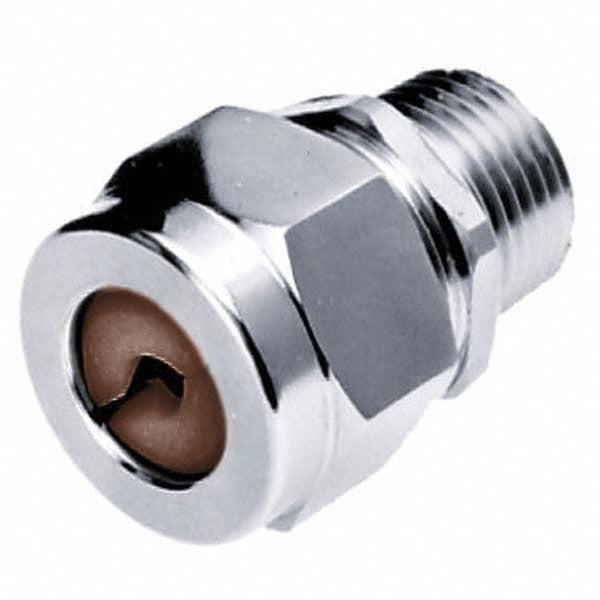

Hubbell Wiring Device-kellems SHC1034ZP Cord Grip 3/4 Npt

Product Description

The HUBBELL WIRING DEVICE-KELLEMS SHC1034ZP is a straight strain relief cord grip designed to secure and protect electrical cables at conduit entry points. It accepts cables ranging from 0.5 to 0.63 inches in diameter and threads into a standard 3/4-inch NPT fitting. The body is zinc-plated steel, giving it corrosion resistance suitable for general industrial and commercial wiring applications. At 1.27 inches overall length, it installs in tight spaces without adding significant profile. The IP66 ingress protection rating means the assembly resists dust intrusion and powerful water jets, making it appropriate for demanding environments. Electricians and maintenance technicians install this component wherever a cable enters a junction box, enclosure, or conduit body and needs mechanical strain relief.

This cord grip is suited for general-duty wiring applications in residential, commercial, and light industrial settings. It is a straight-entry style, meaning the cable runs in line with the conduit thread rather than at an angle. Typical installations include control panels, motor junction boxes, electrical enclosures, and any entry point where cable pull-out force or vibration could stress a termination. The 3/4-inch NPT thread is one of the most common conduit entry sizes found in standard electrical enclosures, making this a frequently stocked item for service work and panel builds.

Key Features

• Straight conduit entry style for in-line cable routing
• Accepts cable diameters from 0.5 to 0.63 inches
• 3/4-inch NPT thread fits standard electrical enclosure knockouts
• Zinc-plated steel construction for corrosion resistance
• IP66 rated - dust-tight and protected against powerful water jets
• Compact 1.27-inch overall length for space-constrained installs

Compatibility

Designed as an OEM-style strain relief fitting for standard 3/4-inch NPT electrical enclosure entries in general conduit wiring applications.

Installation Notes

This fitting is installed by licensed electricians and is subject to applicable NEC requirements for cable and conduit systems. De-energize and lock out the enclosure or panel before installing or servicing any cord grip. Hand-tighten the fitting into the NPT entry first, then use an appropriate wrench to achieve a secure, leak-resistant seal without over-stressing the zinc-plated body. Ensure the cable diameter falls within the 0.5 to 0.63-inch rated range before torquing the grip down to avoid damage to the cable jacket.
