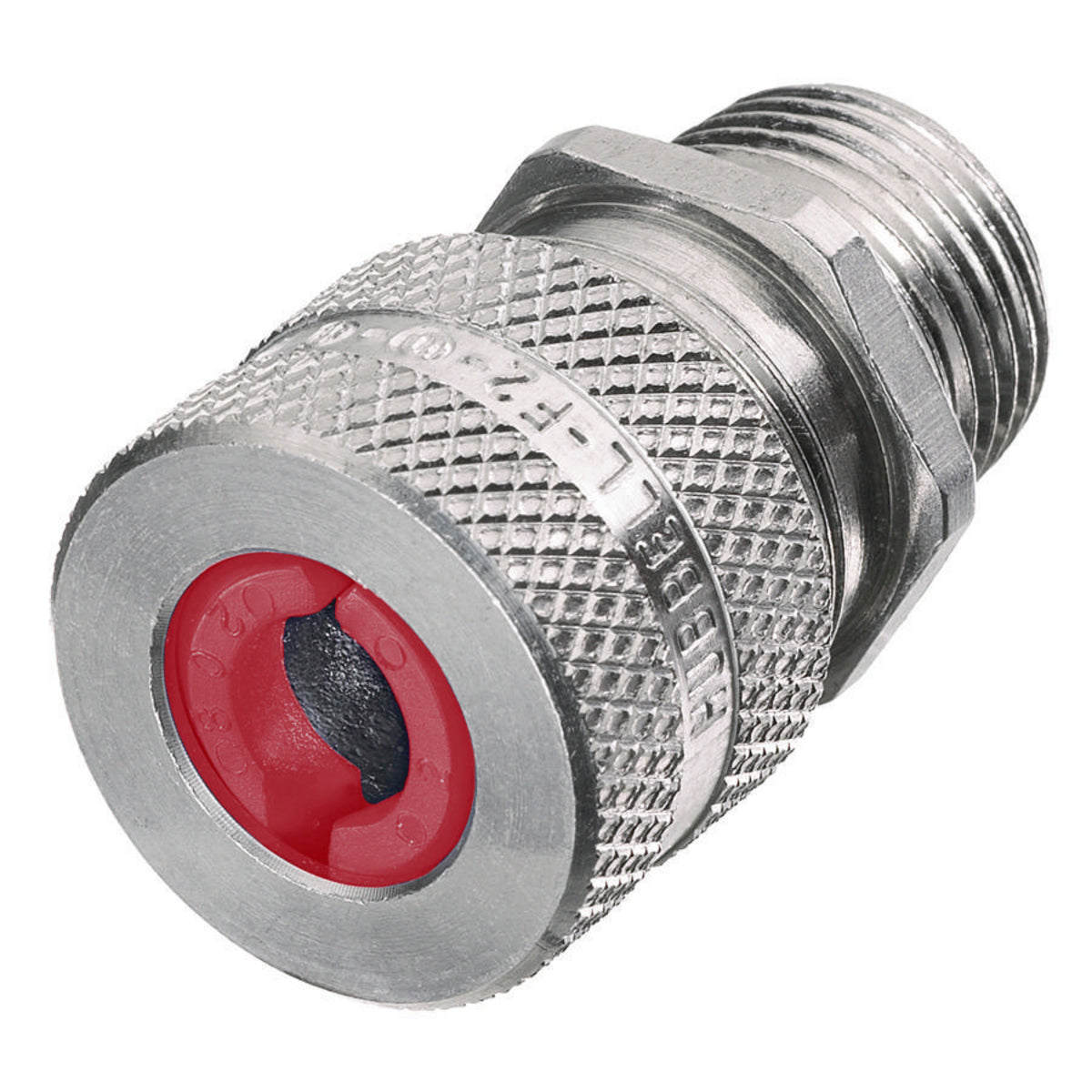

Hubbell Wiring Device-Kellems SHC1031 HWD Straight Cord Connector 3/4 Inch

Product Description

Hubbell Wiring Device-Kellems offers the SHC1031 cord connector designed for flexible applications. This product features a machined aluminum construction, making it suitable for a range of environments. It is designed for use with jacketed cables and allows for connections with cable openings ranging from 0.19 to 0.25 inches.

• Durable aluminum material withstands various conditions.
• Includes a patented GOTCHA ring for strain relief.
• Meets NEMA 4/4X/12/13 enclosure standards.

Product Highlights

The SHC1031 cord connector is ideal for wet locations when used with a nylon washer between the box and fitting. It operates effectively across a wide temperature range of -30 to 225 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: SHC1031

Technical Specifications

• Material: Aluminum
• Dimensions: 1.13 inches Diameter x 1.65 inches Length
• Trade Size: 3/4 inch
• Cable Openings: 0.19 to 0.25 inches
• Connection Type: MNPT
• Temperature Rating: -30 to 225 degrees Fahrenheit
• Number of Conductors: 1
• Compliance: CSA Certified, UL 514B
