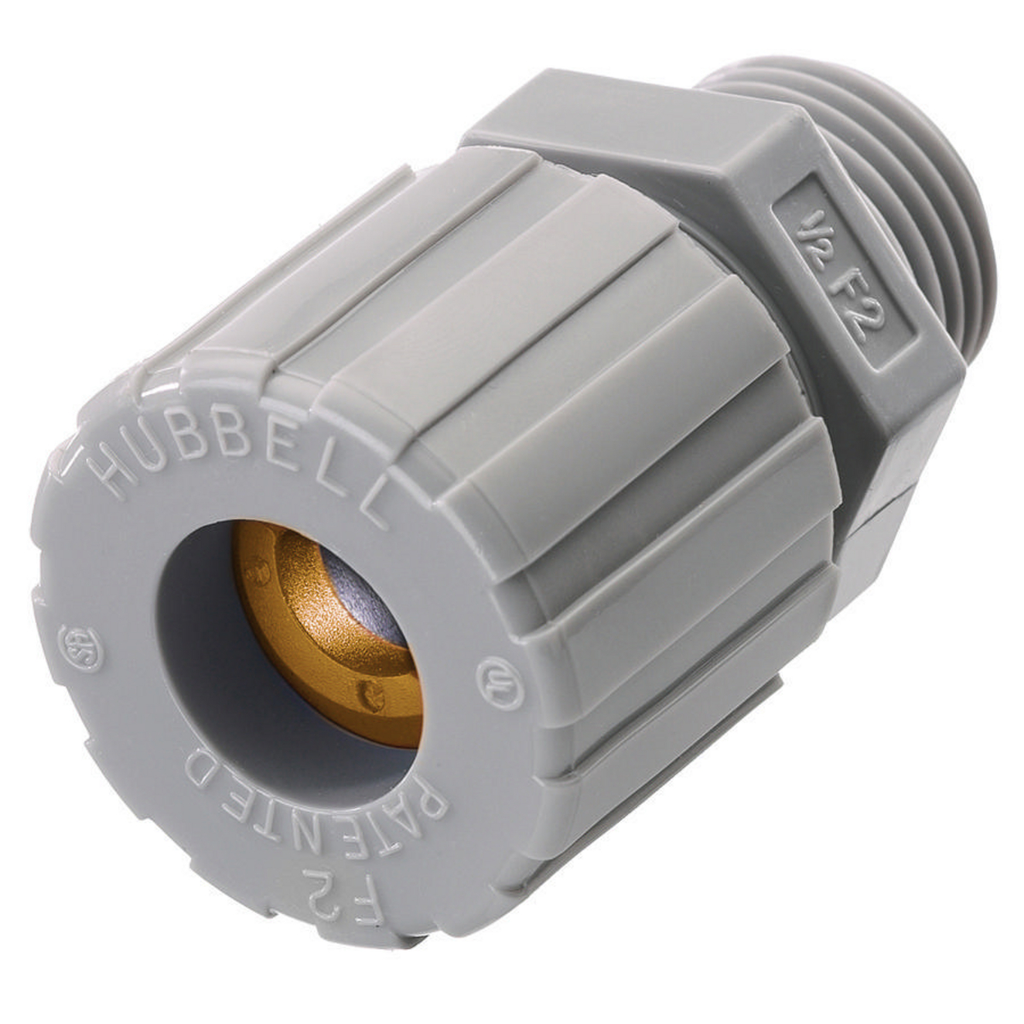

Hubbell Wiring Device-Kellems SHC1020CR HWD 1/2 in Standard Duty Straight Cord Connector

Product Description

The Hubbell Wiring Device-Kellems SHC1020CR is a standard duty straight cord connector designed for reliable electrical connections. This nylon connector accommodates 1/2 inch trade sizes and supports cable openings from 0.13 to 0.19 inches. It is suitable for various applications, especially in wet locations when used with a listed nylon washer between the box and fitting.

• Nylon construction resists industrial corrosives
• Effective pullout protection
• Operates in temperatures from -30 to 225 degrees Fahrenheit

Product Highlights

The SHC1020CR is built for durability and compliance with industry standards. Ideal for use in both standard and hazardous locations.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: SHC1020CR

Technical Specifications

• Dimensions: 1.32 inches diameter x 2.03 inches length
• Material: Nylon
• Trade Size: 1/2 inch
• Number of Conductors: 1
• Temperature Rating: -30 to 225 degrees Fahrenheit
• Connection Type: MNPT
• Standards: CSA Certified, UL 514B
• Cable Type: Jacketed
