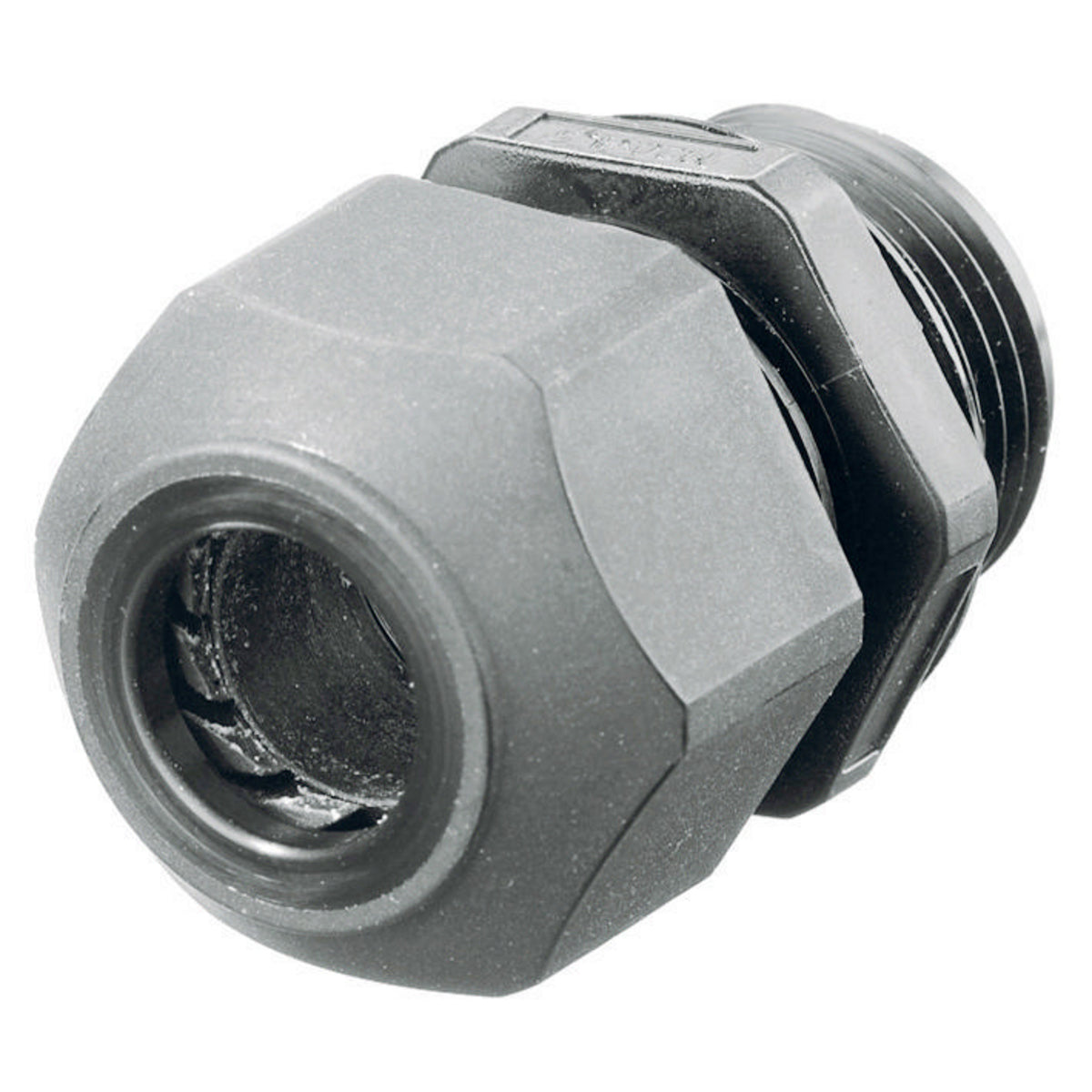

Hubbell Wiring Device-Kellems SEC100GA SEC European Style Low Profile Non-Metallic Standard Straight Cord Connector

Product Description

The Hubbell Wiring Device-Kellems SEC100GA is a cord connector designed for low profile applications. Made from nylon, this connector has a trade size of one inch and can accommodate jacketed cables ranging from zero point fifty-nine to one inch in diameter.

• Compatible with nylon washers for wet locations.
• Temperature rated between minus twenty-two to two hundred twenty-five degrees Fahrenheit.
• UL listed for safety and performance.

Product Highlights

The SEC100GA features a smooth finish and is intended for applications involving wet environments. It is ideal for cable management in various electrical systems.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Part Number: SEC100GA HWD
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Material: Nylon
• Trade Size: 1 inch
• Dimensions: 1.73 inches diameter x 2.41 inches length
• Connection Type: MNPT
• Number of Conductors: 1
• Cable Openings: 0.59 to 1 inch
• Temperature Rating: -22 to 225 degrees F
• Standards: CSA Certified, RoHS Compliant, UL 514B
