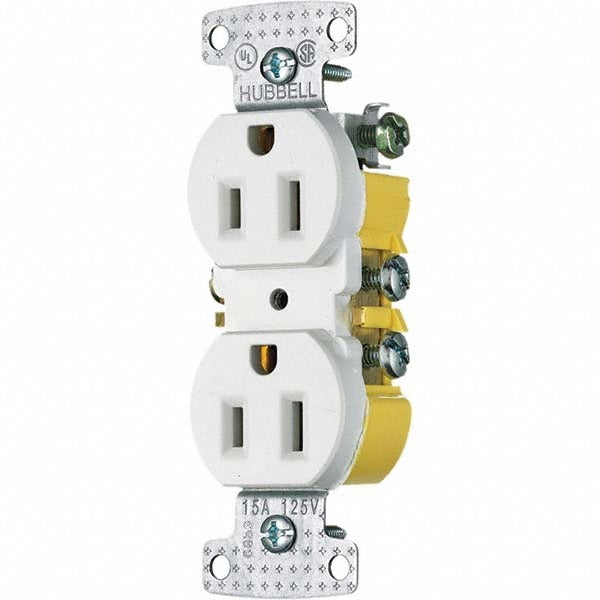

Hubbell Wiring Device-kellems RR15W Duplex Receptacle Nema 5-15R

Product Description

The HUBBELL WIRING DEVICE-KELLEMS RR15W is a residential-grade straight blade duplex receptacle rated at 15 amps and 125 volts with a NEMA 5-15R configuration. It features a grounded, two-pole, three-wire design and accepts standard straight blade plugs found throughout residential and light commercial wiring. The flush-mount thermoplastic body measures 4.19 inches tall, 1.3 inches long, and 0.93 inches wide, fitting standard single-gang outlet boxes. Both push-in and side-wiring terminals are provided, giving installers flexibility during rough-in and finish work. The white finish coordinates with standard wall plates.

This receptacle is suited for residential construction, renovation, and service work where a code-compliant NEMA 5-15R outlet is required. Typical applications include bedroom, living area, kitchen, and general-purpose circuits in single-family homes, apartments, and light commercial spaces. Electricians and qualified contractors install this device during new construction or as a direct replacement for worn or damaged existing receptacles in standard 15-amp branch circuits.

Key Features

• NEMA 5-15R configuration rated 15 amps at 125 volts
• Grounded two-pole, three-wire design for safety compliance
• Push-in and side-wiring terminals for installation flexibility
• Flush-mount thermoplastic body fits standard single-gang boxes
• White finish compatible with standard decorator and traditional wall plates
• CSA Certified and UL Listed

Compatibility

Designed as an OEM-style replacement receptacle for residential 15-amp, 125-volt branch circuits requiring a NEMA 5-15R outlet device.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always de-energize the circuit at the breaker panel and verify absence of voltage with a meter before beginning any wiring work. Secure the device firmly in the outlet box and ensure all conductors are properly terminated before restoring power. Do not use push-in terminals on aluminum wiring.
