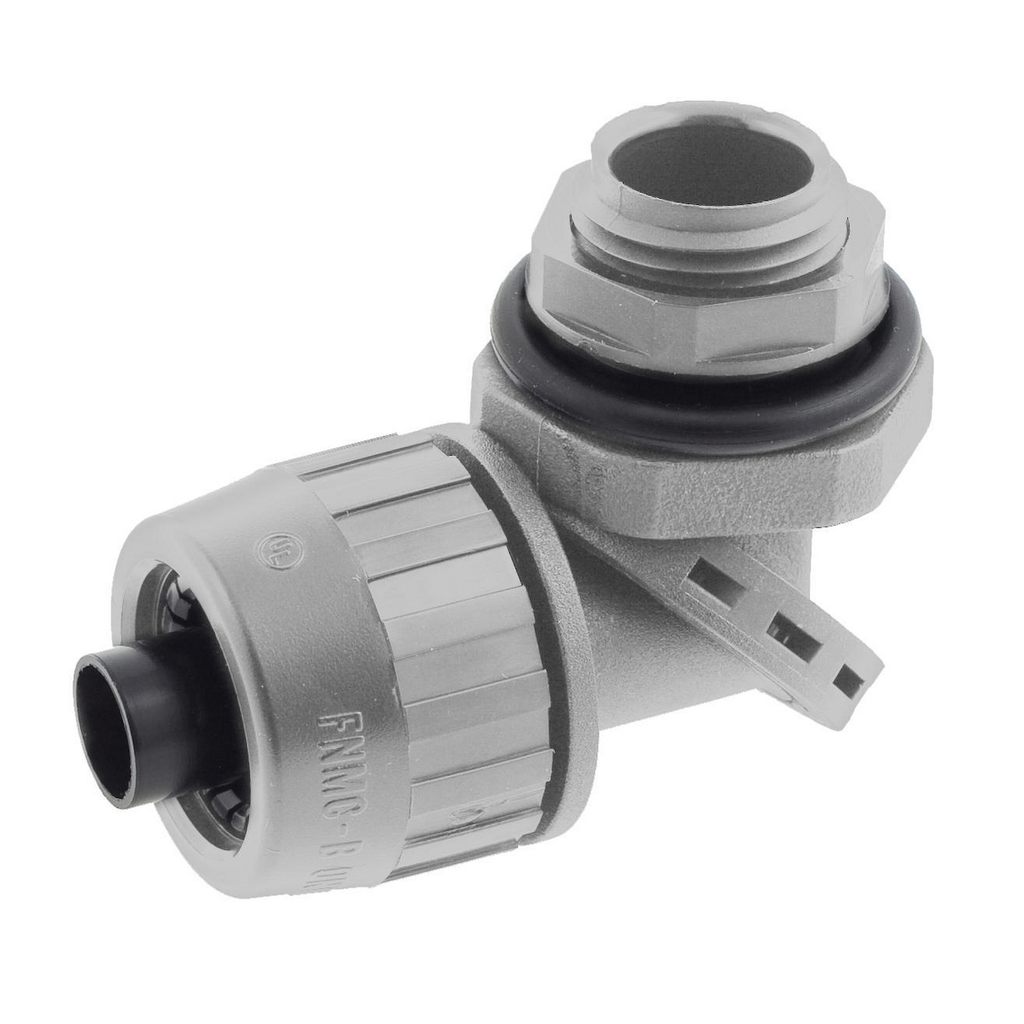

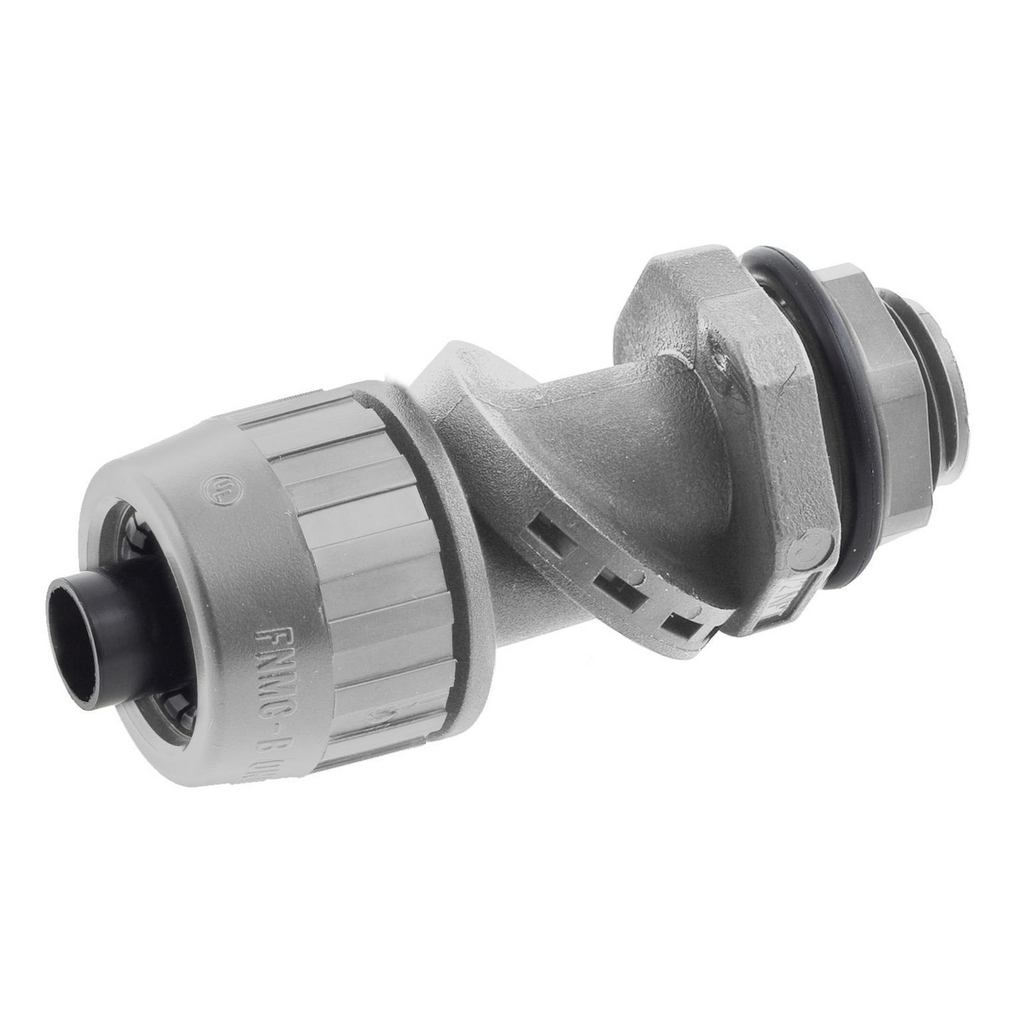

Hubbell Wiring Device-Kellems PS0509NGY 1/2 Inch Gray Male Non-Metallic Liquidtight Conduit

Product Description

The Hubbell Wiring Device-Kellems PS0509NGY is a non-metallic liquidtight conduit connector. This 1/2 inch connector is designed for flexible non-metallic conduit applications. It features a nylon construction which ensures durability and resistance to environmental factors.

• Nylon compression nut designed for a secure fit
• Neoprene O-ring that guarantees a liquidtight seal
• SwivelLok design allows for movement from straight to 90 degrees

Product Highlights

The PS0509NGY connector is suitable for wet locations when paired with a sealing ring. It is certified by CSA and UL, ensuring its safety and reliability in various applications.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: PS0509NGY

Technical Specifications

• Trade Size: 1/2 Inch
• Material: Nylon
• Color: Gray
• Temperature Rating: -40 to 225 degrees C
• Height: 1.2 inches
• Width: 1.390 inches
• Length: 83.1 mm
• Weight: 0.1 lb
• Certifications: CSA Certified, UL Listed
• Environmental Conditions: Suitable for wet locations when using a sealing ring
