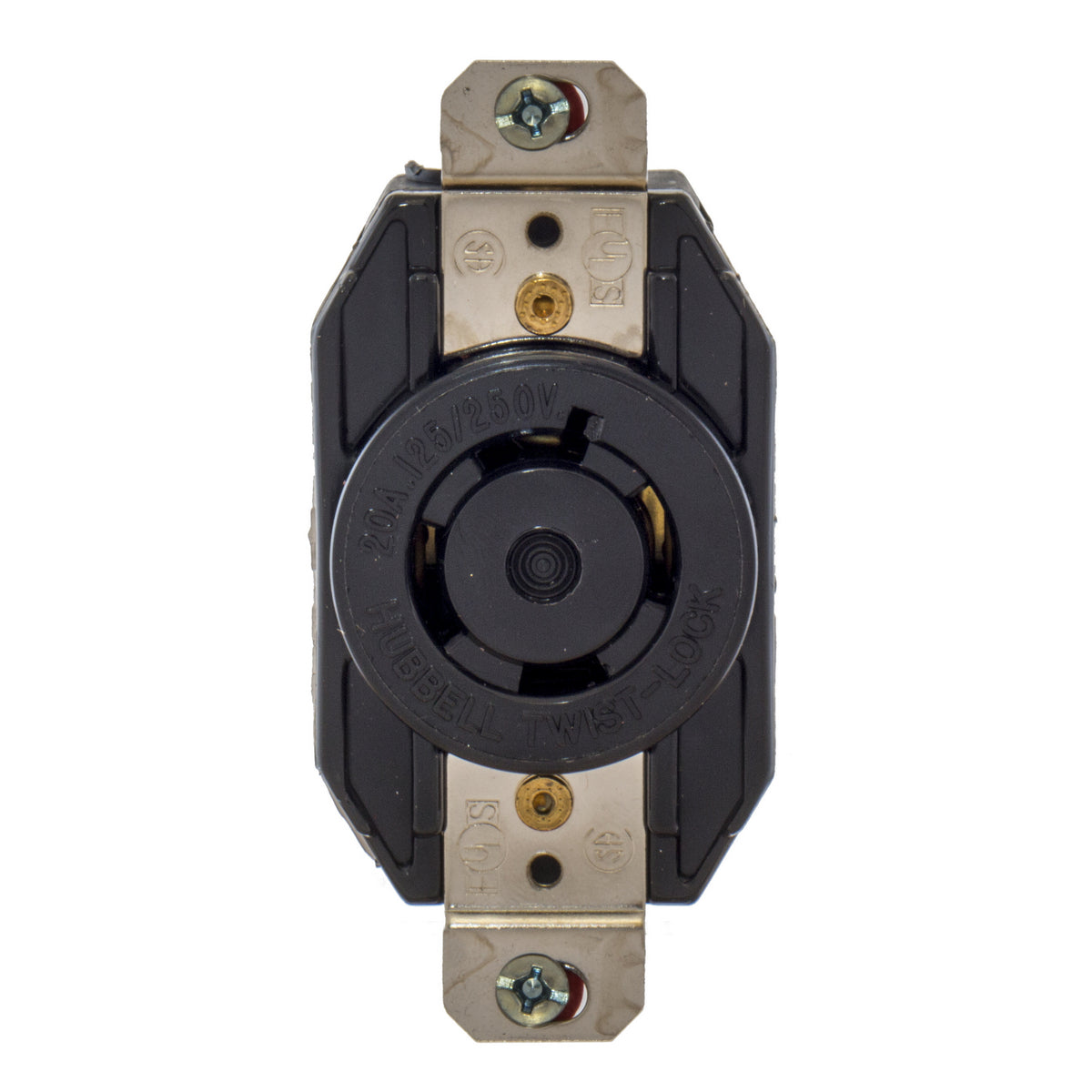

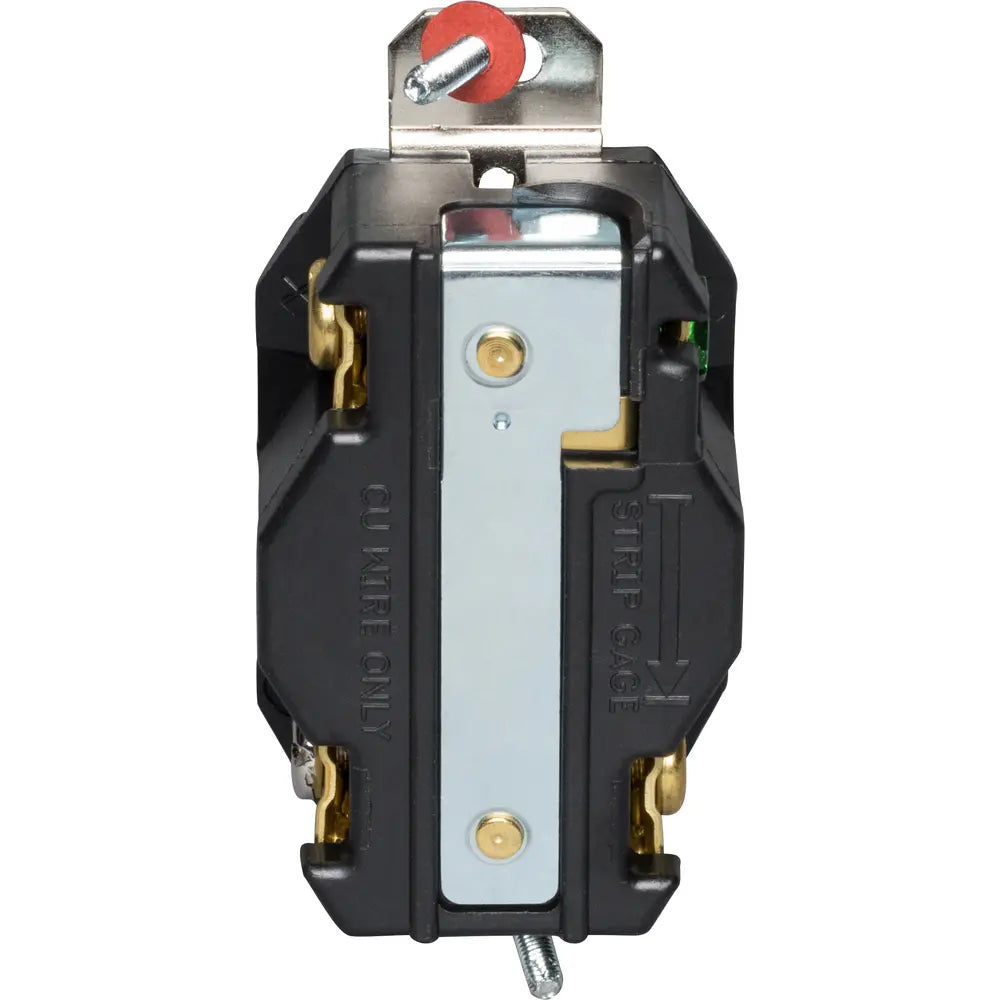

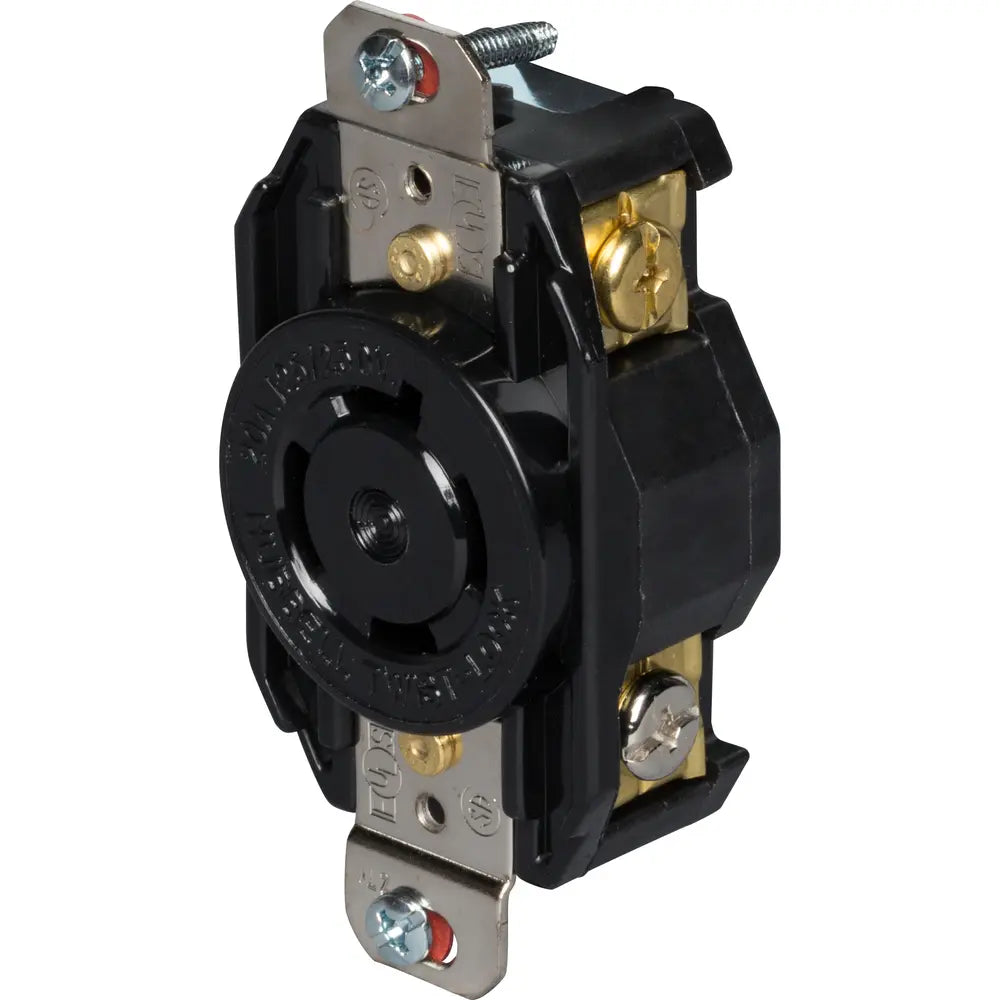

Hubbell Wiring Device-Kellems L1420R Locking Receptacle 1-Phase 125/250 VAC 20 A 3 Poles 4 Wires L14-20R

Product Description

The Hubbell Wiring Device-Kellems L1420R is a reliable locking receptacle designed for secure power connections in various applications. It is rated for one phase, operates at 125/250 VAC, and supports a maximum amperage of 20 A. This receptacle includes three poles and four wires, ensuring it meets the needs of professional electricians and tradespeople.

• Locking interface for secure connections
• Suitable for industrial, MRO, and OEM applications
• Requires screw terminal connections for installation

Product Highlights

Ideal for plant floor equipment wiring, ceiling power drops, extension cords, and portable equipment.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Type: 1-Phase Grounding Standard Single Screw Mount

Technical Specifications

• Voltage Rating: 125/250 VAC
• Amperage Rating: 20 A
• Number of Poles: 3
• Number of Wires: 4
• NEMA Rating: L14-20R
• Material: Thermoplastic
• Temperature Rating: -40 to 85 degrees C
• Dimensions: 1.703 inches wide x 1.234 inches deep
