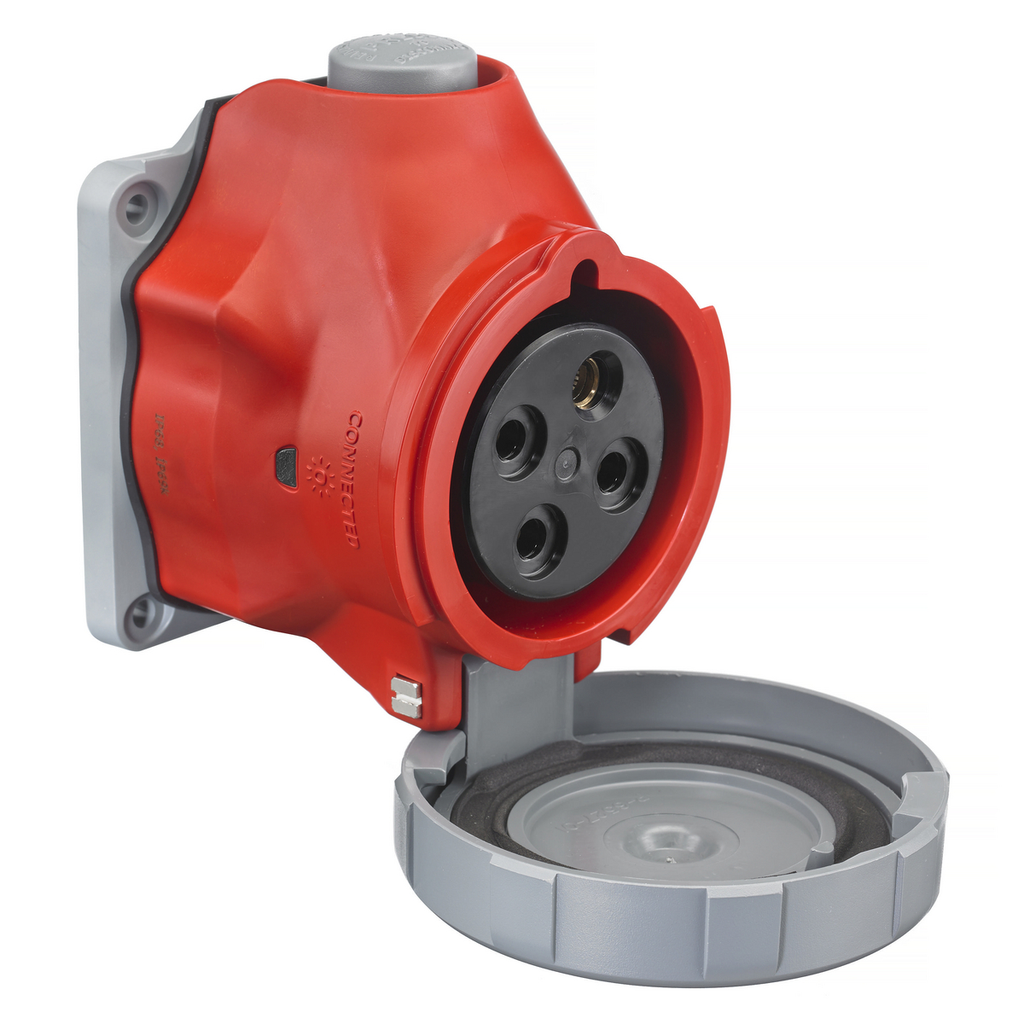

Hubbell Wiring Device-Kellems HBLS430R7W Pin and Sleeve Receptacle 30A 480V 3Pole 4Wire

Product Description

The Hubbell Wiring Device-Kellems HBLS430R7W is a 3-phase heavy-duty non-metallic switched cord mount watertight pin and sleeve receptacle. This product is designed for industrial and commercial applications, ensuring reliable power supply in demanding environments.

• Rated for 480 VAC and 30 A
• Meets NEMA 4X and IP67 standards for water and dust protection
• Compact design fits standard IEC 60309-2 devices

Product Highlights

This device features a robust housing made of UV-stabilized PBT material. It is suitable for use in harsh conditions, including food processing facilities.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• MPN: HBLS430R7W
• Voltage Rating: 480 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 4
• Horsepower: 20 hp
• Temperature Rating: -40 to 75 degrees C
• Material: Brass
• Dimensions: 3.83 in L x 4.5 in W x 3.75 in H
• NEMA Rating: NEMA 4X
• Enclosure: IP67
• Terminal Type: Pressure Screw
