Hubbell Wiring Device - Kellems HBLMRSGN Single Pole Devices 300/400A 600V AC/DC

Product Description

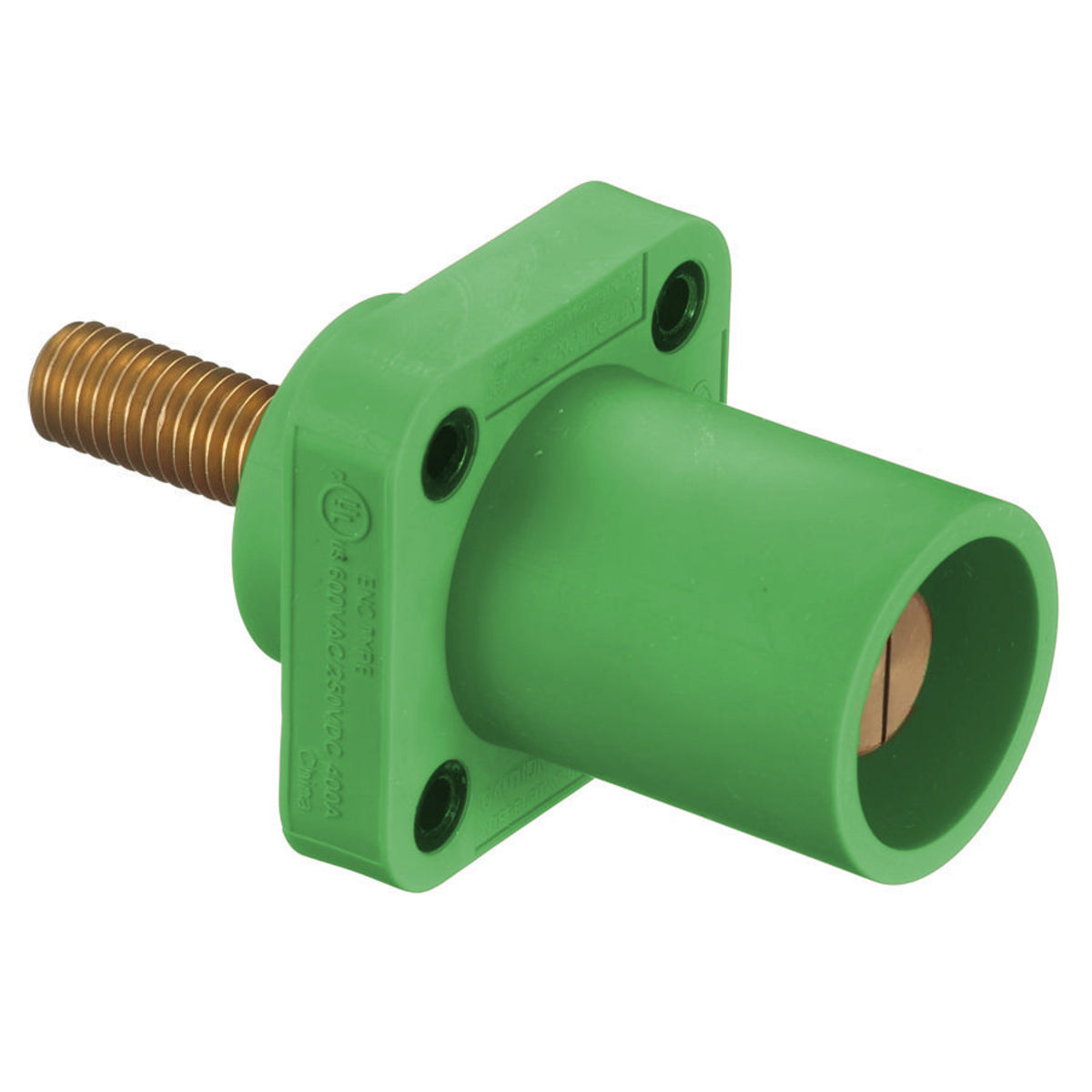

Hubbell Wiring Device - Kellems presents the HBLMRSGN, a single pole male receptacle designed for high amperage applications. The receptacle supports up to three hundred to four hundred amperes and operates at six hundred volts AC or two hundred fifty volts DC. Made with durable thermoplastic, it uses screw terminals for secure and efficient connectivity.

• Rated for three hundred to four hundred amps
• Operable at six hundred volts AC / two hundred fifty volts DC
• Constructed with thermoplastic material

Product Highlights

This receptacle is ideal for temporary power distribution in various demanding environments such as entertainment venues and construction sites.

Product Information

Standard Information

• Catalog Number: HBLMRSGN
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Amperage Rating: 400
• Voltage Rating: 600 AC/250 DC
• Connection Type: Screw Terminals
• Wire Size: #4 AWG to #4/0 AWG
• Number of Poles: 1
• Country of Origin: China
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Applications: High Ampacity Connections
