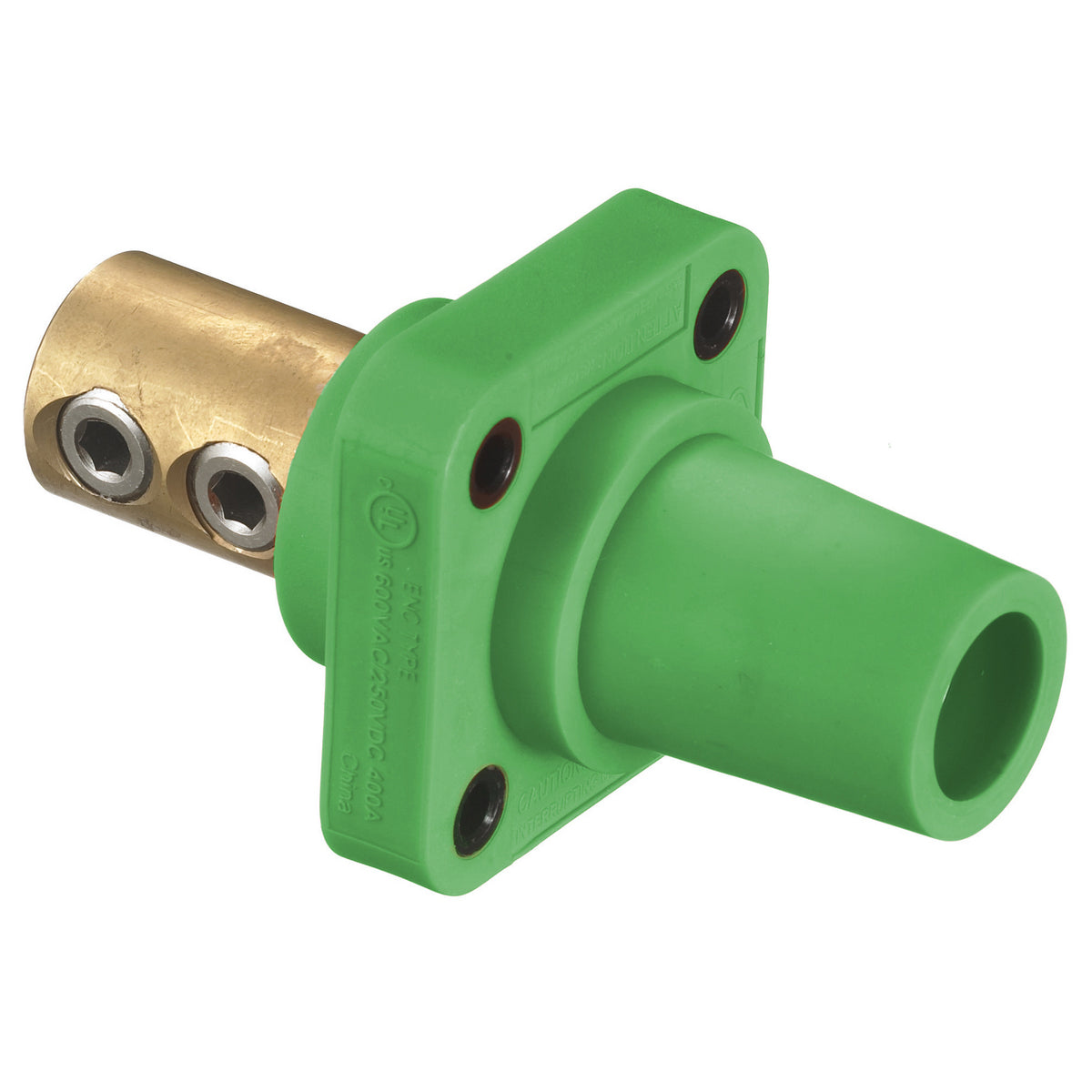

Hubbell Wiring Device - Kellems HBLFRGN Heavy Duty Products, Single Pole Devices, Industrial Grade, Female Receptacle, 300/400A 600V AC/DC, Set Screw, Green

Product Description

The Hubbell Wiring Device - Kellems HBLFRGN is a heavy-duty female receptacle designed for industrial applications. This receptacle is suitable for high ampacity connections and operates at 300/400 amperes and up to 600 volts AC or 250 volts DC. The device features a set screw connection, ensuring a secure and reliable connection in demanding environments.

• Designed for high ampacity connections
• Suitable for both AC and DC applications
• Set screw design for secure connections

Product Highlights

This receptacle caters to various uses such as entertainment, concerts, and temporary power distributions, where reliable power supply is crucial.

Product Information

Standard Information

• Brand: Hubbell Wiring Device - Kellems
• Catalog Number: HBLFRGN

Technical Specifications

• Amperage Rating: 400
• Voltage Rating: 600 AC, 250 DC Max
• Phase: 1
• Number of Wires: 1
• Wire Size: #4 AWG to #4/0 AWG
• Color: Green
• Material: Elastomer
• Mounting: Mounting Holes
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Standard Compliance: NEC, UL and cUL Listed
