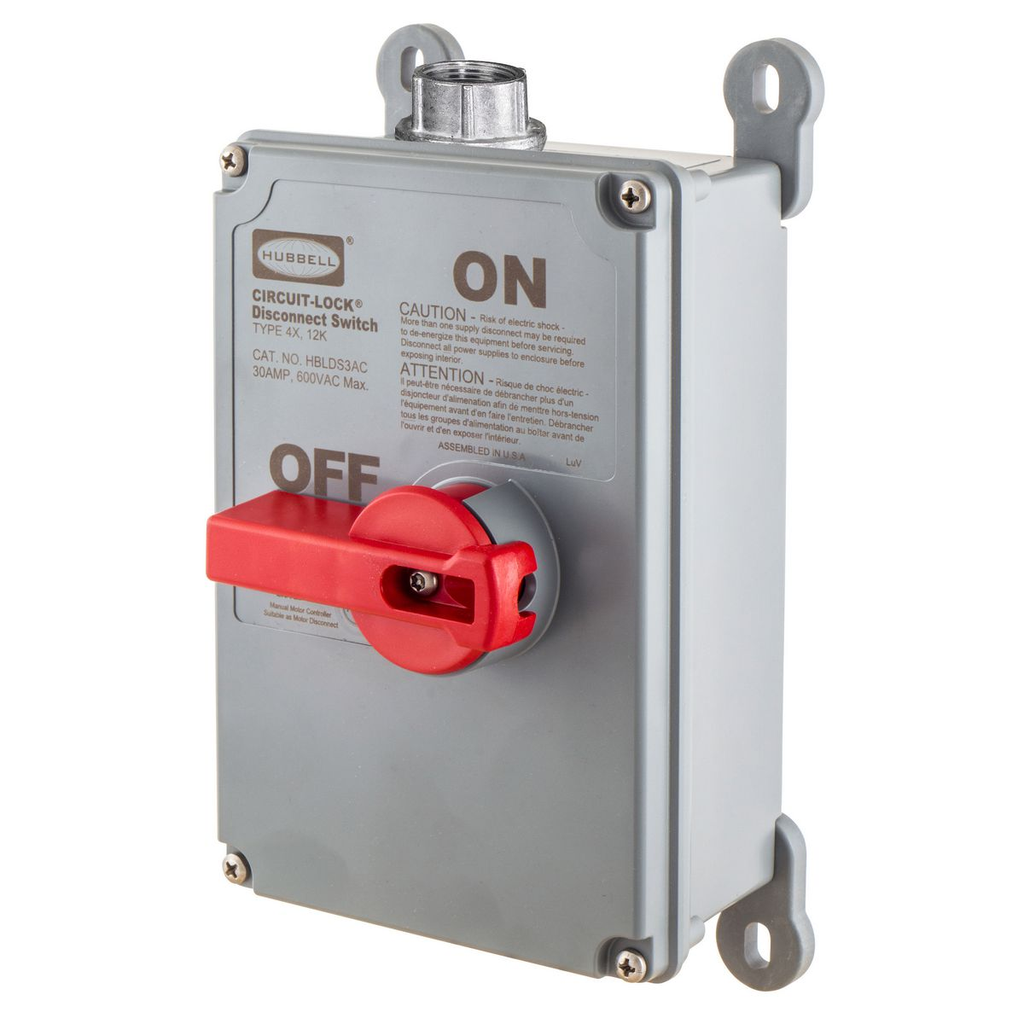

Hubbell Wiring Device-Kellems HBLDS3VFD HWD 30 Amp 3-Phase 3-Pole NEMA 4X Non-Metallic Unfused Disconnect Switch Enclosure

Product Description

The Hubbell Wiring Device-Kellems HBLDS3VFD is a disconnect switch designed for heavy-duty applications. This unfused switch features a standard snap action operation, rated at six hundred volts alternating current and thirty amps. Its robust design makes it suitable for three-phase systems.

• Switch operates in a two-position manner.
• Constructed from non-metallic composite material.
• NEMA 4X/IP69K rated enclosure for durability.

Product Highlights

This switch is ideal for extra heavy-duty industrial applications, including variable frequency drives. Its lever-operated mechanism and screw terminal connections ensure reliable service in demanding environments.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Frequency Rating: 60 Hz
• Dimensions: 8.5 in L x 6 in W x 4.12 in H
• Material: Composite
• Temperature Rating: -40 to -67 degrees C
• Short Circuit Current Rating: 65 kA
