Hubbell Wiring Device-Kellems HBLDS3AC HWD 600V 30A Circuit-Lock Disconnect Switch

Product Description

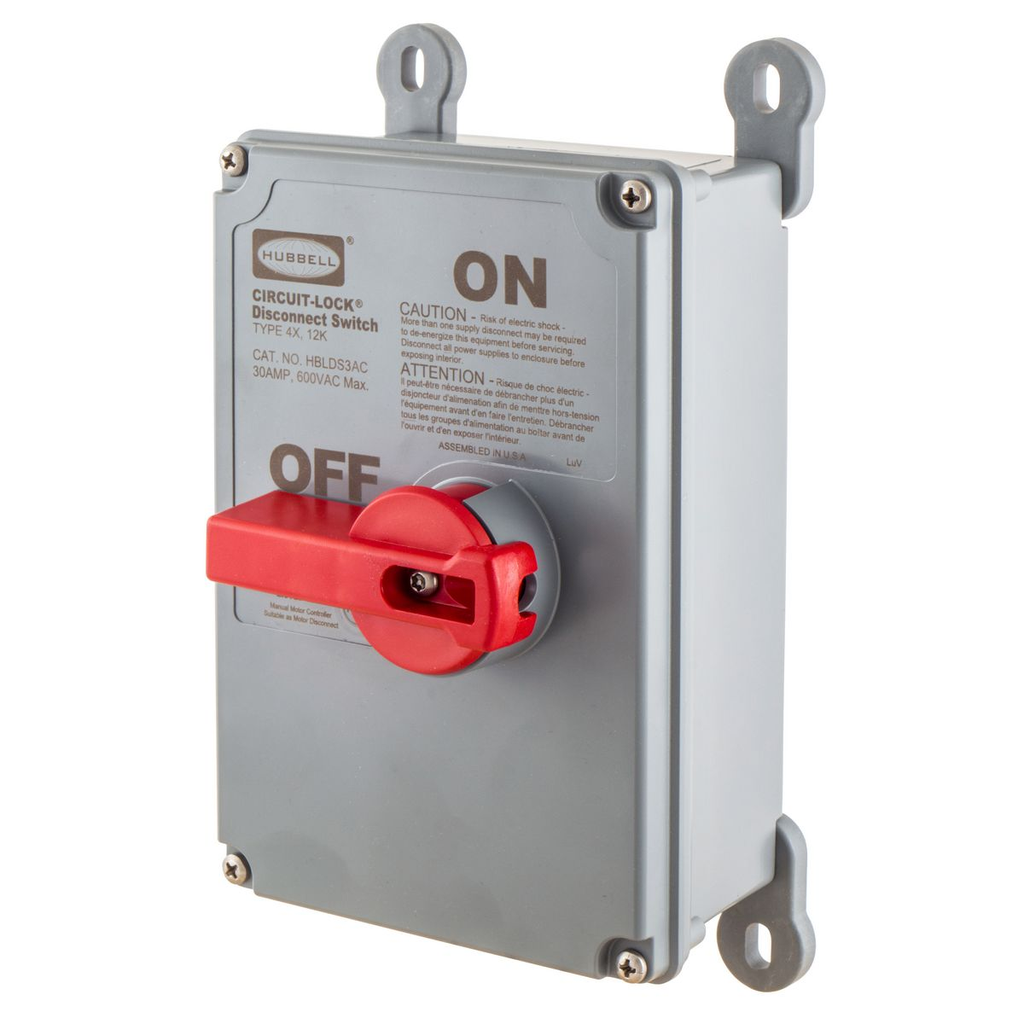

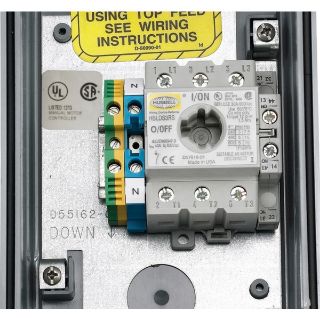

The Hubbell Wiring Device-Kellems HBLDS3AC is a 30 Amp, 600 Volt Circuit-Lock enclosed disconnect switch. This device operates in a 2-position non-fusible configuration and includes auxiliary contacts. It is designed for heavy-duty industrial use and can handle loads up to fifteen horsepower. The switch features a NEMA 4X enclosure suitable for various environmental conditions.

• 2-Position non-fusible design
• Holds a maximum voltage rating of 600 VAC
• Complies with CSA and UL standards

Product Highlights

This switch is ideal for applications requiring high durability and reliability in control systems for machinery and equipment.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• MPN: HBLDS3AC

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Horsepower: 15 hp
• Number of Poles: 3
• Number of Wires: 3
• Temperature Rating: -40 to 67 degrees C
• Frequency Rating: 60 Hz
• Material: Composite
• Dimensions: 8.5 in H x 6 in W x 4.12 in D
• Mounting Type: Foot
• Terminal Type: Screw
• Contact Form: 2-Position
• Actuator Type: Lever
• Enclosure Type: NEMA 4X
• Operating Cycles: 6000
